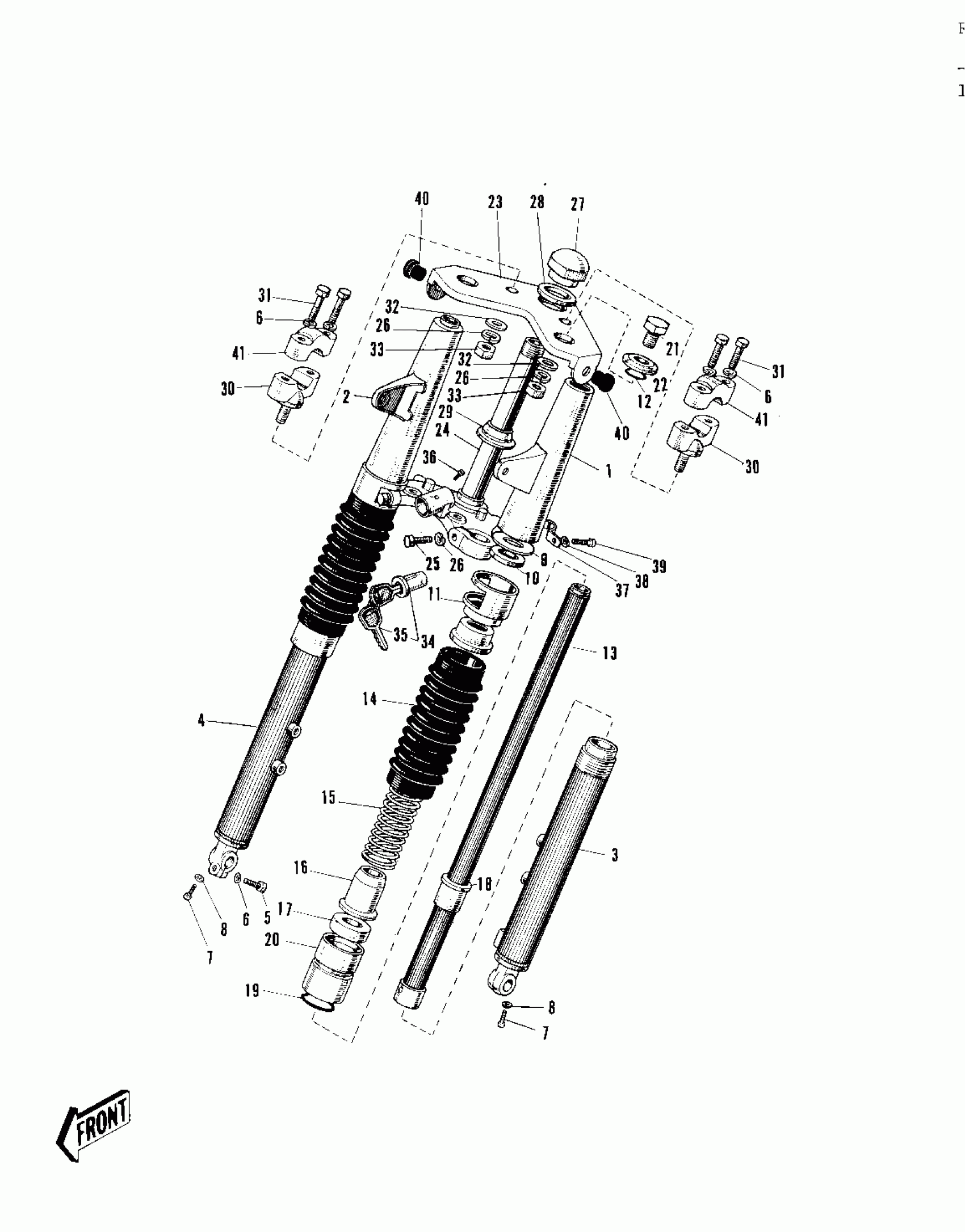

Kawasaki Roadrunner FRONT FORK (~'68 MODEL) Diagram

#

Description
Price

1~28

FRONT FORK ASSY

44001-025

$298.92

1

COVER L.H FORK

44033-011

Unavailable

2

COVER R.H FORK

44034-010

Unavailable

3

TUBE,LH,FORK OUTER

44005-007

$66.24

4

TUBE,RH,FORK OUTER

44006-005

$74.03

5

BOLT-SMALL-UPSET 8X25

115G0825

Unavailable

6

WASHER SPRING 8MM

461F0800

Unavailable

7

SCREW PAN HEAD 4X8

220B0408

Unavailable

7

SCREW PAN HEAD 4X8

220B0408

Unavailable

8

GASKET,FORK DRAIN PLUG

44045-002

$3.95

9

WASHER

44043-009

$0.76

10

GASKET FORK COV GUIDE

44045-007

$0.93

11

GUIDE FORK COVER

44030-001

$6.58

12

GASKET INNER TUBE UPP

44046-002

Unavailable

13

TUBE FORK INNER

44013-008

$73.86

14

COVER FORK SPRING

44027-001

Unavailable

15

SPRING FORK

44026-008

$13.63

16

DUST SHIELD FORK

44010-015

Unavailable

17

OIL SEAL,FORK

44009-021

Unavailable

18

GUIDE FORK INNER TUBE

44015-003

$11.17

19

'O' RING INN TB GUIDE

44046-003

Unavailable

20

NUT FORK OUTER TUBE

44007-004

$18.97

21

BOLT FORK FIT 10MM

44041-003

$1.42

22

WASHER FORK FITTING

44043-006

$1.10

23

HEAD STEERING STEM

44039-009

$61.53

24

STEM STEERING

44037-012

$79.97

25

BOLT-UPSET,10X30

112G1030

Unavailable

26

WASHER SPRING 10MM

461F1000

Unavailable

27

NUT STEERING STEM

44042-001

Unavailable

28

WASHER STEERING STEM

44043-008

$1.81

29

RACE,LOWER BEARING

92047-004

Unavailable

30

HOLDER LOWER HANDLBAR

46010-002

$6.36

31

BOLT 8X38

92001-1405

$12.52

32

WASHER HANDLE HOLDER

92022-038

$0.59

33

NUT-HEX-FINE,10MM

314B1000

Unavailable

34

LOCK ASSY STEERING

27016-009

Unavailable

36

RIVET

92099-001

$3.51

37

CLAMP CABLE

92037-016

Unavailable

38

WASHER SPRING 6MM

461F0600

Unavailable

39

SCREW PAN HEAD 6X12

220B0612

Unavailable

40

PLUG RUBBER

92074-005

Unavailable

41

HOLDER-HANDLE,UPP

46012-004

Unavailable
