Partiron

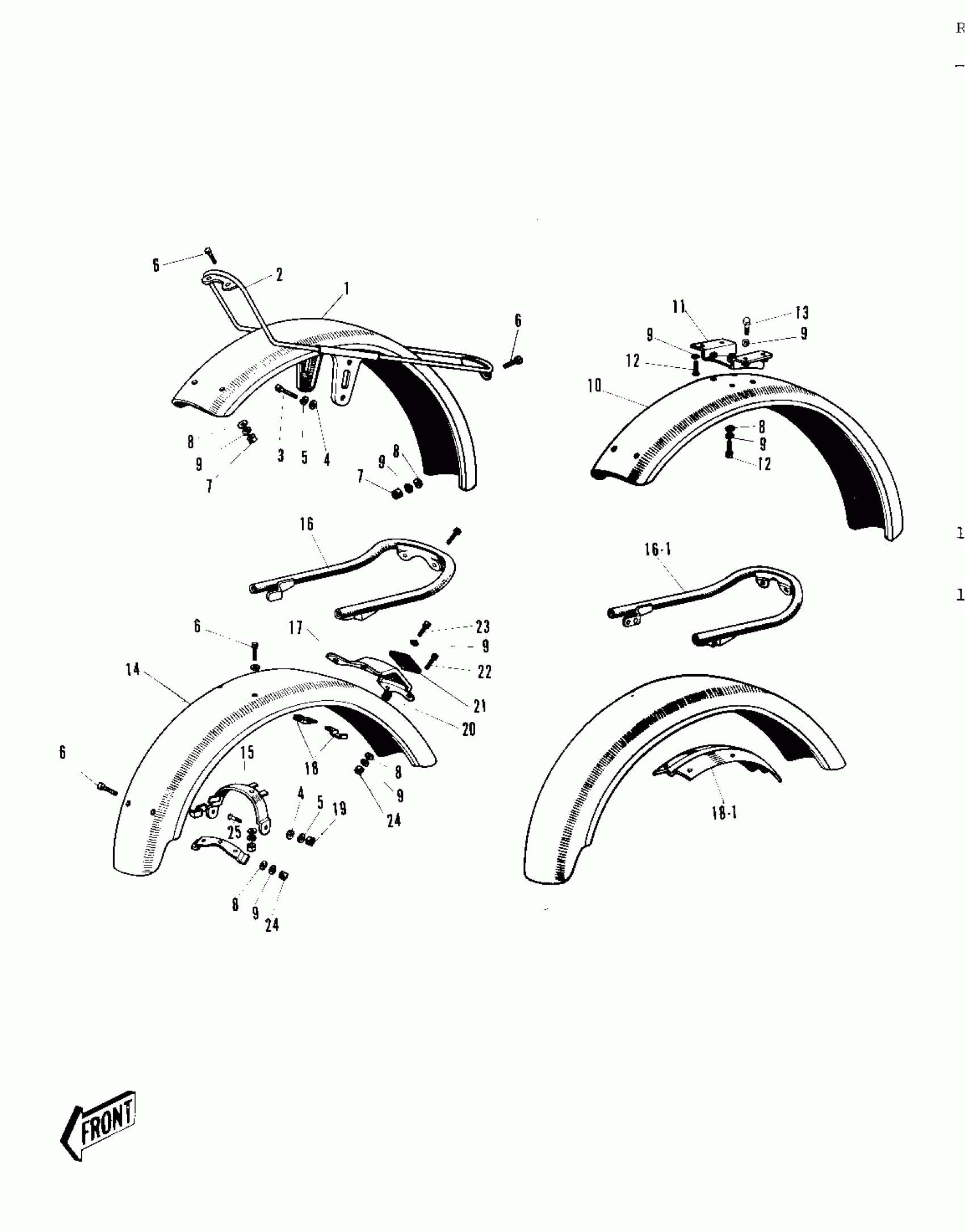

Kawasaki Roadrunner FENDERS Diagram

#

Description
Price

1

FENDER FRONT

35004-015

$41.20

1

UNAVAILABLE IN PRICE BOOK

35004-016

Unavailable

2

STAY FRONT FENDER

35011-004

$26.85

2

STAY FRONT FENDER

35011-005

Unavailable

3

BOLT SMALL

114G0812

Unavailable

4

WASHER PLAIN 8MM

410B0800

Unavailable

5

WASHER SPRING 8MM

461F0800

Unavailable

6

SCREW PAN HEAD 6X10

220B0610

Unavailable

7

NUT 6MM

312B0600

Unavailable

8

WASHER PLAIN 6MM

411B0600

Unavailable

9

WASHER SPRING 6MM

461F0600

Unavailable

12

BOLT-UPSET,6X12

112G0612

Unavailable

14

FENDER-RR

35022-016

$57.78

14

FENDER-RR

35022-035

$63.53

15

BRACKET REAR FENDER

35025-001

$4.02

15

BRACKET REAR FENDER

35025-008

$5.22

16

STAY REAR FENDER

35032-001

Unavailable

16-1

STAY REAR FENDER

35032-002

$24.10

17

BRACKET TAIL LAMP

35031-001

Unavailable

18

CLIP WIRING HARNESS

35024-002

Unavailable

18-1

GUSSET REAR FENDER

35034-006

$11.24

19

NUT FUEL TANK FRONT

92020-007

Unavailable

20

GROMMET,10MM

92071-019

$2.97

21

DAMPER TAIL LAMP SHCK

35039-002

Unavailable

21

DAMPER-TAIL LAMP SHCK

35039-005

Unavailable

22

SCREW PAN HEAD 6X12

220E0612

$3.51

23

SCREW PAN HEAD 6X16

220E0616

Unavailable

24

NUT 6MM

311B0600

Unavailable

25

BOLT,FLANGED,8X35

92001-1577

Unavailable
