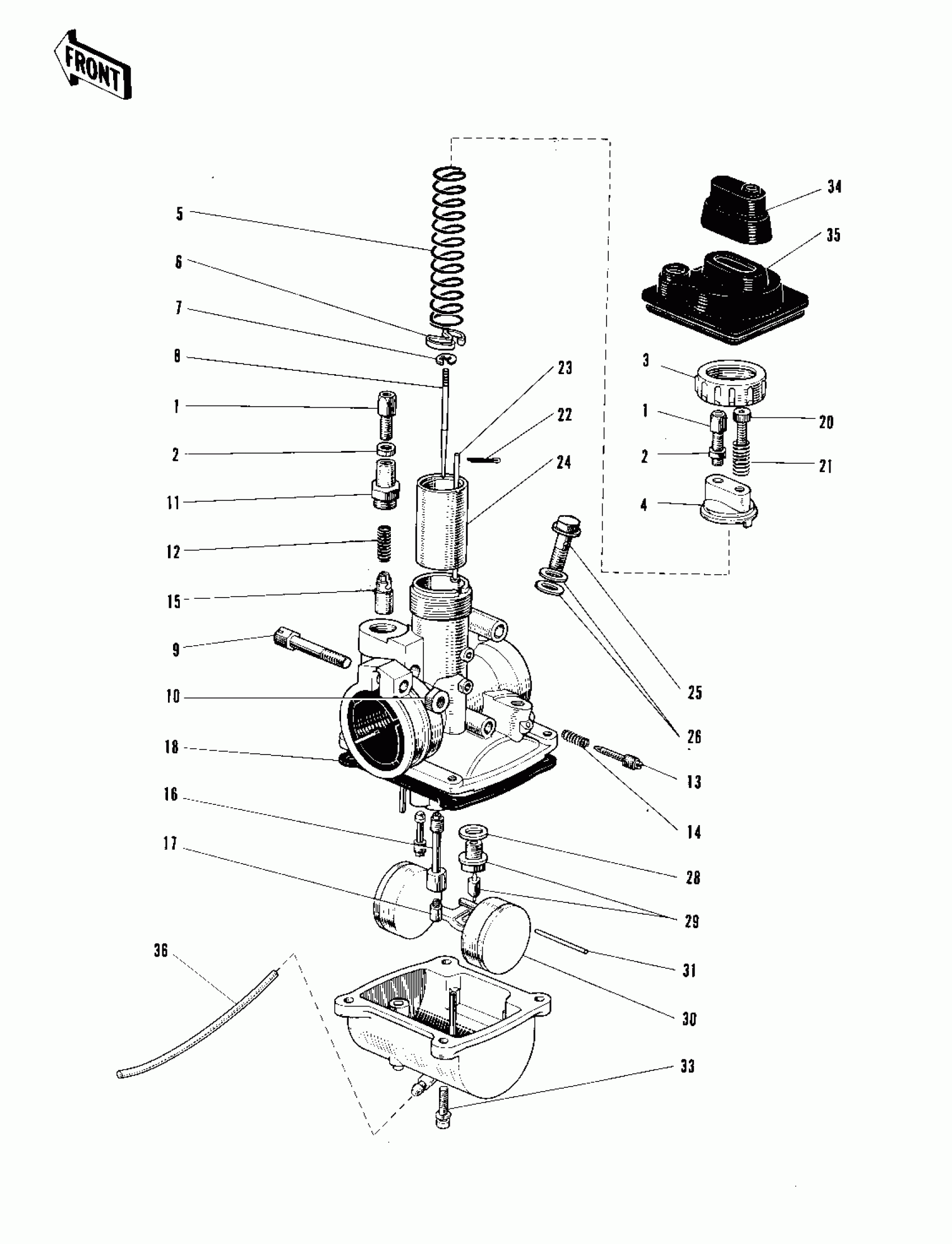

Kawasaki Roadrunner CARBURETOR Diagram

#

Description
Price

1~33

CARBURETOR ASSY

16001-025

Unavailable

1~33

CARBURETOR ASSY

16001-024

$76.90

1

CABLE ADJUSTER

16002-002

$9.24

2

NUT,CABLE ADJUST LOCK

16003-004

$7.53

3

CAP MIXING CHAMBER

16004-001

Unavailable

4

TOP MIXING CHAMBER

16005-004

Unavailable

5

SPRING THROTTLE VALVE

16006-003

$2.31

6

SPRING SEAT THRTL VLV

16007-003

$2.63

7

CLAMP,E-TYPE

16008-010

$7.02

8

JET NEEDLE 4J-9

16009-009

Unavailable

8

JET NEEDLE 4H7

16009-008

$5.78

9

SCREW,CLAMP

16010-004

$4.90

10

NUT 6MM

311B0600

Unavailable

10

NUT 6MM

311B0600

Unavailable

11

CAP STARTER PLUNGER

16012-004

Unavailable

12

SPRING-PLUNGER

16013-003

$4.18

13

SCREW-PILOT AIR

16014-002

Unavailable

14

SPRING,PILOT AIR SCREW

16022-007

$7.97

15

PLUNGER,STARTER

16016-002

$33.31

16

NEEDLE JET E-4

16017-025

Unavailable

16

NEEDLE JET E-2

16017-024

$8.78

17

JET-MAIN NO 160A

92063-017

Unavailable

17

JET-MAIN NO 120A

92063-013

Unavailable

18

GASKET FLOAT CHAMBER

16019-003

Unavailable

20

SCREW-THROTTLE STOP

16021-002

$17.49

21

SPRING,THROTTLE STOP SCREW

16022-005

$8.66

22

UNAVAILABLE IN PRICE BOOK

16023-001

$1.66

23

ROD-THROTTLE VLV STOP

16024-010

$3.53

24

VALVE THROTTLE CA2.5

16025-006

$15.05

25

BOLT BANJO

92001-011

Unavailable

26

GASKET 8MM

751P0800

Unavailable

28

GASKET,FLOAT VALVE SEAT

16029-002

$3.98

29

FLOAT VALVE ASSY

16030-002

Unavailable

29

FLOAT VALVE ASSY

16030-009

Unavailable

30

FLOAT

16031-003

Unavailable

31

PIN,FLOAT

16032-003

$5.95

33

SCREW FLOAT CHAMBER

16033-002

$0.76

33

SCREW FLOAT CHAMBER

16033-008

Unavailable

33

SCREW-FLOAT CHAMBER

16033-012

$1.68

34

GROMMET CARB CAP

14038-001

Unavailable

35

CAP CARBURETOR RUBBER

14038-003

Unavailable

36

PIPE FUEL OVERFLOW

92059-005

$0.29
