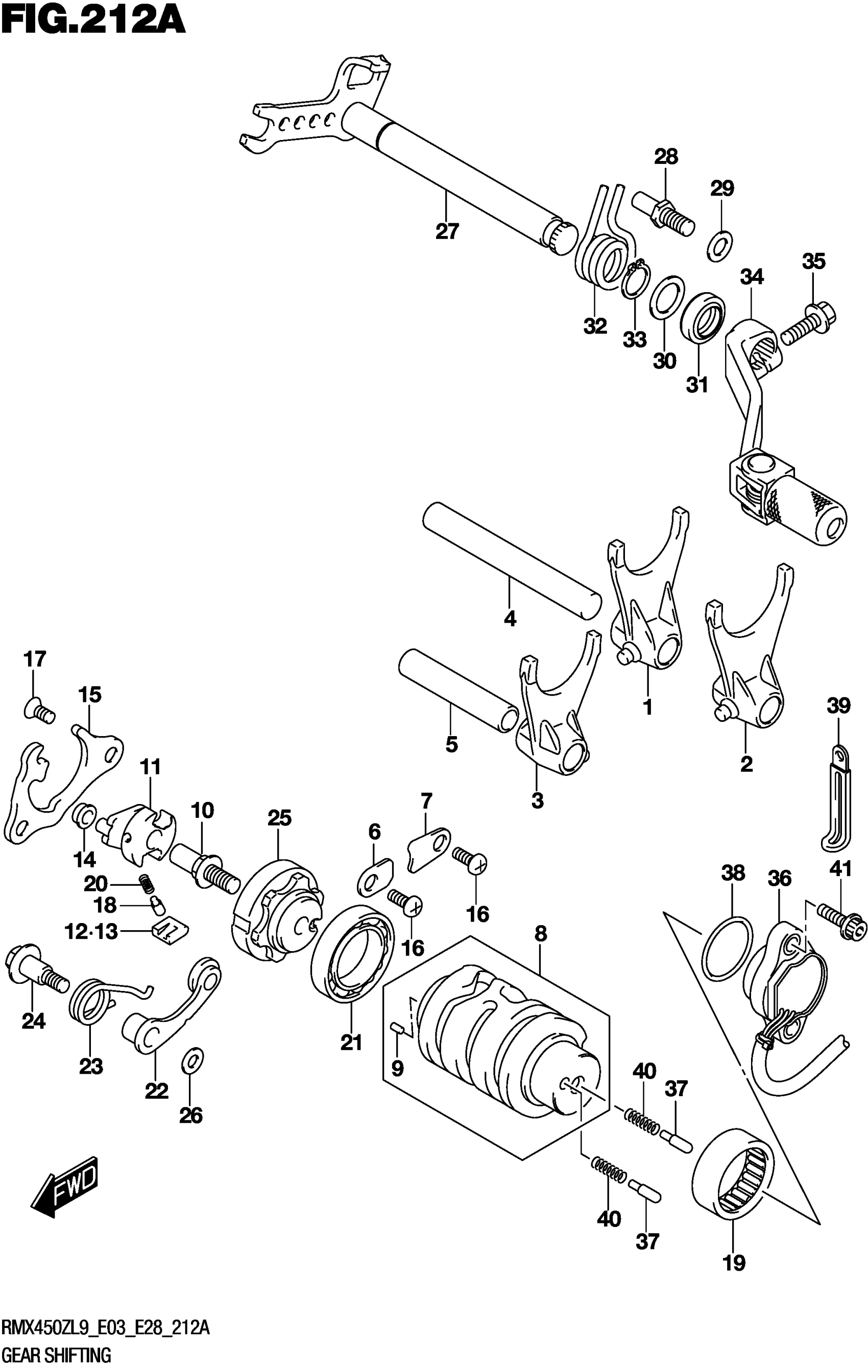

Suzuki RMX450ZL9 (2019) GEAR SHIFTING Diagram

#

Description
Price

1

FORK,GEAR SHIFT NO.1

25211-28H00

$97.63

2

FORK,GEAR SHIFT NO.2

25221-28H00

$100.95

3

FORK,GEAR SHIFT NO.3

25231-28H00

$99.52

4

SHAFT

25411-28H00

Unavailable

5

SHAFT

25421-28H00

Unavailable

6

RETAINER

24741-21A00

$2.80

7

RETAINER BEARING

24742-18A00

$4.92

8

CAM

25310-28H00

$220.83

9

PIN (4X13.8)

04221-04089

$1.10

10

PIN,GEAR SHIFT CAM

25313-37F00

$16.67

11

SHIFTER,GEAR SHIFT CAM

25322-28H00

$73.01

12

PAWL, GEAR SHIFT NO.1

25323-34201

$6.61

13

PAWL, GEAR SHIFT NO.2

25324-34201

$6.80

14

ROLLER,GEAR SHIFT CAM SHIFTER

25325-28H00

$14.00

15

LIFTER,GEAR SHIFT PAWL

25331-28H00

$26.50

16

SCREW (6X12)

09125-06122

$2.54

17

SCREW (6X12)

09126-06011

$2.01

18

PIN (5X8)

09209-05023

$2.73

19

BEARING (25X32X12) | LH

09263-25018

$19.30

20

SPRING

09440-04003

$1.48

21

BEARING | RH

08140-68050

$65.57

22

STOPPER

25350-28H00

$24.18

23

SPRING

25355-28H00

$6.08

24

BOLT,SHIFT CAM STOPPER

25357-28H00

$8.87

25

PLATE

25381-10H00

$86.52

26

WASHER

08211-06121

$1.56

27

SHAFT

25510-02J00

$108.68

28

STOPPER,GEAR SHIFT ARM

25671-10H00

$6.75

29

SHIM (8.8X14X1)

09181-08139

$1.92

30

SHIM (14X20X1)

09181-14139

$2.66

31

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.04

32

SPRING

09444-20011

$7.75

33

CIRCLIP

08331-3114A

$1.89

34

LEVER ASSY

25600-02J00

$171.90

35

BOLT

01547-0620A

$2.01

36

BASE ASSY,GEAR SHIFT TERM

37730-49H00

$140.85

37

PIN (5X15.5)

09209-05011

$2.02

38

O-RING (D:2.4,ID:26.2)

09280-26005

$2.31

39

CLAMP (L:45)

09404-06429

$1.82

40

SPRING

09440-04010

$1.52

41

BOLT

07120-0516A

$1.72
