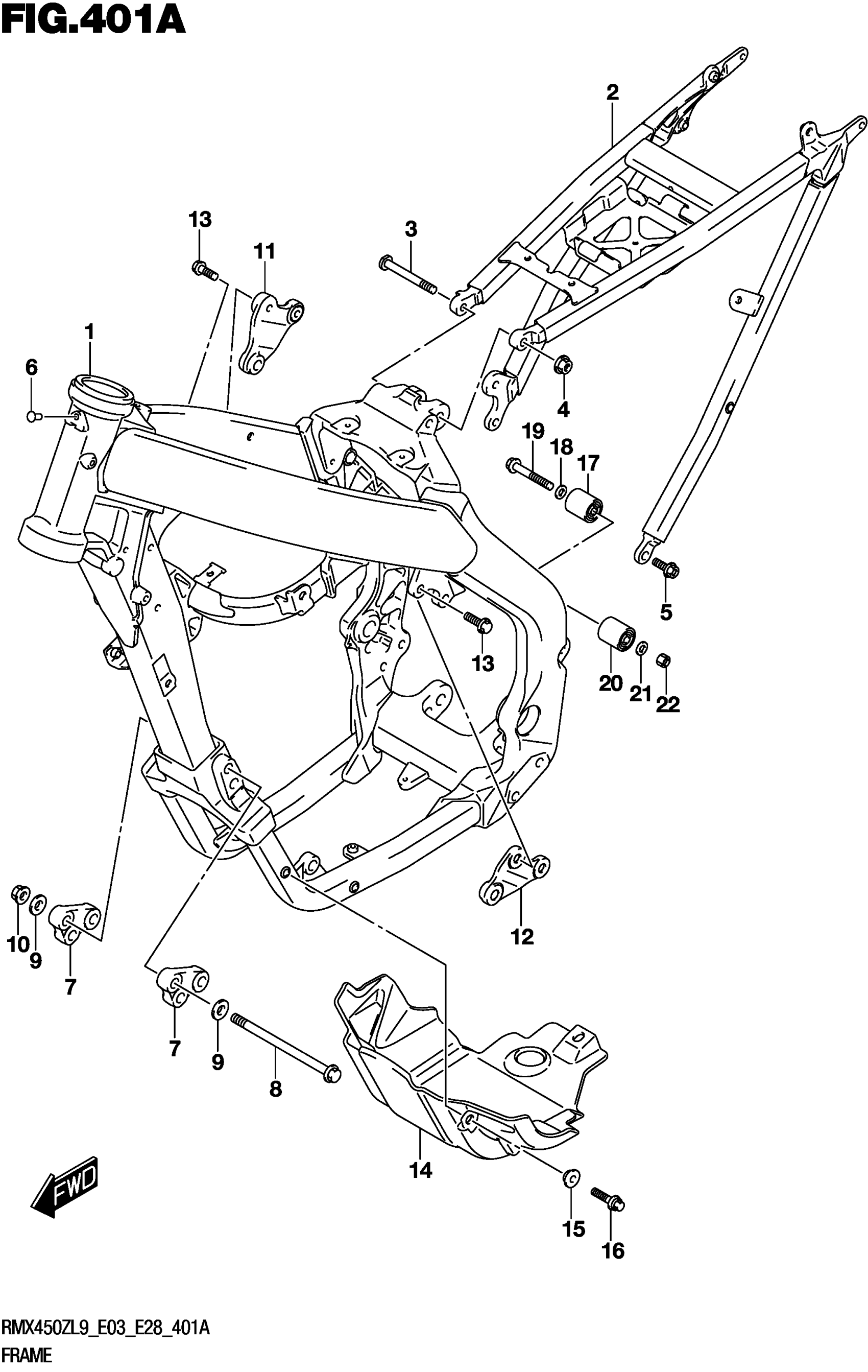

Suzuki RMX450ZL9 (2019) FRAME Diagram

#

Description
Price

1

FRAME

41100-02J00

$5,756.88

2

RAIL

41200-02J00

Unavailable

3

BOLT

41311-28H20

$21.57

4

NUT

08319-3108A

$2.31

5

BOLT (8X20) | LOWER

09103-08426

$5.87

6

CAP (OD:10)

09250-05009

$2.10

7

BRACKET

41991-02J00

Unavailable

8

BOLT (10X120) | FRONT

09103-10388

$5.44

9

WASHER (10.5X22X2.3)

09160-10039

$2.24

10

NUT (M10)

09159-10115

$3.21

11

BRACKET

41993-28H10

Unavailable

12

BRACKET

41994-02J10

Unavailable

13

BOLT (8X21) | UPPER

09103-08404

$4.03

14

PROTECTOR

42511-02J00

$61.30

15

WASHER

42514-02J00

$7.48

16

BOLT (6X25)

09116-06177

$3.05

17

ROLLER,CHAIN

43910-37F00

$77.40

18

SHIM (8X16X1)

09181-08167

$1.98

19

BOLT (8X45)

09103-08207

$2.59

20

ROLLER

43910-35G00

$73.57

21

SHIM (8X12X1)

09181-08111

$1.95

22

NUT

08319-2108A

$2.13
