2018 Suzuki RMX450ZL8 Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 2018 Suzuki RMX450ZL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

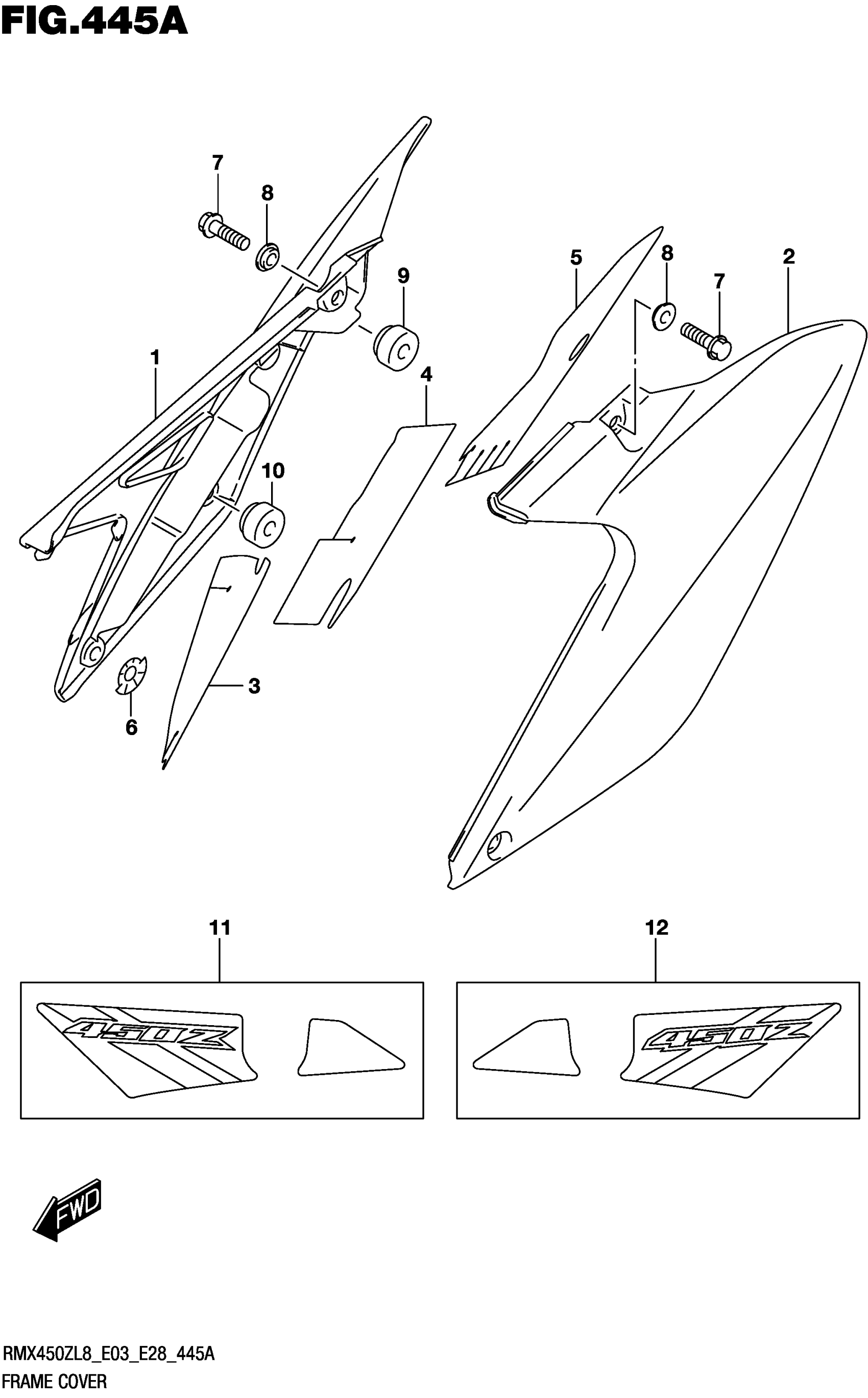

2018 Suzuki RMX450ZL8 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER

47111-02J00-30H

1
Out of stock

2

COVER

47211-02J00-30H

1
Out of stock

3

SHIELD

47166-02J00

1
Out of stock

4

SHIELD

47167-02J00

1
Out of stock

5

SHIELD

47168-02J00

1
Out of stock

6

SHIELD

47169-02J00

—
Out of stock

7

BOLT

01547-0620A

4
Out of stock

8

WASHER

47191-02J00

4
Out of stock

9

CUSHION (9X26X14)

47161-08G00

1
Out of stock

10

CUSHION | RH

09321-10040

1
Out of stock

11

TAPE

68135-02J10-BLP

—
Out of stock

12

TAPE

68145-02J10-BLP

—
Out of stock
