2017 Suzuki RMX450ZL7 Rear Caliper Diagram

← All diagrams

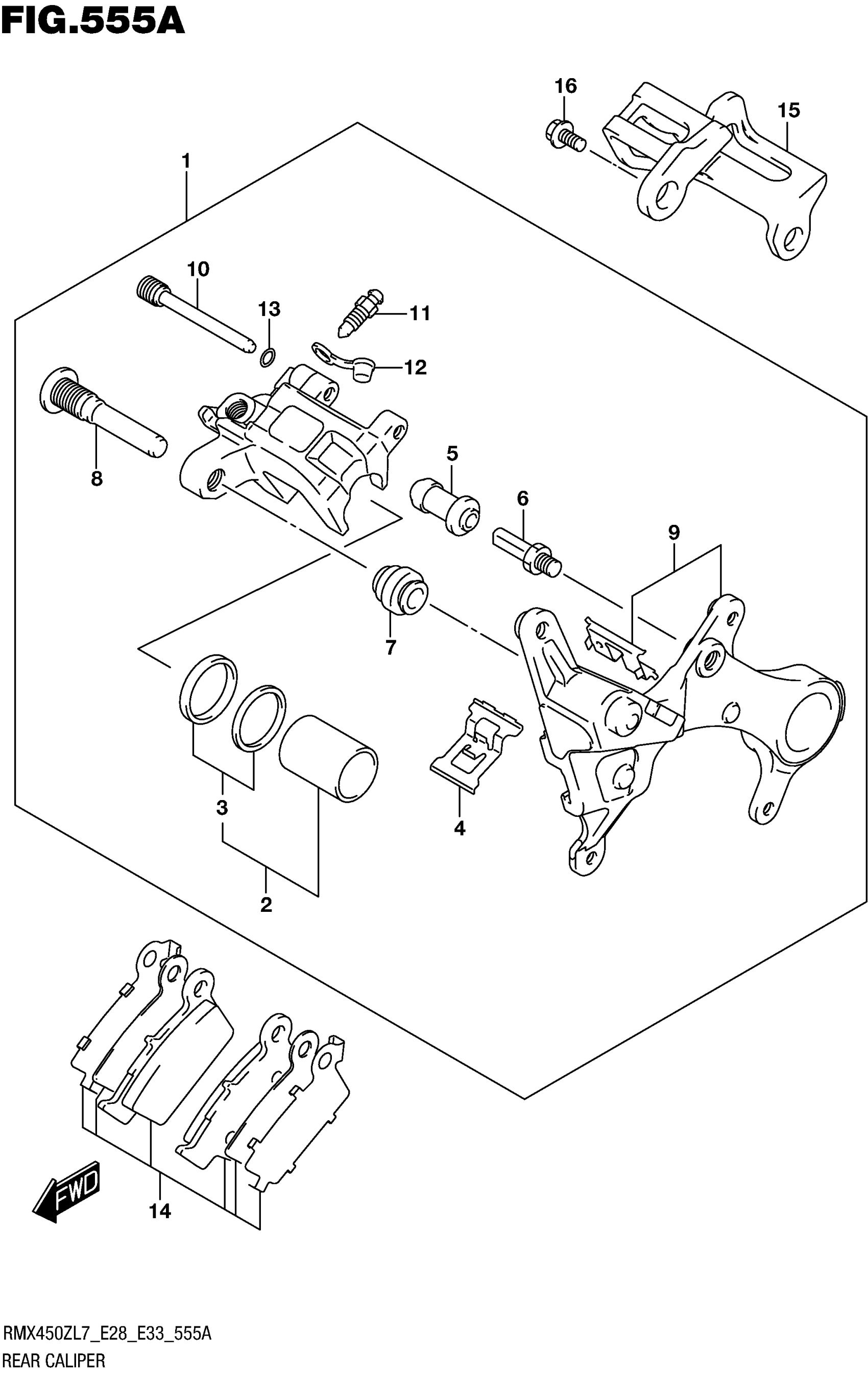

Find the part on the Rear Caliper diagram for your 2017 Suzuki RMX450ZL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki RMX450ZL7 Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY,RR

69100-28H01-999

1
Out of stock

2

.PISTON SET

69100-14820

1
Out of stock

3

..SEAL SET, PISTON

69100-21840

1
Out of stock

4

.SPRING

69315-35G00

1
Out of stock

5

.BOOT

59386-13A00

1
Out of stock

6

.PIN

59382-14500

1
Out of stock

7

.BOOT

59303-14500

1
Out of stock

8

.PIN

59305-36E00

1
Out of stock

9

.BRACKET,RR CALIPER

69350-28H00

1
Out of stock

10

.PIN

69345-37F00

1
Out of stock

11

.BLEEDER

59121-01A00

1
Out of stock

12

.CAP

59122-01A00

1
Out of stock

13

.RING, STOPPER

59145-37F00

1
Out of stock

14

PAD SET

69100-28820

1
Out of stock

15

GUARD, REAR CALIPER

69725-37F11

1
Out of stock

16

BOLT (6X12)

09116-06197

2
Out of stock
