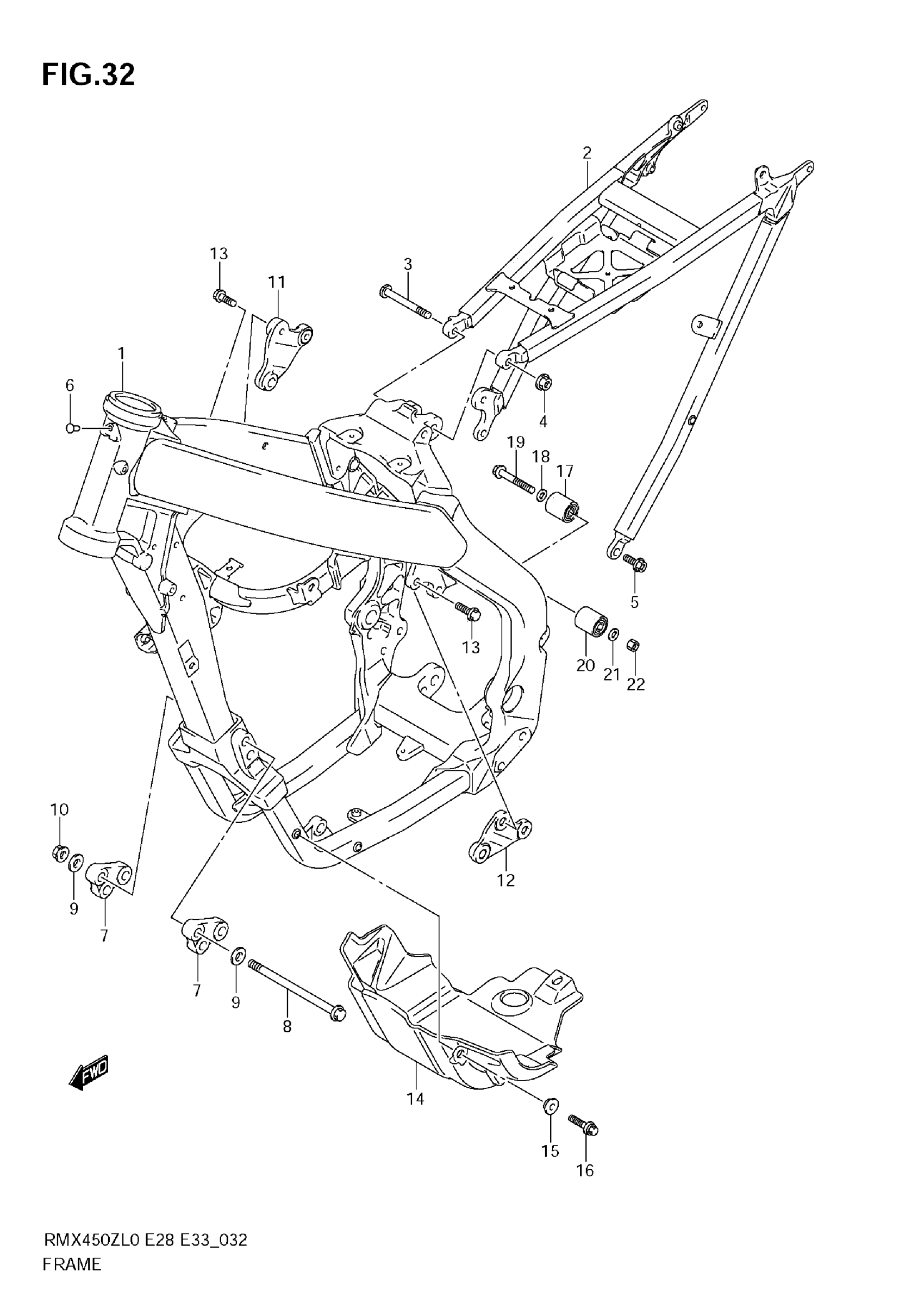

Suzuki RMX450ZL0 (2010) FRAME Diagram

#

Description
Price

1

FRAME

41100-02J00

$5,756.88

2

RAIL, SEAT

41200-02J00

Unavailable

3

BOLT, UPPER

41311-28H20

$21.57

4

NUT

08319-3108A

$2.31

5

BOLT, LOWER

09103-08426

$5.87

6

CAP, HEAD PLUG

09250-05009

$2.10

7

BRACKET, ENGINE MOUNT FRONT

41991-02J00

Unavailable

8

BOLT, FRONT

09103-10388

$5.44

9

WASHER

09160-10039

$2.24

10

NUT

09159-10115

$3.21

11

BRACKET, ENGINE MOUNT UPPER RH

41993-28H10

Unavailable

12

BRACKET, ENGINE MOUNT UPPER LH

41994-02J10

Unavailable

13

BOLT, UPPER

09103-08404

$4.03

14

PROTECTOR, FRONT

42511-02J00

$61.30

15

WASHER

42514-02J00

$7.48

16

BOLT

09116-06177

$3.05

17

ROLLER, CHAIN UPPER

43910-37F00

$77.40

18

WASHER, UPPER

09181-08167

$1.98

19

BOLT, UPPER

09103-08207

$2.59

20

ROLLER, CHAIN LOWER

43910-35G00

$73.57

21

WASHER, LOWER

09181-08111

$1.95

22

NUT, LOWER

08319-2108A

$2.13
