2010 Suzuki RMX450ZL0 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2010 Suzuki RMX450ZL0, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

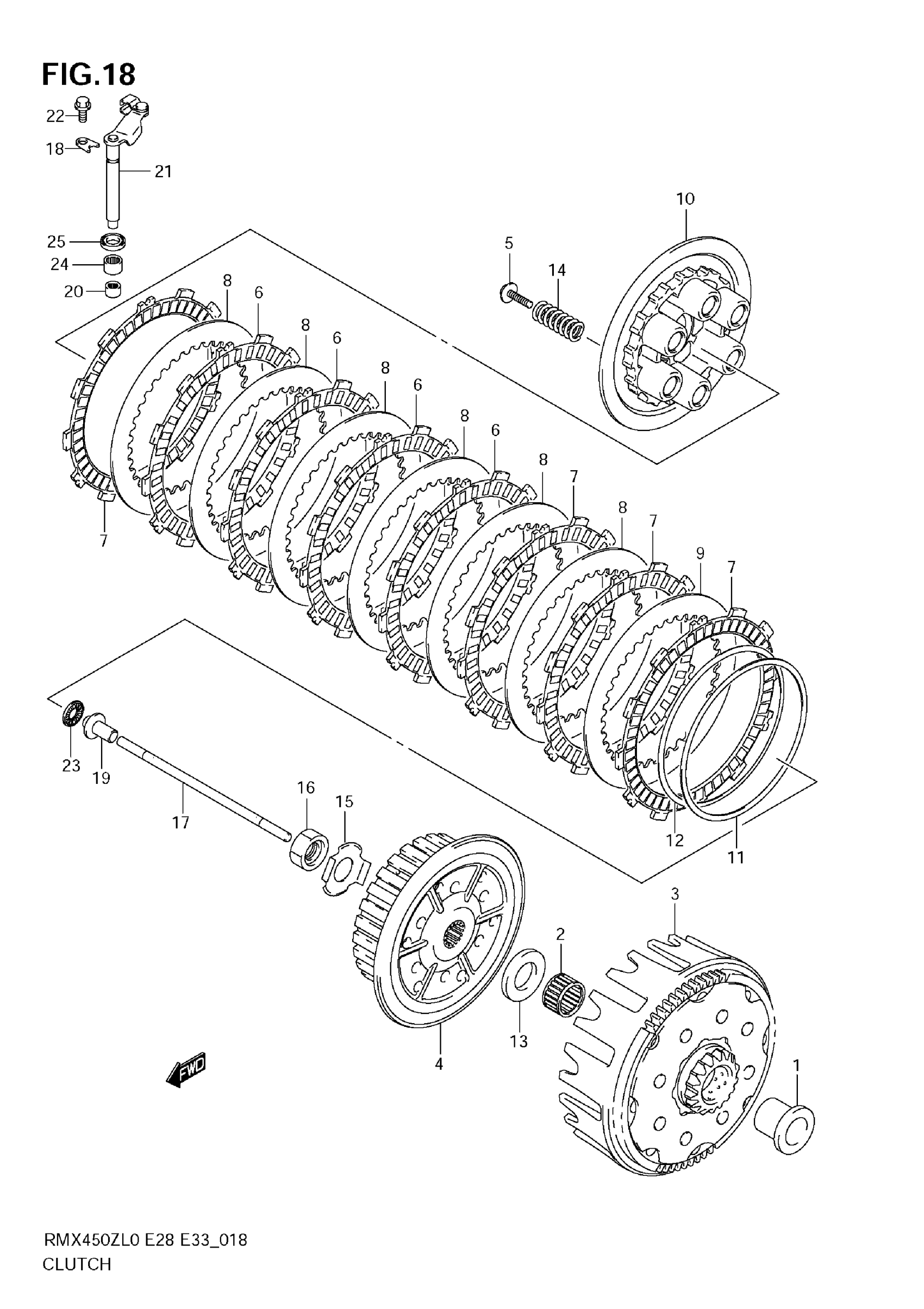

2010 Suzuki RMX450ZL0 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$58.95

In stock

2

1

$32.12

In stock

3

GEAR ASSY, PRIMARY DRIVEN | NT:16/63

21200-02J00

1
Out of stock

4

HUB, CLUTCH SLEEVE

21411-35G11

1

$117.42

In stock

5

6

$3.13

In stock

6

4

$34.93

In stock

7

4

$13.87

In stock

8

6

$10.14

In stock

9

1

$14.00

In stock

10

DISC,CLUTCH PRESSURE

21462-28H00

1

$69.80

In stock

11

SEAT,WAVE WASHER

21471-28H00

1

$19.60

In stock

12

1

$24.00

In stock

13

1

$15.50

In stock

14

SPRING, CLUTCH

09440-18044

6

$7.30

In stock

15

1

$4.70

In stock

16

1

$15.33

In stock

17

ROD,CLUTCH PUSH

23110-28H00

1

$28.15

In stock

18

1

$5.18

In stock

19

PIECE,CLUTCH PUSH

23121-37F00

1

$20.73

In stock

20

1

$11.92

In stock

21

CAMSHAFT, CLUTCH RELEASE

23200-02J00

1
Out of stock

22

1

$3.30

In stock

23

1

$9.87

In stock

24

1

$13.10

In stock

25

SEAL, CL RELEASE CAMSHAFT OIL | 10X17X5

09285-10004

1
Out of stock
