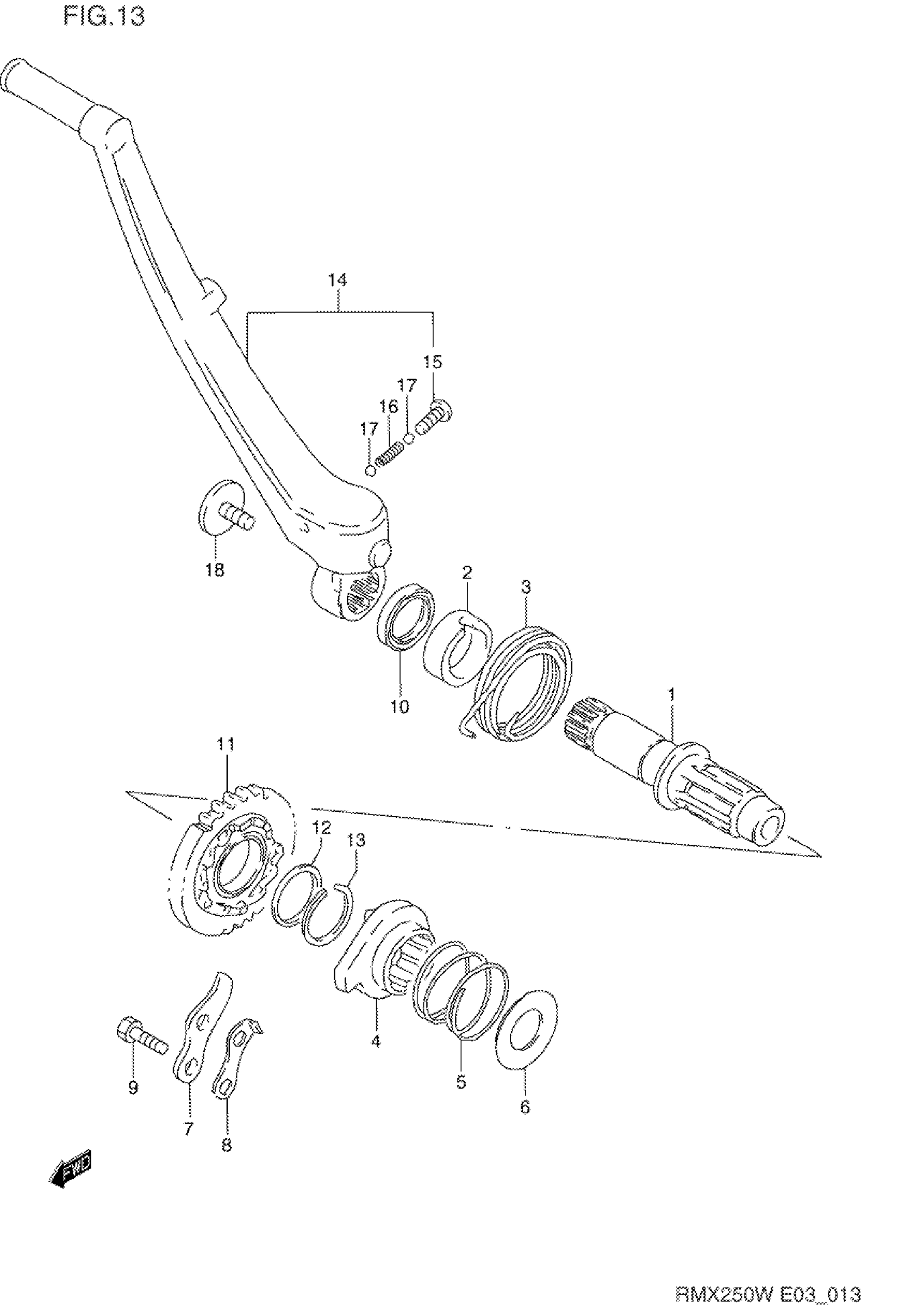

Suzuki RMX250W (1998) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER This part replaces 26211-05D02.

26211-05D03

Unavailable

2

GUIDE, KICK STARTER This part replaces 26221-01B00.

26221-01B01

$4.92

3

SPRING

09448-48011

$13.63

4

STARTER, KICK

26231-22A10

$72.10

5

SPRING

09440-32002

$2.10

6

PLATE

08211-17341

$2.53

7

GUIDE, KICK STARTER

26232-40200

$7.98

8

STOPPER, KICK STARTER | MODEL V This part replaces 26233-40200.

26233-40201

$6.23

8

STOPPER, KICK STARTER | MODEL W

26233-40201

$6.23

9

BOLT This part replaces 01500-06123.

01500-0612A

$1.80

10

OIL SEAL (20X27X5)

09283-20031

$4.73

11

GEAR, KICK DRIVE (NT:30)

26240-28C00

Unavailable

12

WASHER (22X28X1.0)

09181-22139

$3.78

13

CIRCLIP

09380-22006

$2.80

14

LEVER ASSY,KICK | Includes Item(s) 15 - 17 This part replaces 26300-28E20.

26300-28E21

Unavailable

15

SCREW, KICK STARTER

09127-06016

$2.80

16

SPRING, KICK STARTER

09440-05031

$1.45

17

BALL

06111-07004

$1.22

18

BOLT

09106-08098

$4.26
