1998 Suzuki RMX250W Fuel Tank Diagram

← All diagrams

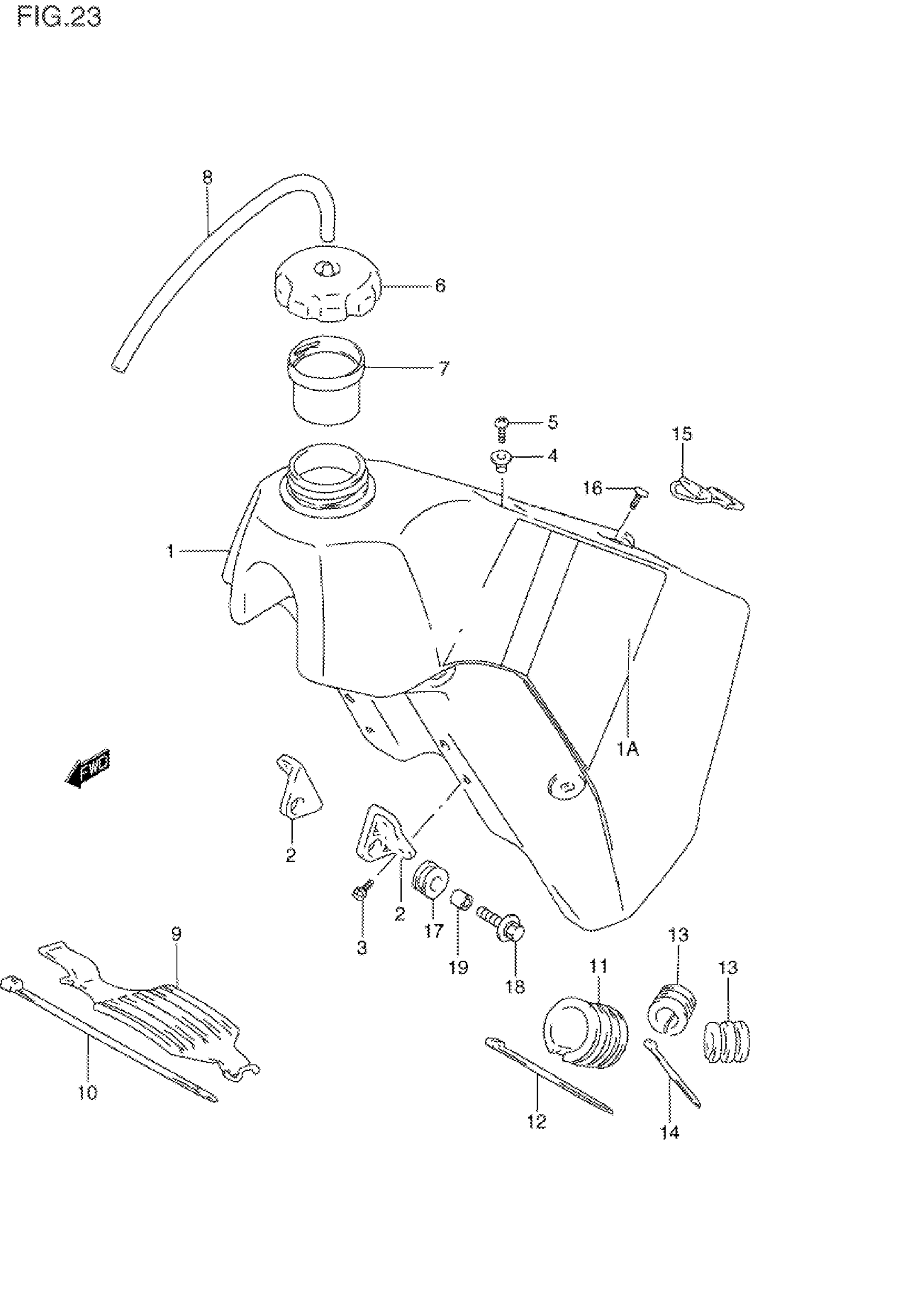

Find the part on the Fuel Tank diagram for your 1998 Suzuki RMX250W, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Suzuki RMX250W Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL (YELLOW)

44110-05D03-25Y

1
Out of stock

1A

TAPE SET, FUEL TANK | MODEL W

68110-05D00-J5C

1
Out of stock

2

BRACKET, FRONT

44131-27C01

2

$16.77

In stock

3

BOLT, FRONT

01547-06127

4
Out of stock

4

HOOK, SEAT FR

44132-27C01

1

$19.39

In stock

5

SCREW, HOOK

02142-06207

1
Out of stock

6

CAP, FUEL TANK

44200-19A01

1

$48.05

In stock

7

TUBE, FILLER INLET

44199-19A00

1

$6.44

In stock

8

1

$9.88

In stock

9

CUSHION, UPPER NO.1

44541-26C00

1

$20.33

In stock

10

CLAMP

09407-25402

1

$4.50

In stock

11

CUSHION, UPPER REAR

44542-26C00

2

$10.55

In stock

12

CLAMP, UPPER REAR CUSHION

09407-30402

1
Out of stock

13

CUSHION, UPPER NO.2

44541-26C00

1

$20.33

In stock

14

CLAMP

09407-14407

2
Out of stock

15

BAND, REAR

44560-27C00

1

$7.67

In stock

16

SCREW This part replaces 02142-06163.

02142-0616A

1
Out of stock

17

CUSHION

09320-12030

2

$2.76

In stock

18

BOLT

09118-08132

2
Out of stock

19

SPACER

09180-08191

2

$2.78

In stock
