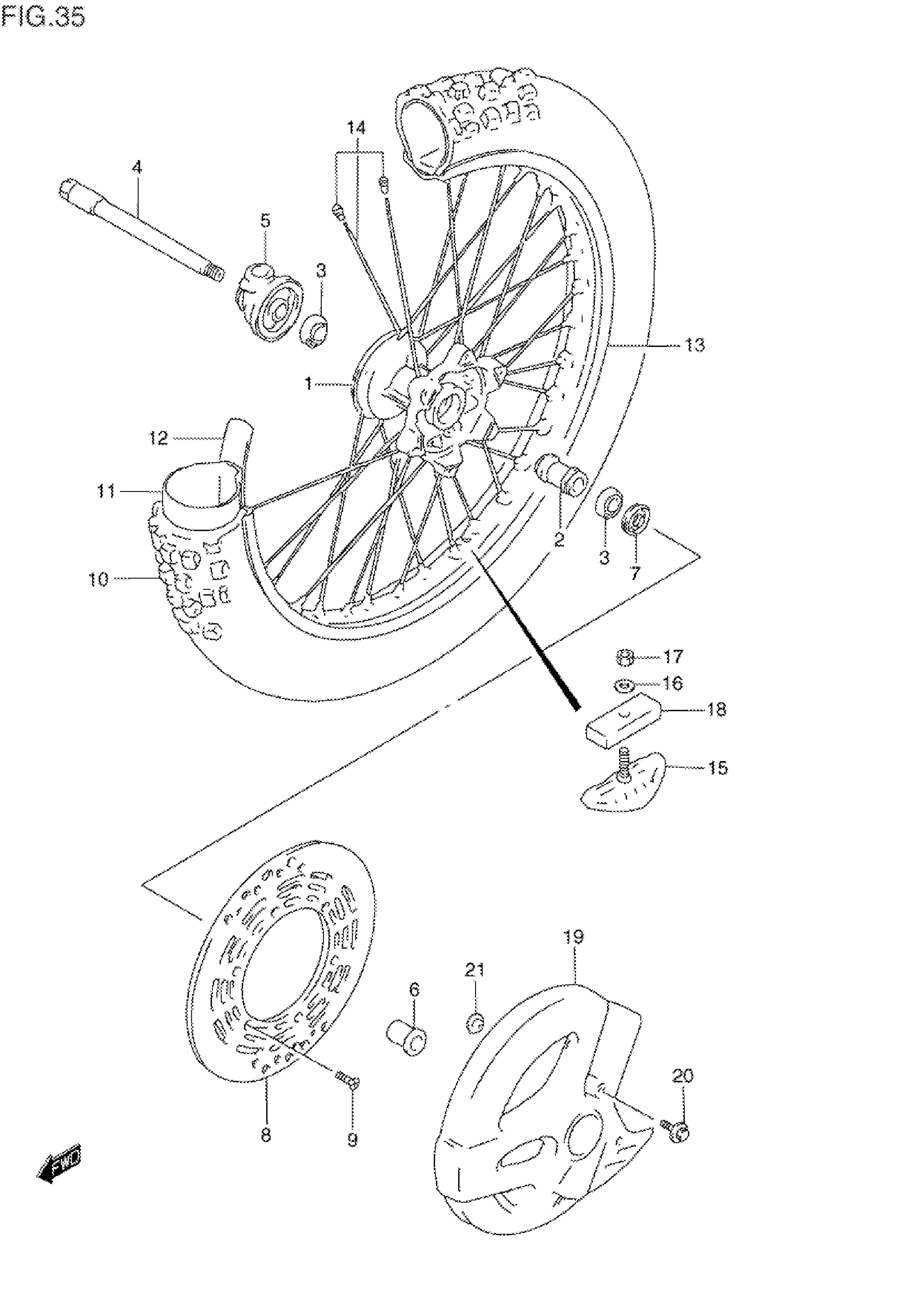

Suzuki RMX250W (1998) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT WHEEL

54111-05D00

Unavailable

2

SPACER, FRONT HUB

54730-01B00

$60.85

3

BEARING

08123-60037

$19.92

4

AXLE, FRONT

54711-05D01

$110.18

5

BOX ASSY,SPEEDOMETER GEAR This part replaces 54600-05D00.

54600-05D01

$139.57

6

SPACER, AXLE, LH

54751-05D00

$22.07

7

OIL SEAL (23X35X6)

09284-23001

$7.33

8

DISC, FRONT BRAKE

59221-28C00

Unavailable

9

SCREW, SHIFT PAWL LIFTER This part replaces 09120-06011.

09120-06014

$2.43

10

TIRE, FRONT (80/100-21)

55110-28C21

Unavailable

11

TIRE, FRONT This part replaces 55200-16510.

55200-16511

$34.58

12

PROTECTOR, INNER TUBE

55261-14540

$3.61

13

RIM, FRONT WHEEL (1.60X21) This part replaces 55311-27C00.

55311-28C01

Unavailable

14

SPOKE SET, FRONT WHEEL

55320-28E00

$152.52

15

STOPPER, BEAD

65270-14300

$59.52

16

WASHER This part replaces 08322-01083.

08322-0108A

$2.18

17

NUT This part replaces 08310-00083.

08310-0008A

$1.86

18

CUSHION, BEAD STOPPER

65271-27C00

$8.37

19

NO DESCRIPTION AVAILABLE | MODEL V This part replaces 59231-36E11-25Y.

59200-36E11-25Y

Unavailable

19

COVER SET,FRONT | MODEL W This part replaces 59231-36E11-1KY.

59200-36E11-1KY

Unavailable

20

BOLT (6X16)

09116-06170

$2.50

21

WASHER (6.3X16X1) This part replaces 09169-06054.

09169-06053

$1.10
