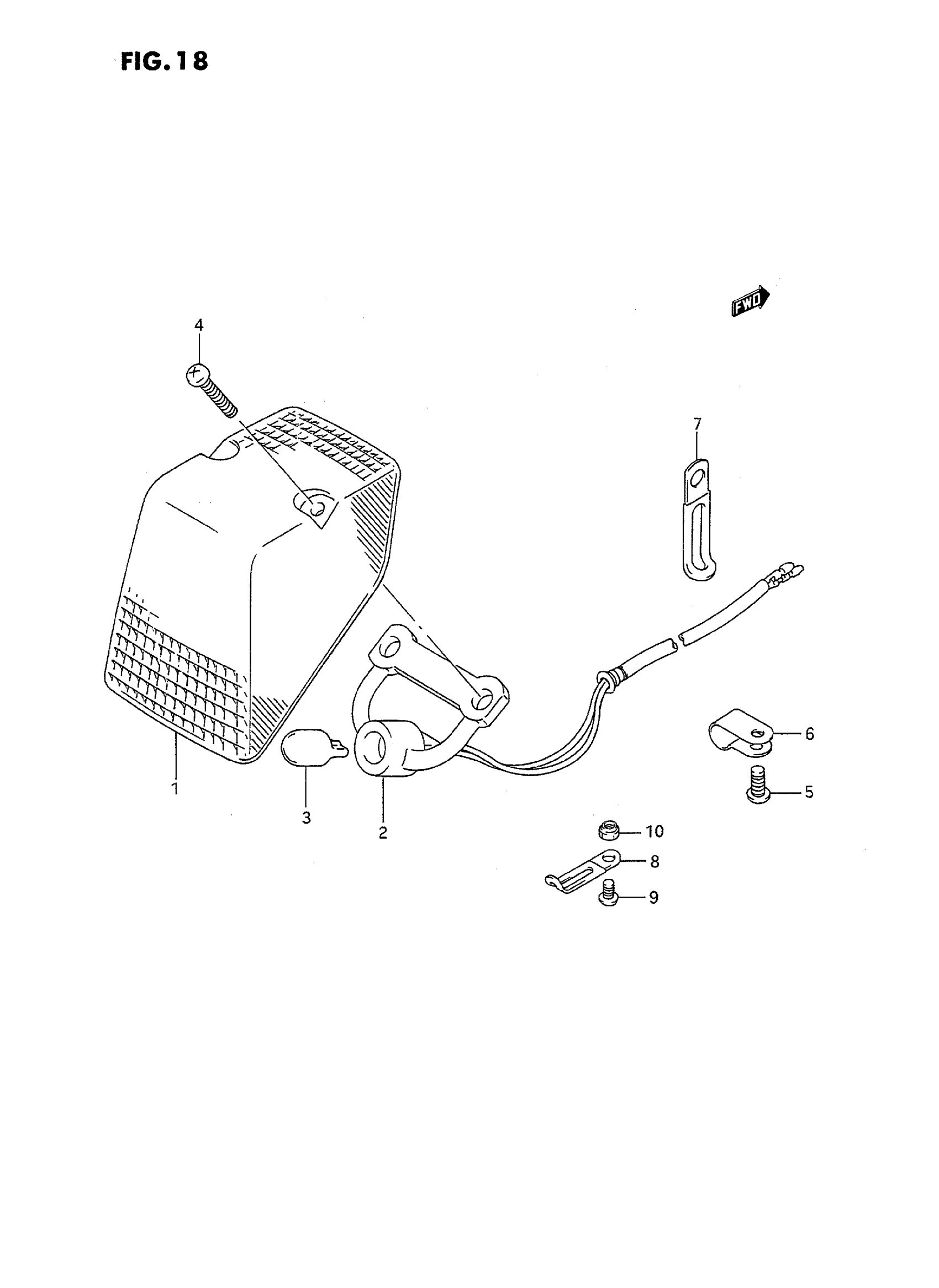

Suzuki RMX250T (1996) TAIL LAMP Diagram

#

Description
Price

1

LENS, TAIL LAMP

35712-03D00

$25.08

2

SOCKET | Includes Item(s) 3 - 3

35718-05D00

Unavailable

3

.BULB (12V5W) | MODEL K This part replaces 09471-12076.

09471-12216

$4.84

3

.BULB (12V5W) | MODEL L/M/N/P/R/S/T This part replaces 09471-12081.

09471-12216

$4.84

4

SCREW | MODEL K/L/M/N/P/R This part replaces 03511-04206.

03511-0420B

$2.44

4

SCREW | MODEL S/T This part replaces 03511-04203.

03511-0420B

$2.44

5

SCREW | MODEL K/L/M/N/P/R This part replaces 03511-04126.

03511-0412A

$0.49

5

SCREW | MODEL S/T This part replaces 03511-04123.

03511-0412A

$0.49

6

CLAMP

09403-06408

$3.37

7

CLAMP

09404-08420

$2.90

7

CLAMP (L:45) This part replaces 09404-08417.

09404-08211

$2.43

8

CLAMP (L:50)

09404-06429

$1.82

9

STOPPER, CL RLSE CAM SHAFT | MODEL K/L/M/N/P/R This part replaces 02142-06106.

02142-0610A

$1.38

9

STOPPER, CL RLSE CAM SHAFT | MODEL S/T This part replaces 02142-06103.

02142-0610A

$1.38

10

.NUT | MODEL K/L/M/N/P/R This part replaces 08319-21068.

08319-2106A

$1.89

10

.NUT | MODEL S/T This part replaces 08319-21066.

08319-2106A

$1.89
