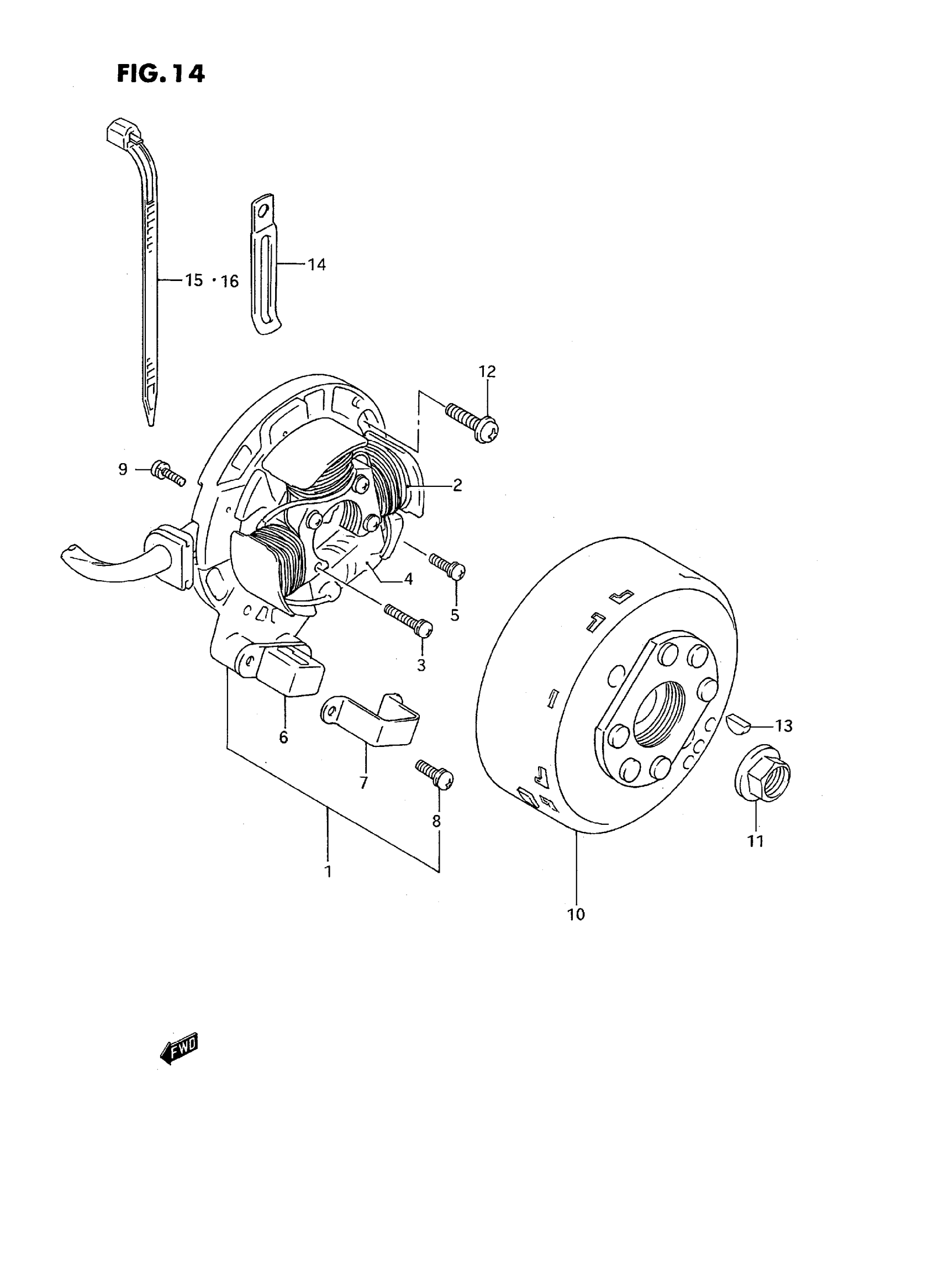

Suzuki RMX250T (1996) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY | MODEL K/L This part replaces 32101-05D00.

32101-05D01

Unavailable

1

STATOR ASSY | MODEL M/N/P/R/S/T; Includes Item(s) 2 - 9

32101-05D01

Unavailable

2

COIL, LIGHTING

32120-05D00

Unavailable

3

SCREW | MODEL K/L/M/N This part replaces 02112-34256.

02112-3425B

$3.37

3

SCREW | MODEL P/R/S/T This part replaces 02112-34253.

02112-3425B

$3.37

4

COIL, PRIMARY

32140-05D00

Unavailable

5

SCREW | MODEL K/L/M/N This part replaces 02112-34166.

02112-3416B

$2.21

5

SCREW | MODEL P/R/S/T This part replaces 02112-34163.

02112-3416B

$2.21

6

COIL, PULSER

32150-05D00

Unavailable

7

COVER, PULSER COIL | MODEL K/L/M/N This part replaces 32156-05D00.

32157-27C01

Unavailable

7

COVER, PULSER COIL | MODEL P/R/S/T

32157-27C01

Unavailable

8

SCREW | MODEL K/L/M/N This part replaces 02112-35166.

02112-3516A

$2.65

8

SCREW | MODEL P/R/S/T This part replaces 02112-35163.

02112-3516A

$2.65

9

SCREW | MODEL K/L/M/N This part replaces 02112-34086.

02112-3408A

$2.58

9

SCREW | MODEL P/R/S/T This part replaces 02112-34083.

02112-3408A

$2.58

10

ROTOR

32102-05D00

Unavailable

11

NUT | MODEL K/L/M/N/P This part replaces 08316-16128.

08316-10127

$2.53

11

NUT | MODEL R/S/T This part replaces 08316-10123.

08316-1012A

$2.24

12

SCREW | MODEL K/L/M/N This part replaces 02112-16208.

02142-06207

$1.38

12

SCREW | MODEL P/R/S/T This part replaces 02112-16203.

02112-1620B

$2.64

13

KEY

08341-31039

$1.89

14

CLAMP | MODEL K/L/M/N/P/R This part replaces 09404-05404.

09404-06039

$1.73

14

CLAMP | MODEL S/T This part replaces 09404-06431.

09404-06039

$1.73

15

CLAMP (L:125)

09407-14403

$2.24

16

CLAMP (L:235)

09407-25401

$4.21
