1996 Suzuki RMX250T Crankcase Cover Diagram

← All diagrams

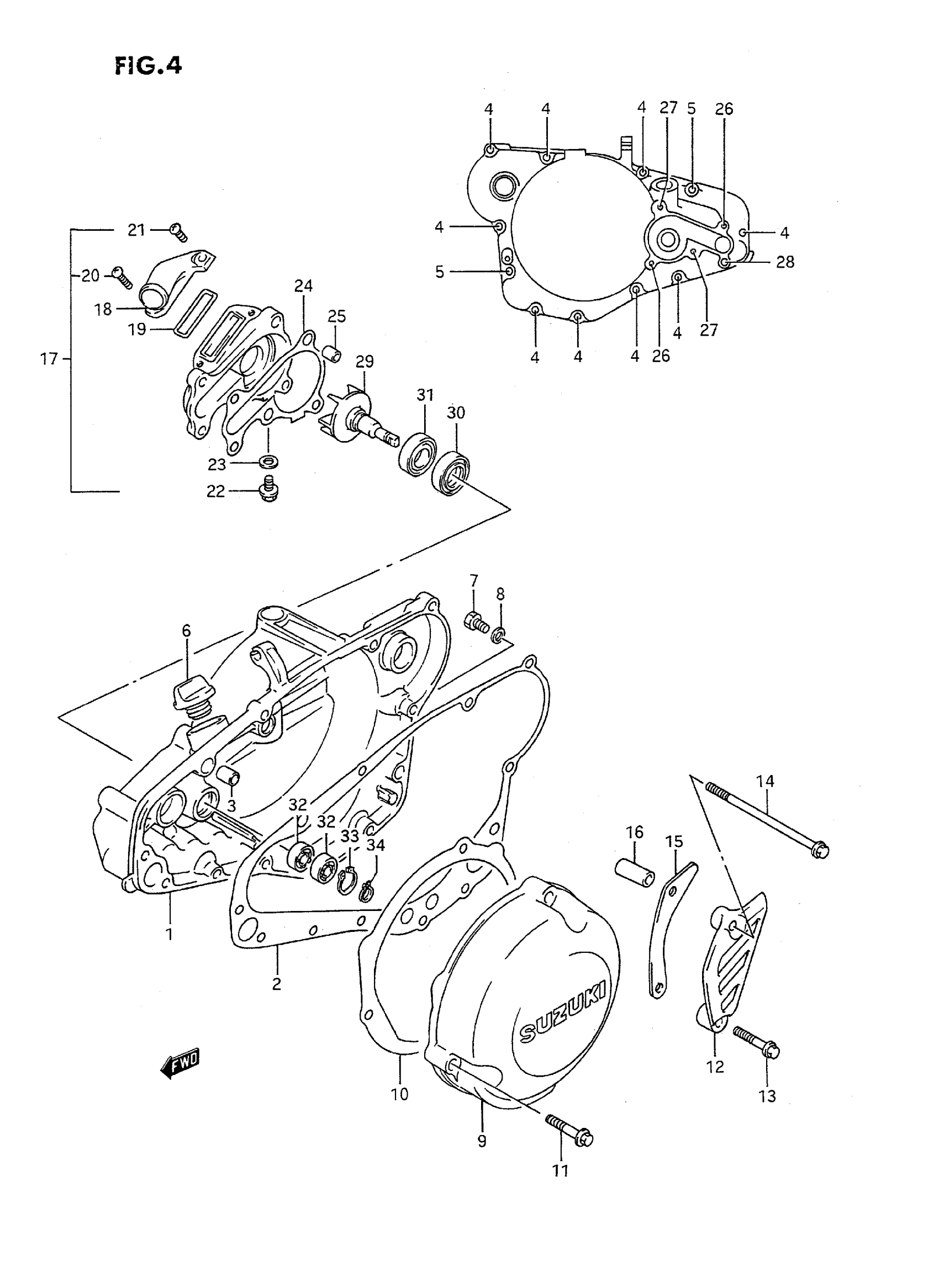

Find the part on the Crankcase Cover diagram for your 1996 Suzuki RMX250T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki RMX250T Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH

11341-28C00

1
Out of stock

2

GASKET, CLUTCH COVER

11482-28C01

1

$22.10

In stock

3

PIN

04211-09129

2
Out of stock

4

BOLT

01547-06257

9
Out of stock

5

BOLT

01547-06357

2
Out of stock

6

1

$3.90

In stock

7

SCREW (6X10) This part replaces 09128-06004.

09128-06044

1
Out of stock

8

GASKET

09168-06004

1
Out of stock

9

NO DESCRIPTION AVAILABLE This part replaces 11351-05D00.

11351-05D02

1
Out of stock

10

GASKET, MAGNETO COVER This part replaces 11483-28C00.

11483-28C01

1
Out of stock

11

BOLT

01547-06257

3
Out of stock

13

BOLT

01547-06257

1
Out of stock

14

1

$3.39

In stock

15

PLATE, CHAIN GUIDE

27641-28C10

1
Out of stock

15

PLATE, CHAIN GUIDE | OPT,FOR NT:15

27641-28C20

1
Out of stock

16

SPACER

09180-06203

1

$2.92

In stock

17

CASE, WATER PUMP | Includes Item(s) 18 - 23

17410-28C01

1
Out of stock

18

CONNECTOR

17412-28C00

1
Out of stock

19

O RING

17415-01C00

1
Out of stock

20

SCREW

02112-06167

1

$1.52

In stock

21

1

$1.55

In stock

22

1

$3.95

In stock

23

1

$2.48

In stock

24

GASKET, WATER PUMP CASE

17431-28C00

1
Out of stock

25

PIN

04211-09129

2
Out of stock

26

BOLT

01547-06207

2
Out of stock

27

BOLT

01547-06307

2

$2.22

In stock

28

BOLT

01547-06857

1

$3.58

In stock

29

INPELLER, WATER PUMP

17491-28C00

1
Out of stock

30

OIL SEAL, INNER (12X24X3.6)

09282-12006

1
Out of stock

31

OIL SEAL, OUTER (12X24X6.4)

09289-12004

1
Out of stock

32

BEARING (8X19X6)

08113-06980

2

$12.27

In stock

33

CIRCLIP

09381-19003

1

$2.43

In stock

34

1

$1.90

In stock

35

REFER TO FIG.4A (B-13) FOR

SPECIAL NOTE

—
Out of stock
