1996 Suzuki RMX250T AIR Cleaner Diagram

← All diagrams

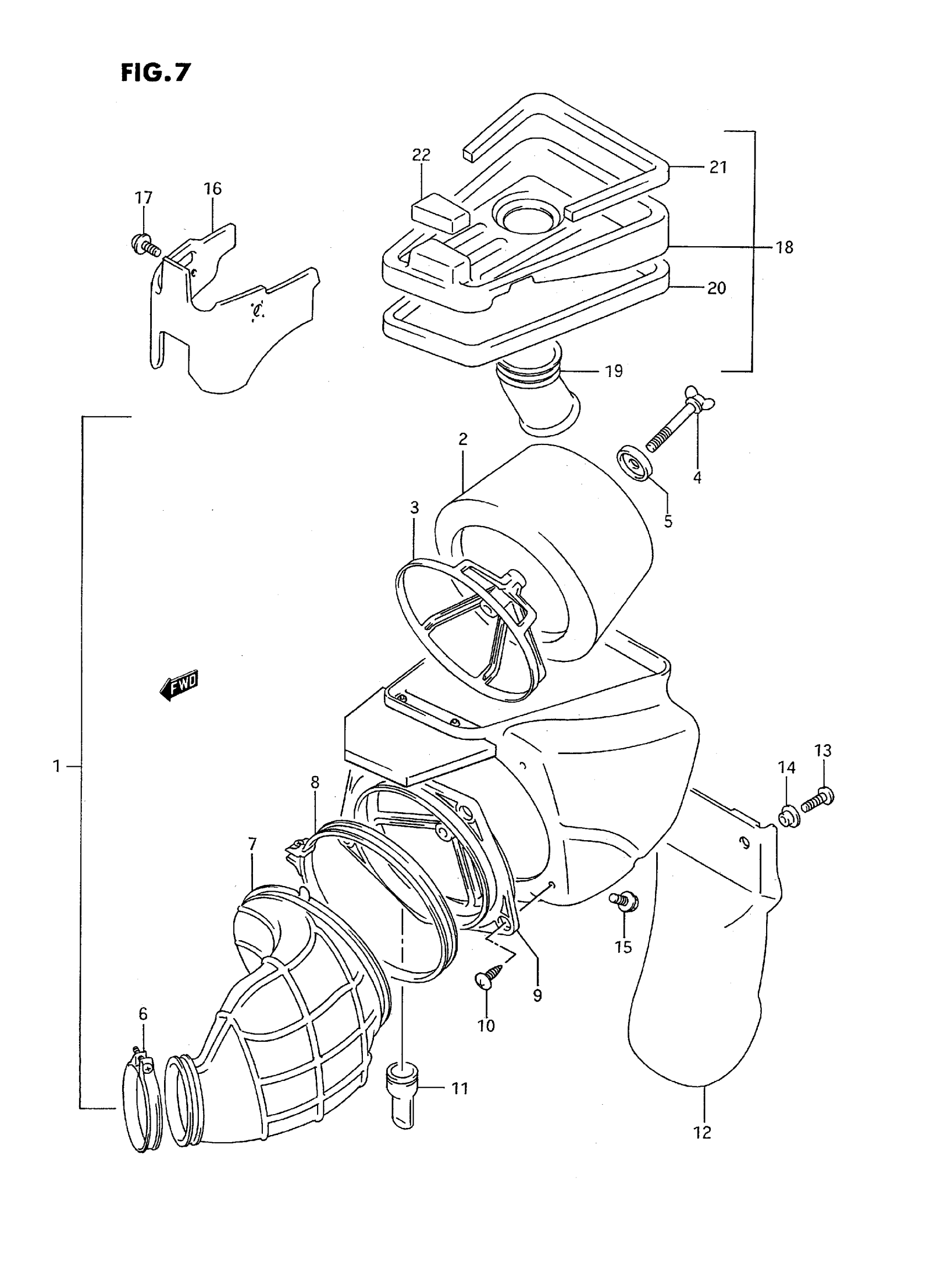

Find the part on the AIR Cleaner diagram for your 1996 Suzuki RMX250T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki RMX250T AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR | MODEL K This part replaces 13700-05D00.

13700-05D02

1
Out of stock

1

CLEANER ASSY, AIR | MODEL L This part replaces 13700-05D01.

13700-05D02

1
Out of stock

1

CLEANER ASSY, AIR | MODEL M/N

13700-05D02

1
Out of stock

1

CLEANER ASSY, AIR | MODEL P/R/S/T; Includes Item(s) 2 - 14

13700-05D10

1
Out of stock

2

FILTER | MODEL K This part replaces 13780-00B20.

13780-28C10

1
Out of stock

2

FILTER | MODEL L/M/N/P/R/S/T

13780-28C10

1
Out of stock

3

HOLDER, FILTER

13791-00B20

1
Out of stock

4

BOLT, WING

13831-02B00

1
Out of stock

5

WASHER

13792-13A01

1
Out of stock

6

CLAMP | MODEL K/L/M/N This part replaces 09402-70208.

09402-70902

1
Out of stock

6

CLAMP | MODEL P/R/S/T

09402-68208

1
Out of stock

7

NO DESCRIPTION AVAILABLE | MODEL K/L/M/N This part replaces 13881-28C00.

13881-28C01

1
Out of stock

7

TUBE, OUTLET | MODEL P/R/S/T

13881-05D10

1
Out of stock

8

CLAMP | MODEL K/L This part replaces 13826-01B20.

13826-43D00

1
Out of stock

8

CLAMP | MODEL M/N This part replaces 13826-01B21.

13826-43D00

1
Out of stock

8

CLAMP | MODEL P/R/S/T

13826-43D00

1
Out of stock

9

BASE, FILTER

13790-05D00

1
Out of stock

10

SCREW | MODEL K/L/M/N/P/R/S This part replaces 03242-05124.

03241-0512A

5
Out of stock

10

SCREW | MODEL T This part replaces 03242-05123.

03241-0512A

5
Out of stock

11

.CAP, DRAIN This part replaces 13681-19B00.

13681-19B01

1
Out of stock

12

GUARD, MUD | MODEL K/L/M/N/P/R

13738-01B00

1
Out of stock

12

GUARD, MUD | MODEL S/T

13738-28E01

1
Out of stock

13

SCREW

02142-06167

2
Out of stock

14

SPACER

13838-02B00

2
Out of stock

15

BOLT | MODEL K/L/M/N/P This part replaces 01517-06204.

01550-0620A

2
Out of stock

15

BOLT, GEAR SHIFT LINK | MODEL R/S This part replaces 01800-06203.

01500-0620A

2
Out of stock

15

BOLT, GEAR SHIFT LINK | MODEL T This part replaces 01500-06203.

01500-0620A

1
Out of stock

16

GUARD, MUD | MODEL K/L/M This part replaces 13739-05D00.

13739-43D00

1
Out of stock

16

GUARD, MUD | MODEL N/P/R/S/T

13739-43D00

1
Out of stock

17

SCREW (6X12)

09136-06004

1
Out of stock

18

CAP, AIR CLEANER | MODEL K/L/M/N

13740-05D00

1
Out of stock

18

CAP, AIR CLEANER | MODEL P/R/S/T; Includes Item(s) 19 - 22

13740-05D10

1
Out of stock

19

TUBE, INLET | MODEL K/L/M/N

13891-38A50

1
Out of stock

19

TUBE, INLET | MODEL P/R/S/T

13891-34C00

1
Out of stock

20

GASKET

13746-05D00

1
Out of stock

21

CUSHION

13736-05D00

1
Out of stock

22

CUSHION

13737-05D00

1
Out of stock
