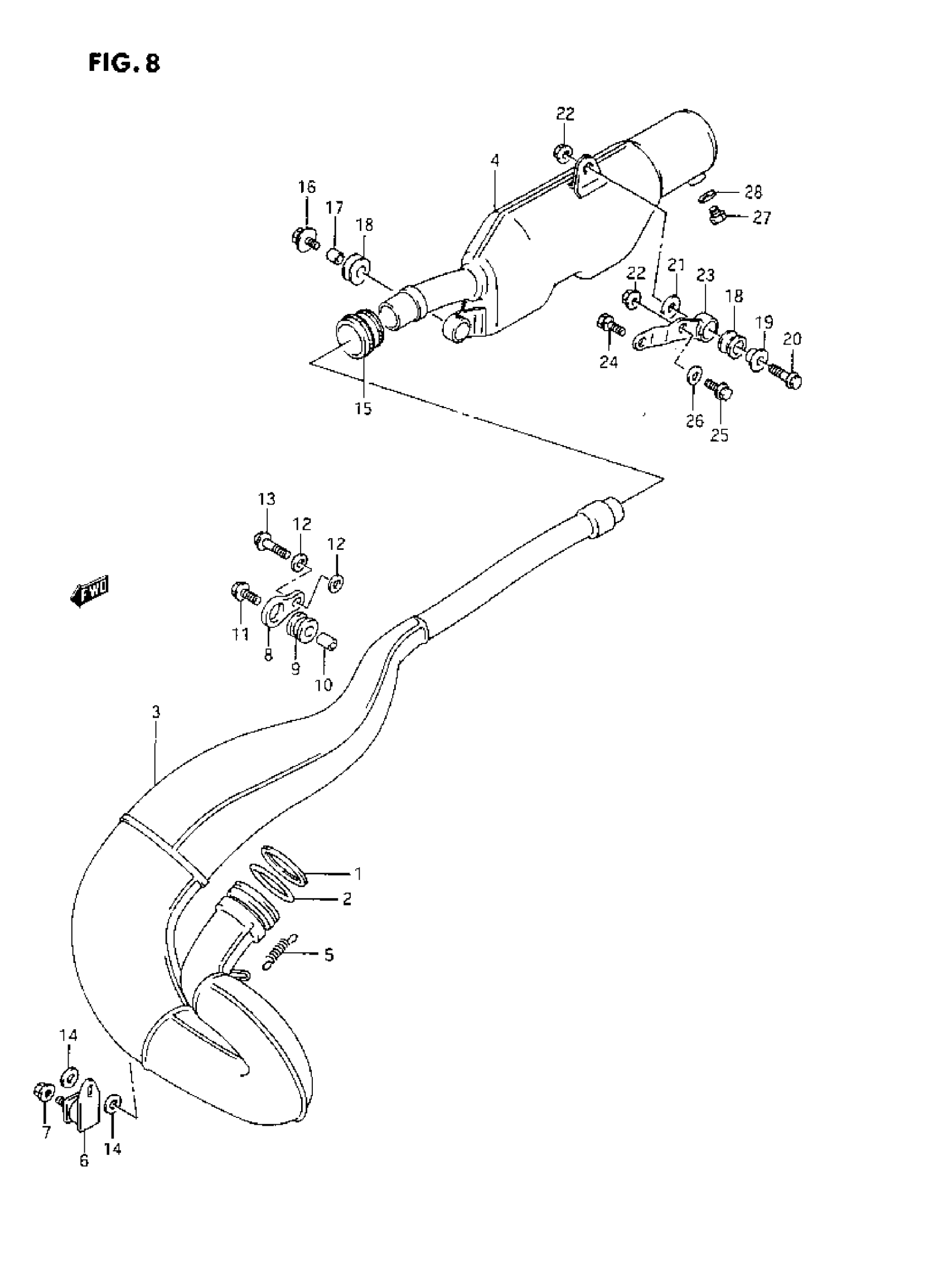

Suzuki RMX250 (1993) MUFFLER Diagram

#

Description
Price

1

WASHER, EXHAUST PIPE | MODEL K/L/M/N

14172-28C00

Unavailable

1

WASHER, EXHAUST PIPE | MODEL P/R

14172-28C30

$2.08

2

O RING, EXHAUST PIPE | MODEL K/L/M/N

14171-28C01

Unavailable

2

O RING, EXHAUST PIPE | MODEL P/R

14171-28C30

$18.28

3

MUFFLER, LST | MODEL K

14310-05D00-H01

Unavailable

3

MUFFLER, IST | MODEL L/M/N

14310-05D20-H01

Unavailable

3

MUFFLER, LST | MODEL P/R

14310-05D40-H01

Unavailable

4

MUFFLER, 2ND | MODEL K/L/M/N

14330-05D02-H01

Unavailable

4

MUFFLER, 2ND | MODEL P/R

14330-05D40-H01

Unavailable

5

SPRING | MODEL K/L/M/N This part replaces 09443-11024.

09443-11024-XC0

$10.90

5

SPRING | MODEL P/R This part replaces 09443-12042.

09443-12042-XC0

$7.54

6

DAMPER, MUFFLER FRONT

14770-41101

$15.68

7

NUT

08319-31087

$2.31

8

PLATE, MOUNTING | MODEL K

14761-01B00

Unavailable

8

PLATE, MOUNTING | MODEL L/M/N/P/R

14761-27C00

$8.02

9

CUSHION (8.7X26X14) This part replaces 14762-01B01.

14762-01B02

$3.42

10

SPACER (6.3X9.1XL4.5) | MODEL K

09180-06136

$2.88

10

SPACER | MODEL L/M/N/P/R This part replaces 09180-06062.

09180-06268

$2.10

11

BOLT | MODEL K/L/M/N/P

01547-06167

$1.64

11

BOLT | MODEL R This part replaces 01547-06163.

01547-0616B

$2.43

12

WASHER (6.5X20X1.2) | MODEL K This part replaces 09160-06027.

09160-06077

$1.89

12

WASHER (6.5X20X1.2) | MODEL L/M/N/P/R This part replaces 09160-06027.

09160-06077

$1.89

13

BOLT (6X25) | MODEL K

09139-06057

$3.05

13

BOLT | MODEL L/M/N/P/R

01547-06257

$2.01

14

WASHER | MODEL K This part replaces 09160-08065.

09160-08126

$2.28

14

WASHER (8.5X19X2.3) | MODEL L/M/N/P/R This part replaces 09160-08053.

09160-08039

$1.95

15

CONNECTOR, MUFFLER | MODEL K/L/M/N This part replaces 14771-28C01.

14771-28C02

$36.12

15

CONNECTOR, MUFFLER | MODEL P/R

14771-28C02

$36.12

16

BOLT (8X35)

09118-08080

$3.30

17

SPACER This part replaces 09180-08102.

09180-08194

$2.80

18

CUSHION

09320-12043

$7.20

19

SPACER

09180-08151

$4.73

20

BOLT (8X35) | MODEL K/L/M/N/P This part replaces 01517-08355.

01550-0835A

$2.80

20

BOLT (8X35) | MODEL R This part replaces 01550-08353.

01550-0835A

$2.80

21

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.10

22

NUT (CHROME) | MODEL K/L/M/N/P This part replaces 08316-16088.

08316-10087

$2.24

22

NUT | MODEL R This part replaces 08316-10083.

08316-1008B

$2.65

23

BRACKET, MUFFLER SUPPORT

14760-05D00

Unavailable

24

BOLT | MODEL K/L/M/N/P

01517-06166

Unavailable

24

BOLT | MODEL R This part replaces 01550-06163.

01550-0616A

$1.97

25

BOLT | MODEL K/L/M/N/P This part replaces 01517-08256.

01550-0825A

$2.31

25

BOLT | MODEL R This part replaces 01550-08253.

01550-0825A

$2.31

26

WASHER (8.5X2CXL.6)

09160-08054

$1.43

27

PLUG, DRAIN

09247-12103

$2.80

28

GASKET

09168-12002

$1.59
