Description

Price

1

CALIPER ASSY, REAR

69100-03B10-999

$338.87

2

.PISTON SET

59300-01810

$75.47

3

..SEAL SET,PISTON

59100-04841

$10.87

4

.SPRING,PAD

59315-03B00

$20.22

5

.BOOT, AXLE

59312-36500

$4.78

6

.INSULATOR, AXLE

59313-36500

$5.48

7

.CARRIER,CALIPER

69350-03B00

$170.68

8

.GUIDE,PAD

59116-03B00

$17.12

9

.BLEEDER

59121-03B00

$23.17

10

CAP, BLEEDER This part replaces 59122-02B40.

55156-66310

$4.73

11

.PIN,PAD

69141-03B00

$26.15

12

.CLIP, PAD PIN

69142-45000

$3.97

13

PAD & SHIM SET

69100-03880

$54.38

14

.SHIM, PAD

59371-20E00

$17.08

15

BOLT,8X18 (8X18)

09103-08171

$3.98

16

GUARD, CALIPER

69725-03B10

$8.48

17

BOLT

01547-0610A

$1.47

18

WASHER

08322-01067

$1.86

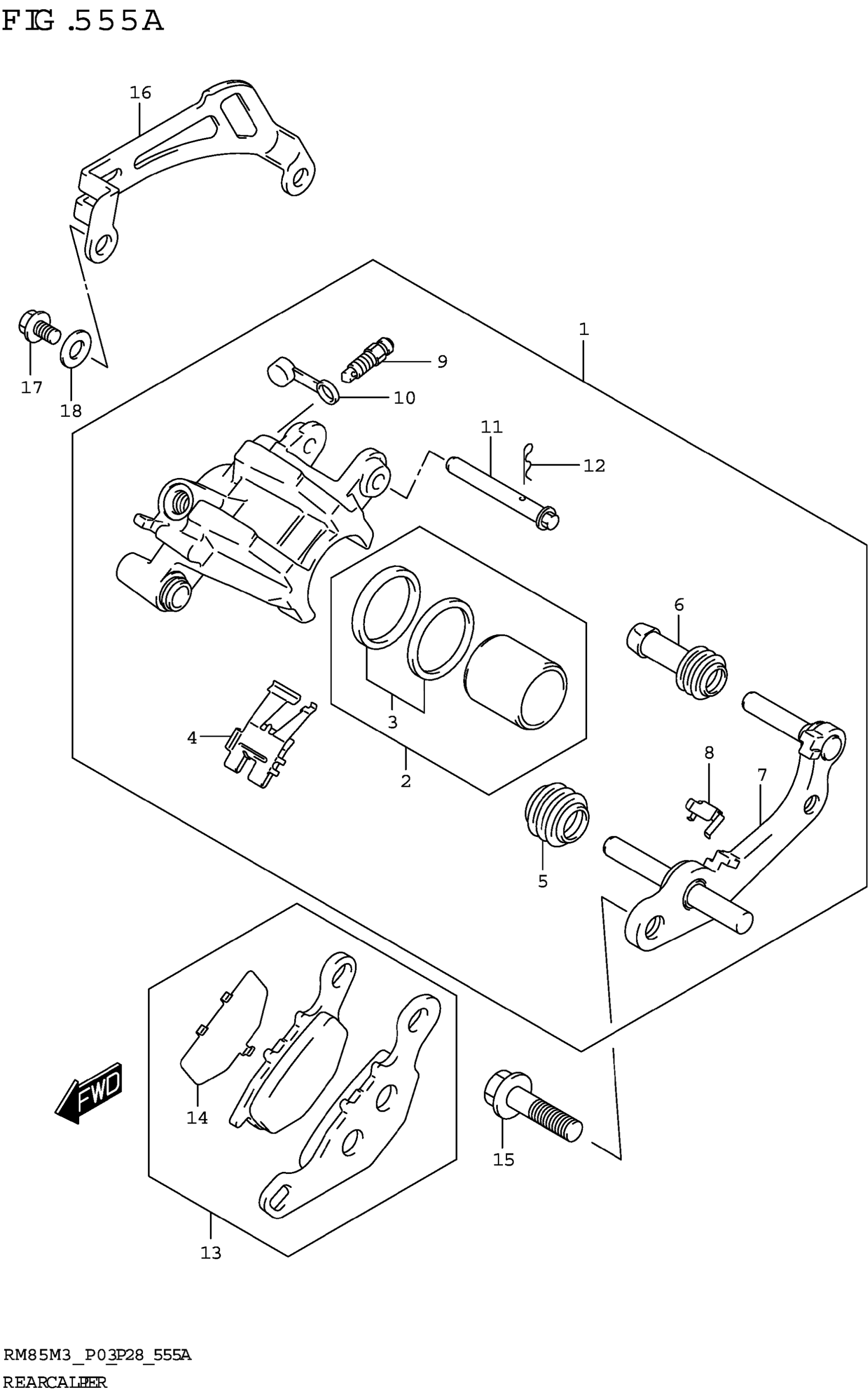

Suzuki RM85M3 (2023) REAR CALIPER Diagram
