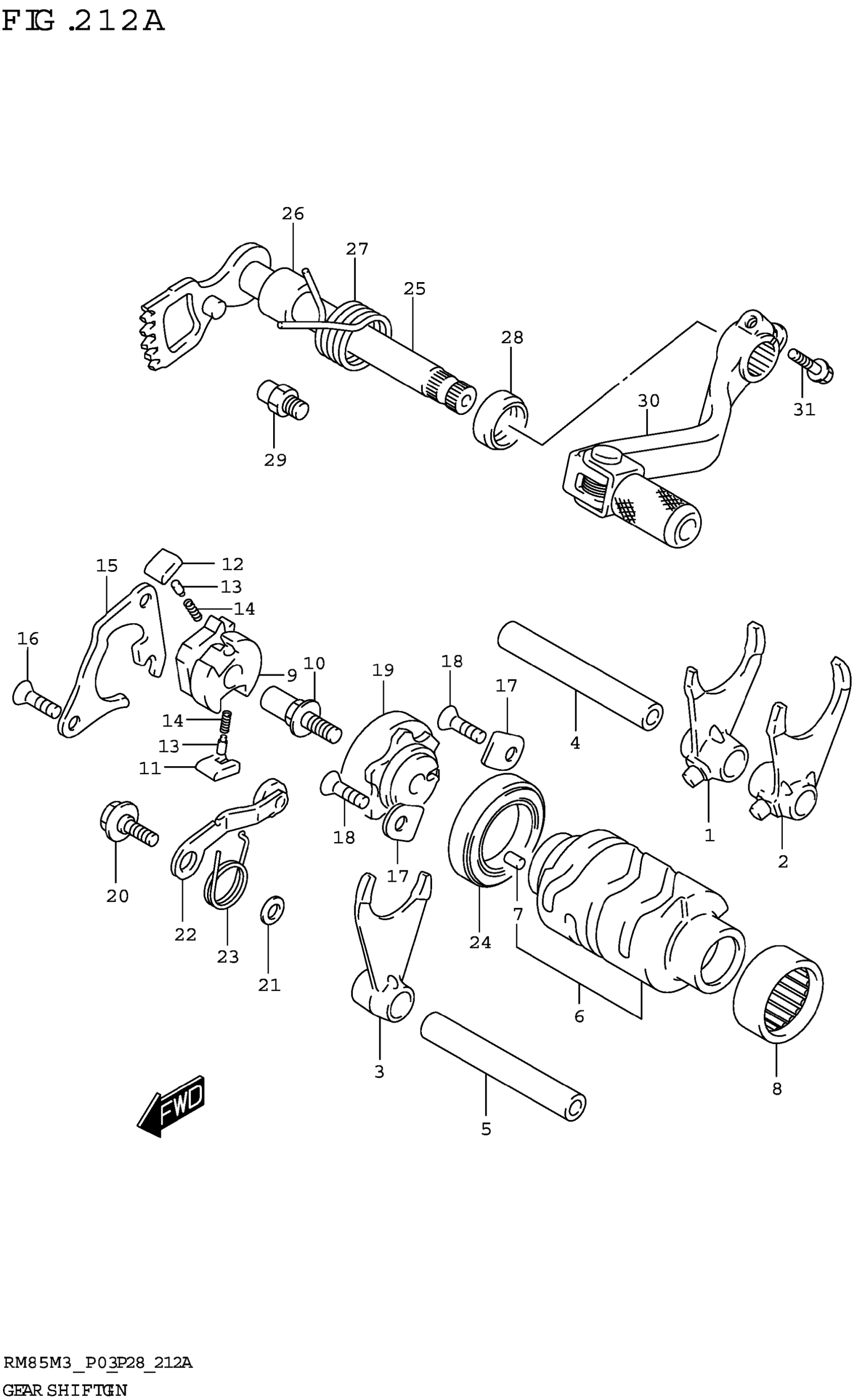

Suzuki RM85M3 (2023) GEAR SHIFTING Diagram

#

Description
Price

1

FORK,GEAR SHIFT,NO.1

25211-02B41

$71.03

2

FORK,GEAR SHIFT,NO.2

25221-02B41

$71.03

3

FORK,GEAR SHIFT,NO.3

25231-02B40

$66.48

4

SHAFT,GEAR SHIFT FORK NO.1 (L | 90)

25411-02B41

Unavailable

5

SHAFT,GEAR SHIFT FORK (L:60)

25421-27C01

$20.82

6

CAM,GEAR SHIFT

25310-03B10

$220.83

7

PIN (4X13.8)

04221-04089

$1.10

8

BEARING (25X32X12)

09263-25018

$19.30

9

GEAR, GEAR SHIFT CAM DRIVEN | :13)

25322-31310

$30.40

10

PIN SHIFT CAM DRIVEN GEAR

25313-27C02

$14.73

11

PAWL, GEAR SHIFT NO.1

25323-34201

$6.61

12

PAWL, GEAR SHIFT NO.2

25324-34201

$6.80

13

PIN (5X8)

09209-05023

$2.73

14

SPRING

09440-04003

$1.48

15

LIFTER,GEAR SHIFT POLE

25331-27C00

$27.32

16

SCREW (6X12)

09126-06011

$2.01

17

RETAINER

24741-20A00

$2.80

18

SCREW (6X12)

09126-06011

$2.01

19

PLATE,SHIFT CAM STOPPER

25381-37F30

$70.07

20

BOLT (6X14.3)

09111-06041

$2.63

21

WASHER

08211-06121

$1.56

22

STOPPER,SHIFT CAM

25350-27C30

$18.03

23

SPRING,SHIFT CAM STOPPER

25355-03B00

$5.75

24

BEARING

08140-69050

$32.18

25

SHAFT,GEAR SHIFT

25510-28C30

$108.60

26

SPACER (14X20X17.5)

09180-14016

$3.57

27

SPRING

09444-26013

$2.84

28

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.04

29

STOPPER,GEAR SHIFT ARM

25671-01011

$4.09

30

LEVER ASSY,GEAR SHIFT

25600-03B10

$120.40

31

BOLT

01547-0620A

$2.01
