2023 Suzuki RM85M3 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2023 Suzuki RM85M3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

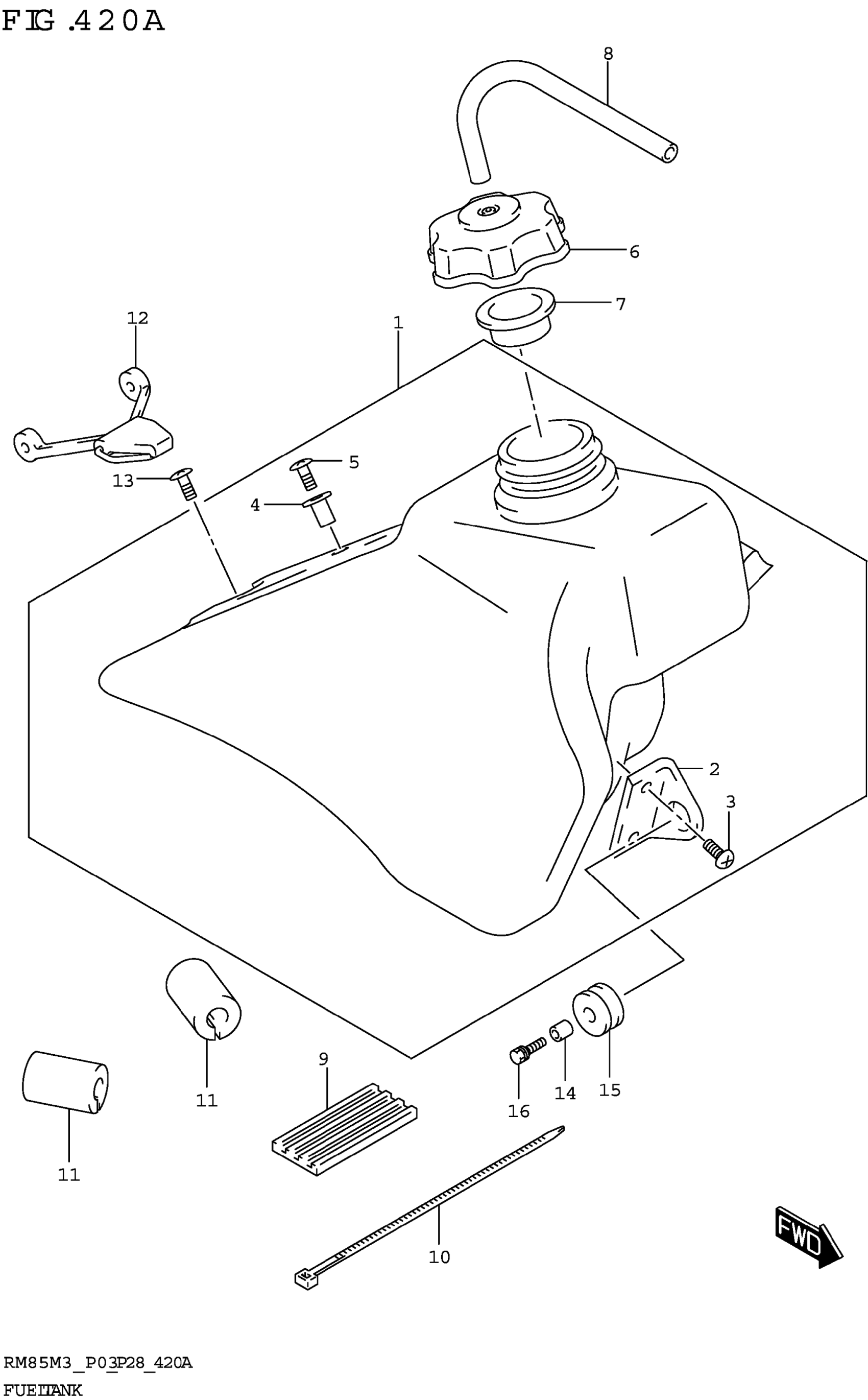

2023 Suzuki RM85M3 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK,FUEL (YELLOW)

44110-03B10-YU1

1
Out of stock

2

.BRACKET,FUEL TANK FR

44131-27C01

2
Out of stock

3

SCREW

02142-0612B

4
Out of stock

4

HOOK, SEAT FR

44132-27C01

1
Out of stock

5

.SCREW

02142-0620B

1
Out of stock

6

CAP,FUEL TANK FILLER

44210-37F00

1
Out of stock

7

GASKET,FUEL TANK FILLER CAP

44248-27C01

1
Out of stock

8

HOSE,5X8.2X600 This part replaces 09352-50005-600.

44420-44AR0

1
Out of stock

9

CUSHION,UPPER FRONT

44541-14300

2
Out of stock

10

CLAMP This part replaces 09407-20405.

09407-25402

2
Out of stock

11

CUSHION,UPPER REAR

44542-17300

2
Out of stock

12

BAND,FUEL TANK,REAR

44560-26C00

1
Out of stock

13

SCREW (6X13.5)

09139-06134

1
Out of stock

14

SPACER (6.5X9X13.5)

09180-06268

2
Out of stock

15

CUSHION (8.7X26X14)

14762-01B02

2
Out of stock

16

BOLT (6X35)

09116-06195

2
Out of stock
