Description

Price

1

PISTON

12110-03B20-0F0

$80.17

2

RING,PISTON

12141-03B00

$21.88

3

PIN, PISTON

12151-20910

$17.23

4

RING

09381-14001

$1.43

5

BEARING (14X18X16)

09263-14016

$12.21

6

CRANKSHAFT ASSY

12200-03B20

$627.35

7

.CONNROD

12161-03B02

$106.10

8

.WASHER (20X34X1.5)

09160-20082

$9.08

9

.PIN,CRANK

12211-02B50

$40.83

10

.BEARING (20X26X14)

09263-20088

$68.50

11

.CRANKSHAFT RH

12221-03B01

Unavailable

12

.CRANKSHAFT LH

12261-03B01

Unavailable

13

BEARING (20X52X15)

09262-20082

$33.28

14

SEAL,OIL (30X40X7)

09283-30076

$13.82

15

SEAL,OIL

09283-18010

$5.36

16

SPACER,PRIMARY DRIVE GEAR

12359-27C30

$22.25

17

GEAR,PRIMARY DRIVE (NT:18)

21111-02B41

$70.33

18

NUT

09140-16019

$3.33

19

WASHER

09164-16002

$2.90

20

PISTON KIT | OPT

12100-03850

$143.57

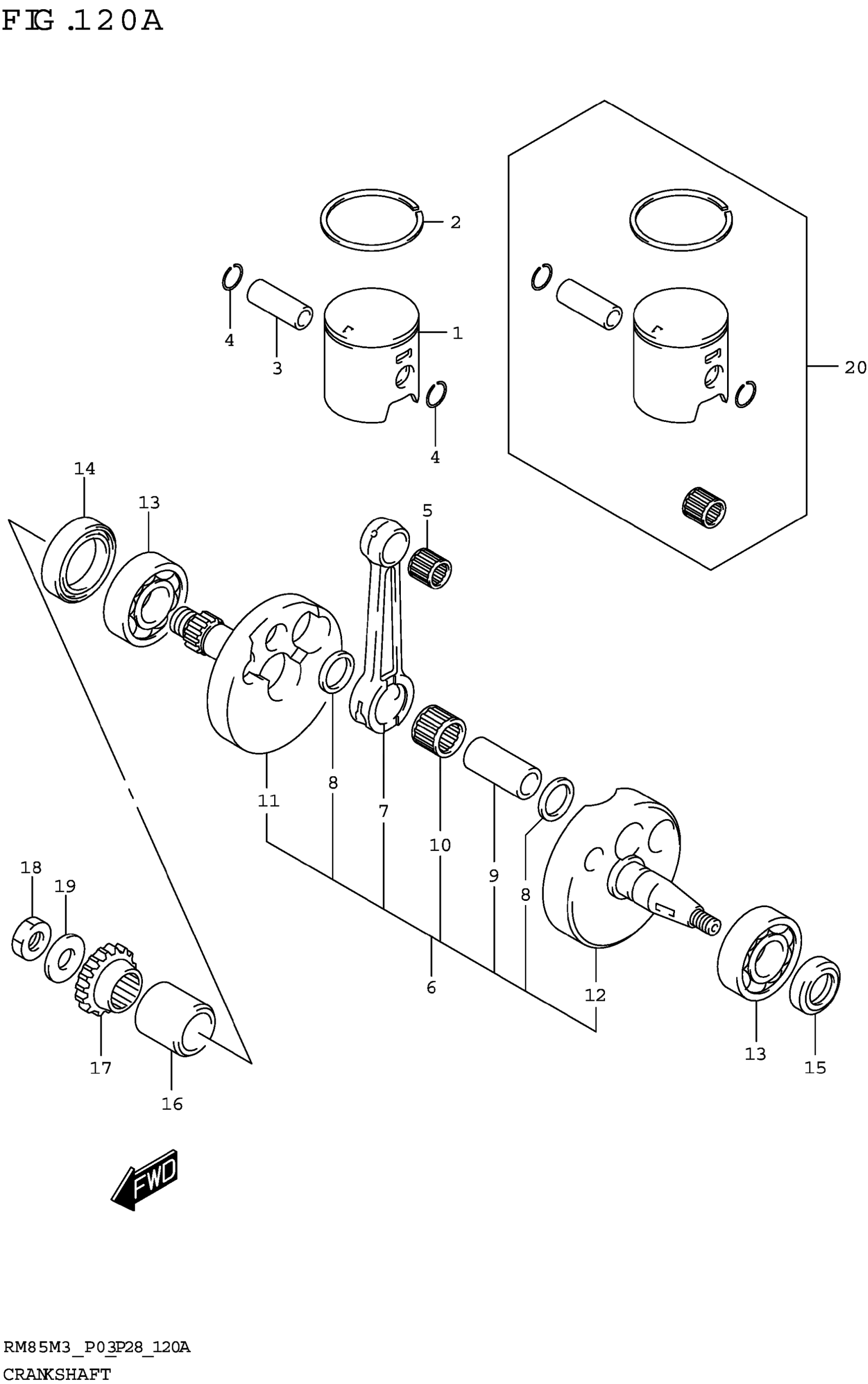

Suzuki RM85M3 (2023) CRANKSHAFT Diagram
