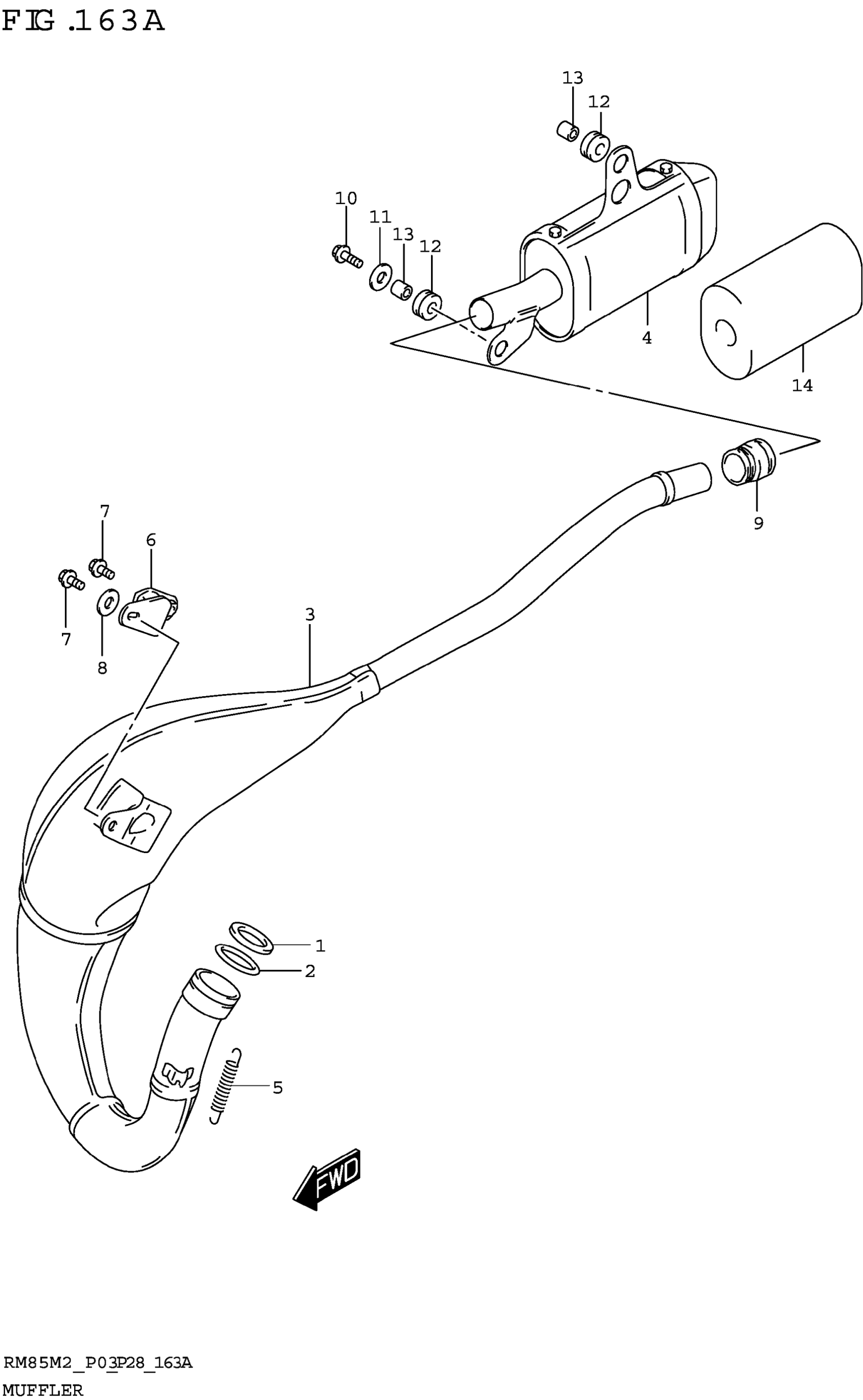

Suzuki RM85M2 (2022) MUFFLER Diagram

#

Description
Price

1

.GASKET,EXHAUST PIPE

14181-40C00

$6.91

2

.O RING,EXHAUST FLANGE

14171-03B00

$19.50

3

BODY,MUFFLER 1ST

14310-03B01

$405.57

4

BODY,MUF,2ND

14330-03B10

$335.37

5

SPRING

09443-11027

$6.79

6

DAMPER,MUFFLER

14770-20402

$11.23

7

BOLT

01547-0612A

$2.09

8

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06079.

09160-06052

$1.49

9

CONNECTOR, 2ND MUFFLER

14771-17300

$15.44

10

BOLT

01547-0620A

$2.10

11

WASHER (6.5X20X1.2)

09160-06077

$1.97

12

CUSHION (8.5X20X8)

09320-08510

$1.74

13

SPACER (6.5X9X8)

09180-06261

$1.97

14

SILENCER,MUF | OPT

14351-03B10

$91.90
