2021 Suzuki RM85M0 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2021 Suzuki RM85M0, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

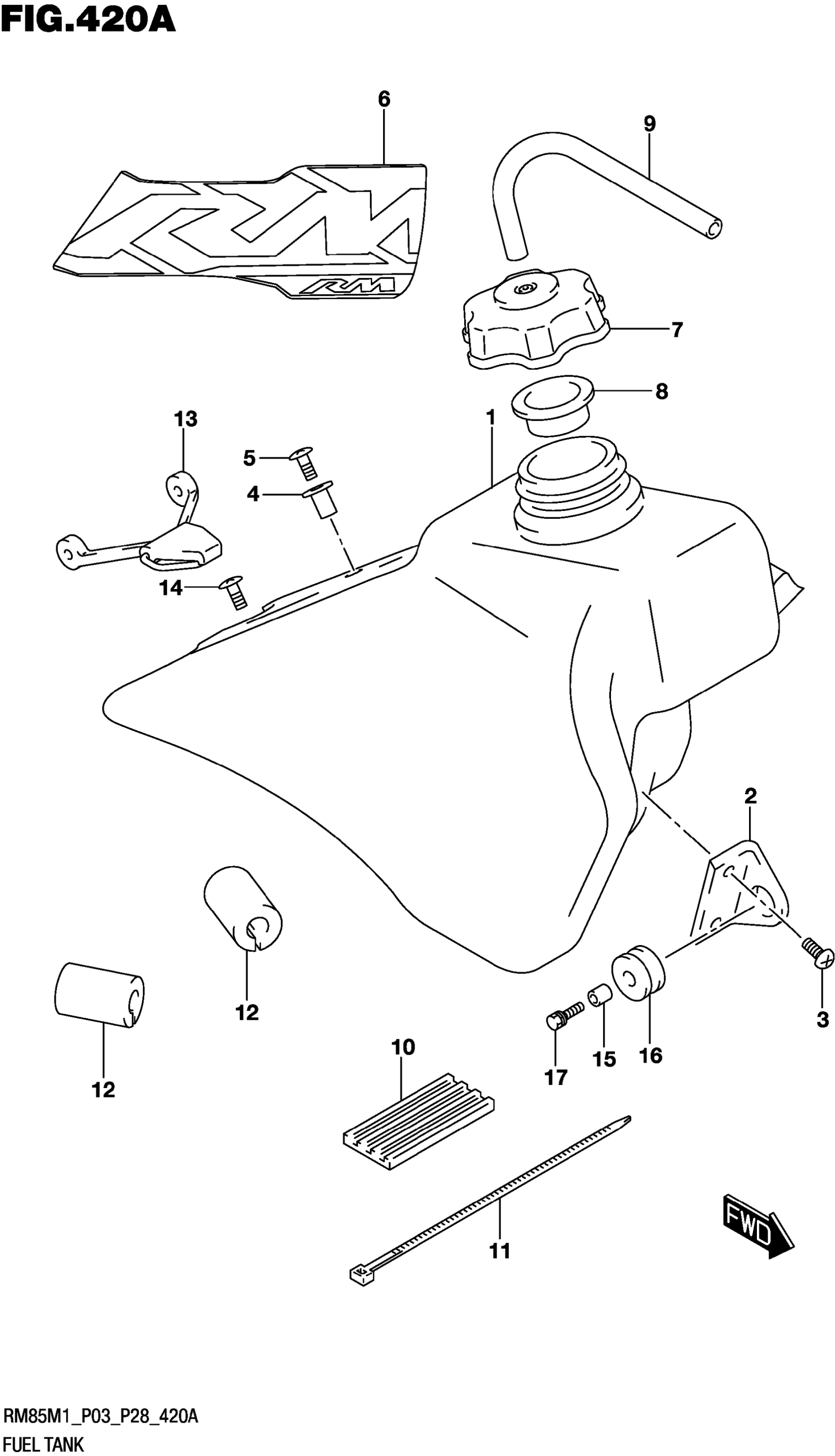

2021 Suzuki RM85M0 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK,FUEL (YELLOW)

44110-03B10-YU1

1
Out of stock

2

.BRACKET,FUEL TANK FR

44131-27C01

2
Out of stock

3

SCREW

02142-0612B

4
Out of stock

4

HOOK, SEAT FR

44132-27C01

1
Out of stock

5

.SCREW

02142-0620B

1
Out of stock

6

TAPE,FUEL TANK (ORANGE,YELLOW This part replaces 68111-03B90-B7F.

68111-03B90-BLE

1
Out of stock

7

CAP,FUEL TANK FILLER

44210-37F00

1
Out of stock

8

GASKET,FUEL TANK FILLER CAP

44248-27C01

1
Out of stock

9

HOSE,5X8.2X600 This part replaces 09352-50005-600.

44420-44AR0

1
Out of stock

10

CUSHION,UPPER FRONT

44541-14300

2
Out of stock

11

CLAMP This part replaces 09407-20405.

09407-25402

2
Out of stock

12

CUSHION,UPPER REAR

44542-17300

2
Out of stock

13

BAND,FUEL TANK,REAR

44560-26C00

1
Out of stock

14

SCREW (6X13.5)

09139-06134

1
Out of stock

15

SPACER (6.5X9X13.5)

09180-06268

2
Out of stock

16

CUSHION (8.7X26X14)

14762-01B02

2
Out of stock

17

BOLT (6X35)

09116-06195

2
Out of stock
