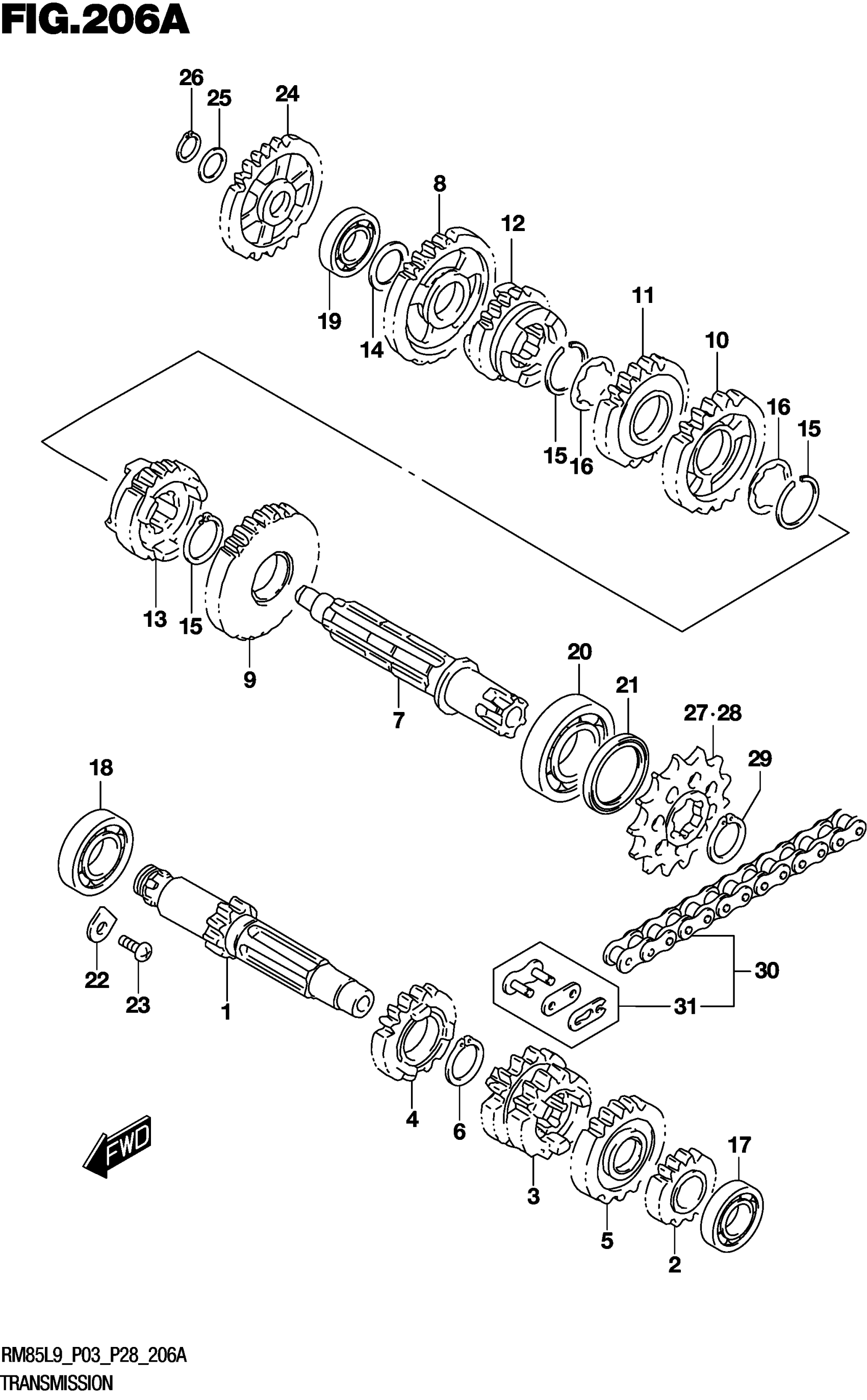

Suzuki RM85L9 (2019) TRANSMISSION Diagram

#

Description
Price

1

SHAFT,CNTR (NT:11)

24121-02B42

$161.92

2

GEAR,2ND DRIVE,NT:15 (NT:15)

24221-02B02

$40.16

3

GEAR,3RD & 4TH DRIVE,NT:14/15

24231-02B03

$122.53

4

GEAR,5TH DRIVE,NT:18 (NT:18)

24251-02B02

$90.88

5

GEAR,6TH DRIVE (NT:22)

24260-02B01

$98.98

6

CIRCLIP

09380-20009

$2.06

7

SHAFT,DRIVE

24131-02B01

$194.00

8

GEAR,1ST DRIVEN,NT:28 (NT:28)

24311-02B02

$127.82

9

GEAR,2ND DRIVEN,NT:29 (NT:29)

24321-02B02

Unavailable

10

GEAR,3RD DRIVEN,NT:22 (NT:22)

24331-03B02

$94.70

11

GEAR,4TH DRIVEN,NT:20 (NT:20)

24341-03B02

$64.45

12

GEAR,5TH DRIVEN,NT:21 (NT:21)

24351-02B02

$98.98

13

GEAR,6TH DRIVEN,NT:23 (NT:23)

24361-02B03

$54.44

14

SHIM (15X26X1)

09181-15195

$2.59

15

CIRCLIP

09380-22006

$2.80

16

WASHER,LOCK (22.1X27X0.5)

09167-22011

$2.95

17

BEARING

08113-62027

$12.99

18

BEARING (20X42X12)

09262-20106

$31.90

19

BEARING

08113-62027

$12.99

20

BEARING (20X47X14)

09262-20069

$21.00

21

OIL SEAL (20X35X5)

09283-20057

$5.51

22

RETAINER

24741-21A00

$2.80

23

SCREW

02112-0612A

$1.43

24

GEAR,KICK STARTER IDLE,NT:24 | NT:24

26260-02B40

$86.48

25

SHIM (12X20X0.5)

09181-12158

$2.24

26

CIRCLIP

08331-3112A

$1.77

27

SPROCKET,ENGINE,NT:14 (NT:14)

27511-20421

$26.32

28

SPROCKET,ENGINE,NT:13 (NT:13) | OPT

27511-20401

$30.37

29

CIRCLIP

09380-20009

$2.06

30

CHAIN ASSY,DRIVE (DID428DS,11

27600-05350

$204.13

31

.JOINT SET,CHAIN | OPT

27620-03B00

$12.62
