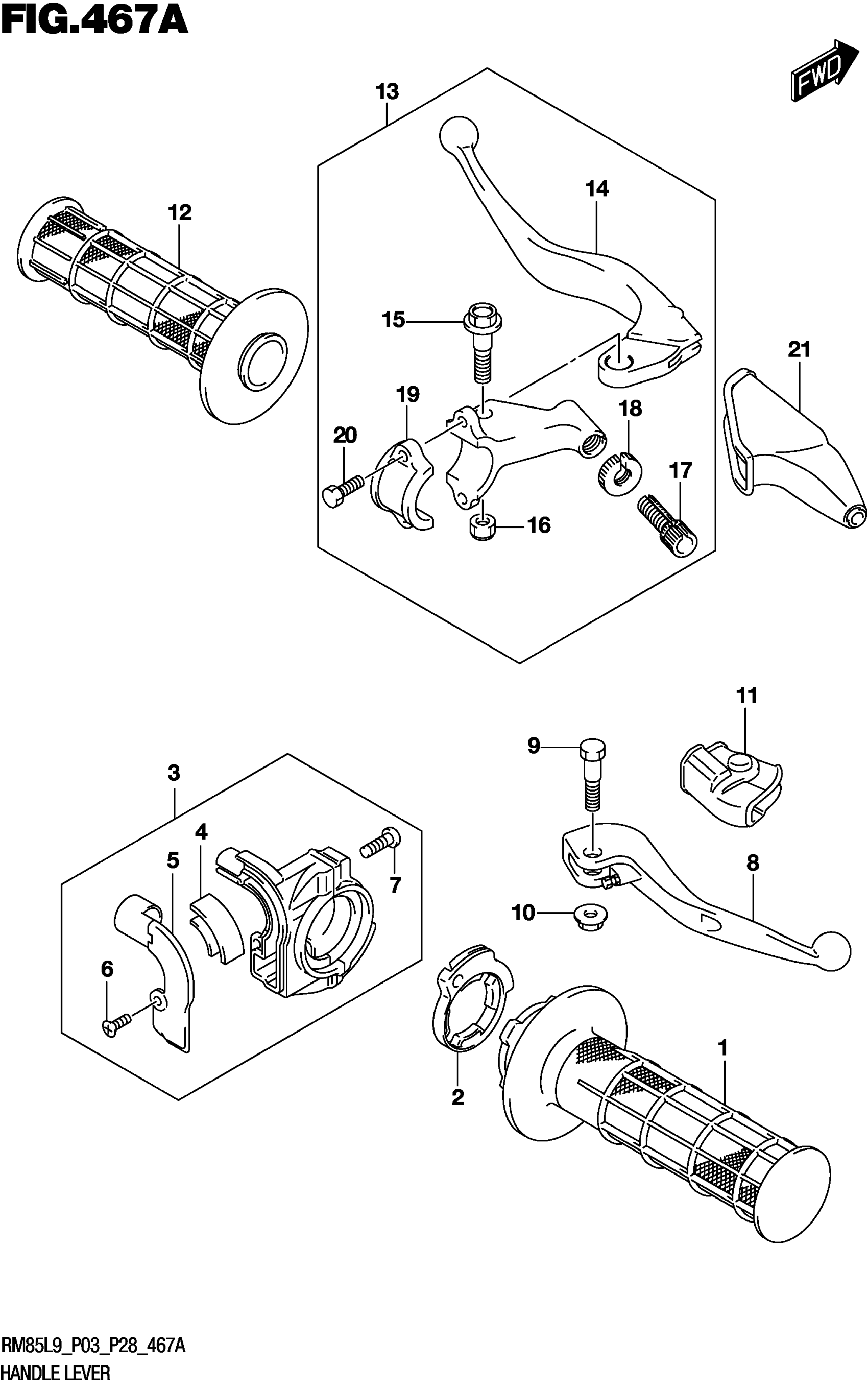

Suzuki RM85L9 (2019) HANDLE LEVER Diagram

#

Description
Price

1

GRIP, THROTTLE

57110-27C00

$24.14

2

ROTER, THROTTLE

57114-20430

$14.18

3

CASE ASSY, THROTTLE This part replaces 57100-03D10.

57100-03D12

$41.78

4

.GUIDE This part replaces 57122-03D10.

57122-03D11

$9.58

5

.COVER

57129-03D10

$31.88

6

.SCREW

02132-0406B

$3.70

7

.SCREW

02112-0516A

$1.45

8

LEVER ASSY,BRAKE

57310-37F00

$32.49

9

BOLT, BRAKE LEVER

57431-14500

$5.75

10

NUT

08316-1006B

$2.50

11

COVER,BRAKE LEVER

57343-35G00

$21.48

12

GRIP LH

57211-27C00

$11.25

13

LEVER ASSY,CLUTCH This part replaces 57500-28C12.

57500-28C13

$89.93

14

.LEVER,CLUTCH

57621-28C00

$17.28

15

.BOLT,LEVER

57431-28C01

$9.57

16

.NUT

08319-2106A

$1.89

17

.ADJUSTER,WIRE

57441-28C10

$15.50

18

.NUT,LOCK

57442-28C00

$14.63

19

.BRACKET, CLUTCH LEVER HOLDER

57512-28C00

$28.93

20

.BOLT

01500-0516B

$2.35

21

COVER, CLUTCH LEVER This part replaces 57341-40002.

57341-40003

$5.02
