2019 Suzuki RM85L9 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2019 Suzuki RM85L9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

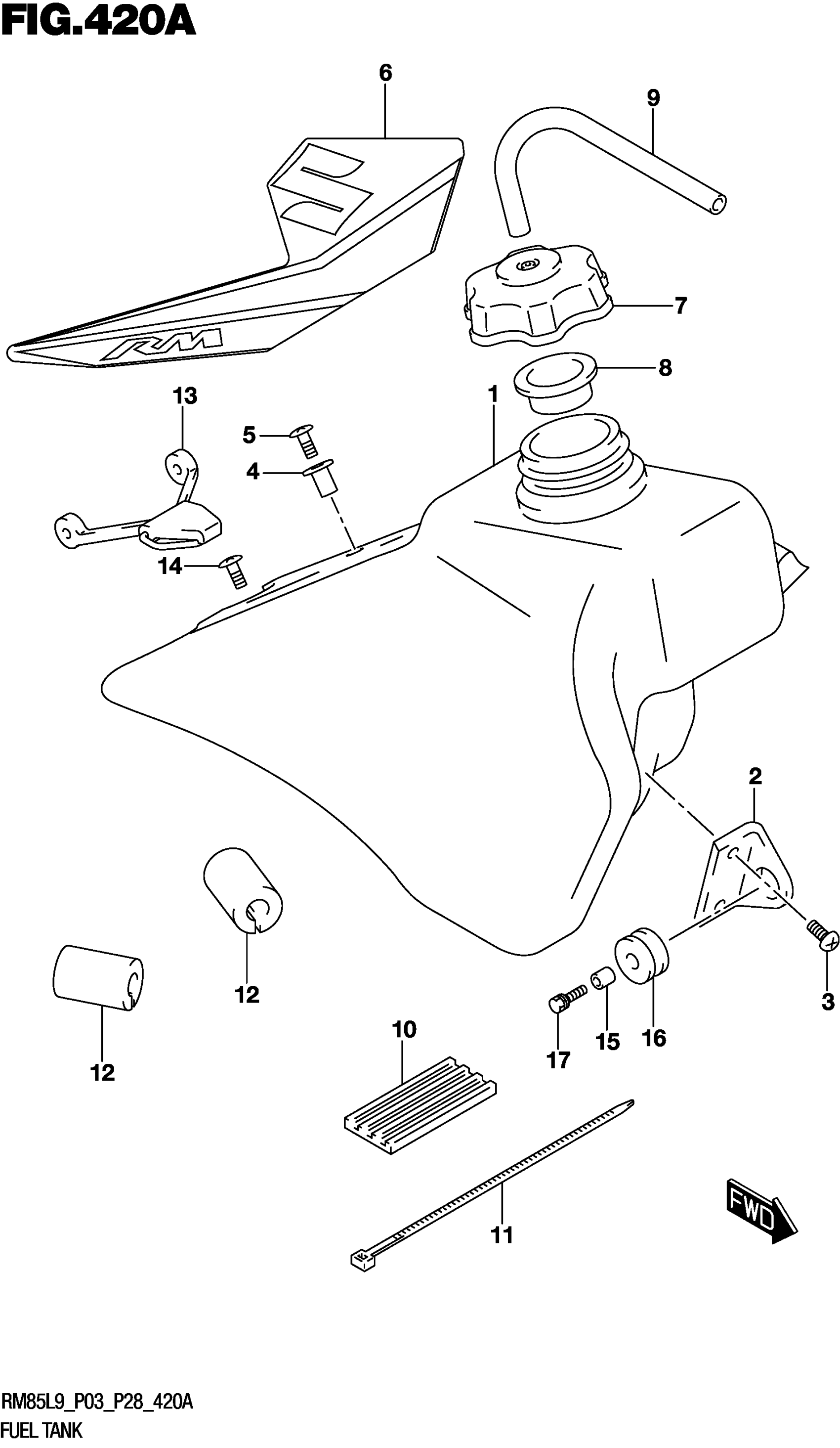

2019 Suzuki RM85L9 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK,FUEL (YELLOW)

44110-03B10-YU1

1
Out of stock

2

.BRACKET,FUEL TANK FR

44131-27C01

2
Out of stock

3

SCREW

02142-0612B

4
Out of stock

4

HOOK, SEAT FR

44132-27C01

1
Out of stock

5

.SCREW

02142-0620B

1
Out of stock

6

TAPE SET, FUEL TANK

68111-03B80-BTE

1
Out of stock

7

CAP,FUEL TANK FILLER

44210-37F00

1
Out of stock

8

GASKET,FUEL TANK FILLER CAP This part replaces 44248-27C00.

44248-27C01

1
Out of stock

9

HOSE,5X10X600 | L:600->280 This part replaces 09352-50823-600.

44421-13ER0

1
Out of stock

10

CUSHION,UPPER FRONT

44541-14300

2
Out of stock

11

CLAMP (L:250)

09407-25402

2
Out of stock

12

CUSHION,UPPER REAR

44542-17300

2
Out of stock

13

BAND,FUEL TANK,REAR

44560-26C00

1
Out of stock

14

SCREW (6X13.5)

09139-06134

1
Out of stock

15

SPACER (6.5X9X13.5)

09180-06268

2
Out of stock

16

CUSHION (8.7X26X14) This part replaces 14762-01B01.

14762-01B02

2
Out of stock

17

BOLT (6X35)

09116-06195

2
Out of stock
