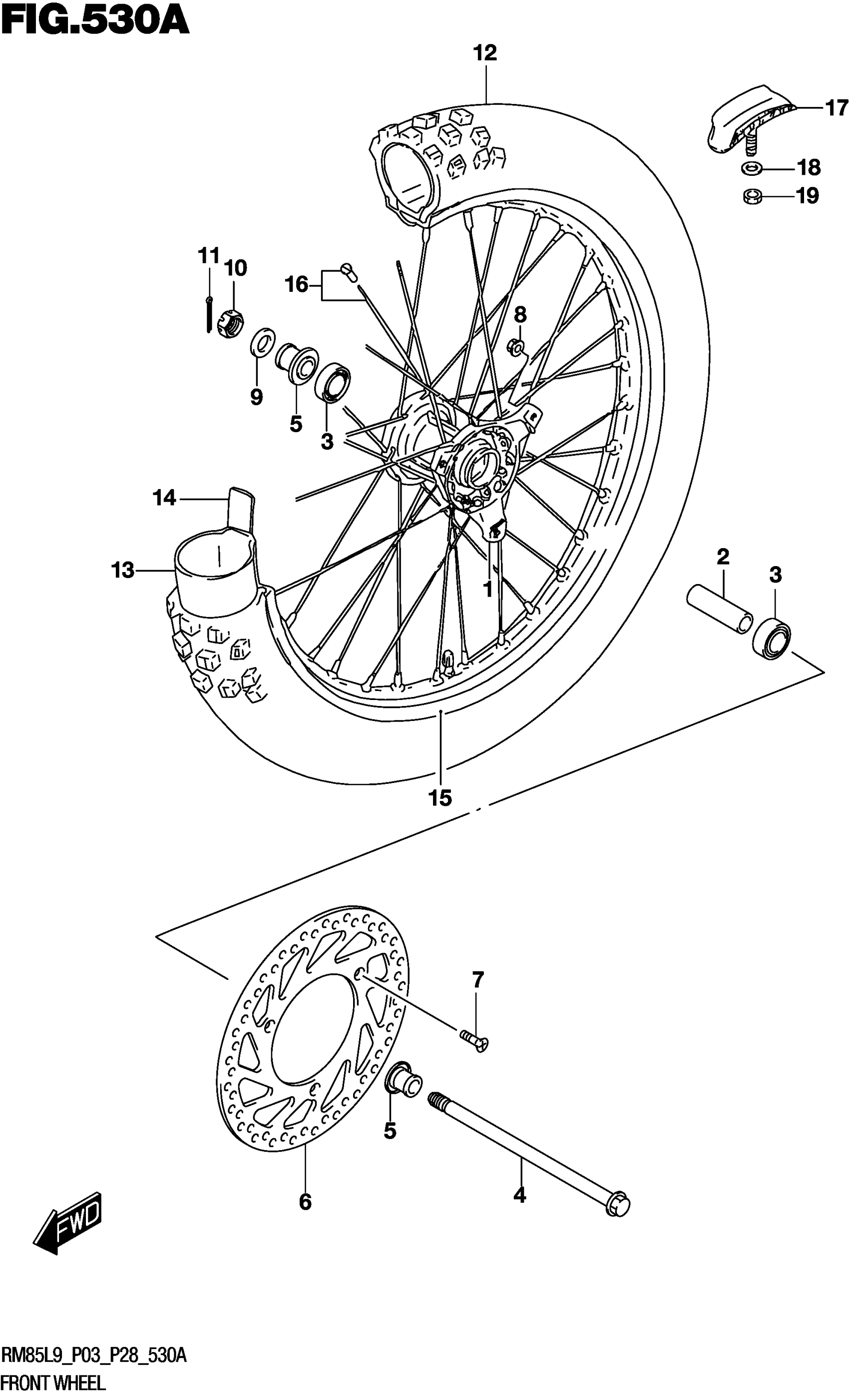

Suzuki RM85L9 (2019) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FR WHEEL

54111-02B42

$352.00

2

SPACER, FR HUB BEARING

54731-02B40

$15.43

3

BEARING

08133-62017

$16.90

4

AXLE,FRONT

54711-03B00

$52.68

5

SPACER, FR AXLE

54740-02B40

$14.76

6

DISC,FRONT BRAKE

59221-03B00

$253.12

7

SCREW (6X22)

09126-06009

$2.95

8

NUT

08319-3106A

$2.01

9

WASHER

08211-12204

$4.70

10

NUT

08314-4012B

$4.03

11

PIN

04111-2020A

$1.22

12

TIRE,FR,70/100-17 (70/100-17

55110-02B70

Unavailable

12

TIRE,FR,70/100-17 (70/100-17

55110-02B70

Unavailable

13

TUBE ASSY,WHEEL INNER

55200-02B70

Unavailable

14

PROTECTOR,WHEEL INNER TUBE

55261-02B40

$7.77

15

RIM,FR WHEEL (17X1.40)

55311-02B10

Unavailable

16

SPOKE SET,FRONT WHEEL

55320-02B10

$72.20

17

STOPPER, BEAD

65270-28600

$61.78

18

WASHER

08322-0108B

$2.37

19

NUT

08310-0008B

$2.95
