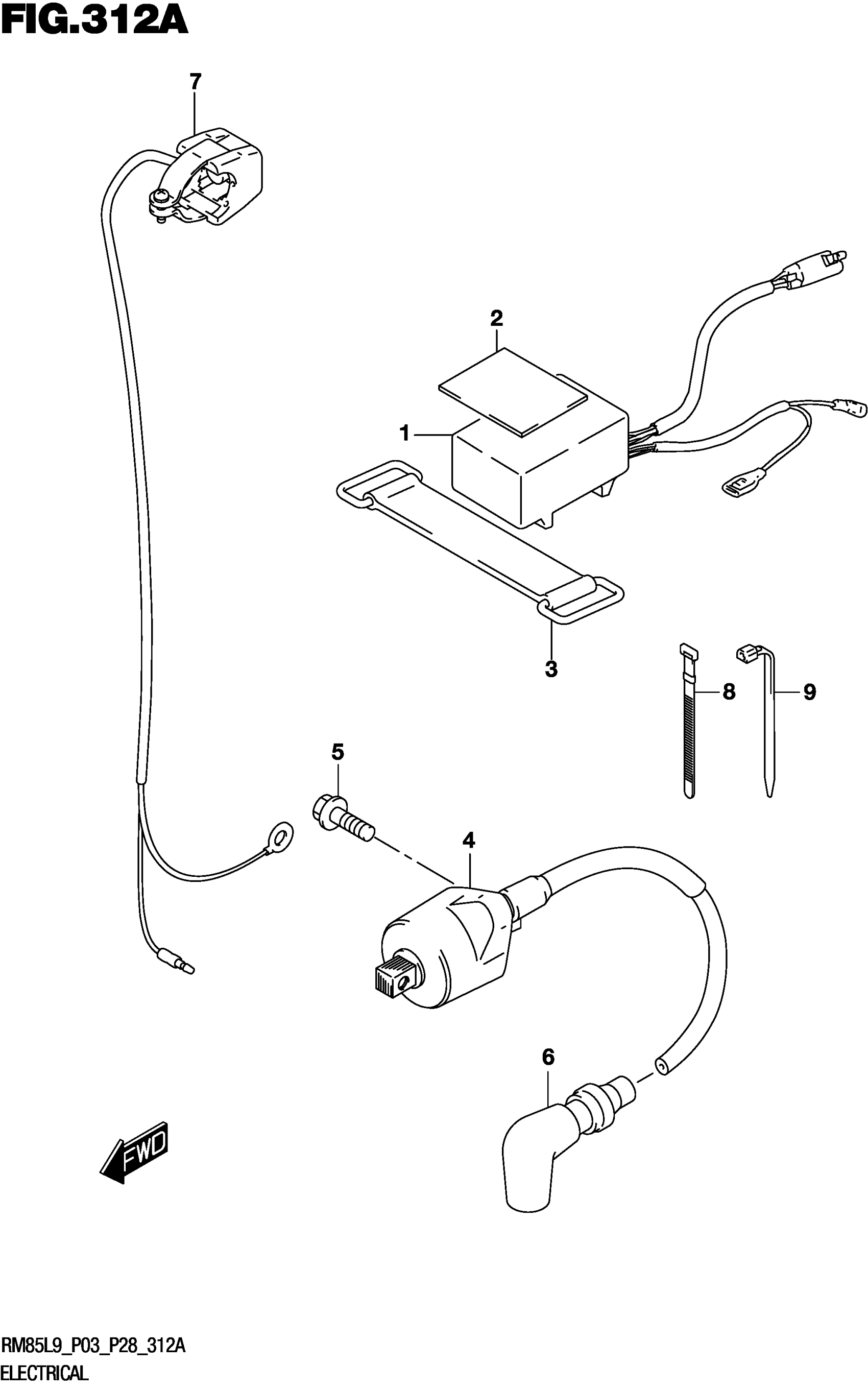

Suzuki RM85L9 (2019) ELECTRICAL Diagram

#

Description
Price

1

CDI UNIT

32900-02B31

$466.57

2

CUSHION (30X50X3) | CUT AS REQUIRED

33652-36000

$2.87

3

BAND

09462-00034

$3.89

4

COIL ASSY,IGNITION

33410-03B00

$133.88

5

BOLT

01547-0620A

$2.01

6

CAP,SPARK PLUG

33510-20A02

$22.33

7

SWITCH ASSY,ENGINE STOP

37820-14X50

$44.43

8

CLAMP (L:120)

09407-12402

$2.80

9

CLAMP (L:90)

09407-11402

$1.81
