2018 Suzuki RM85L8 Rear Shock Absorber Diagram

← All diagrams

Find the part on the Rear Shock Absorber diagram for your 2018 Suzuki RM85L8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

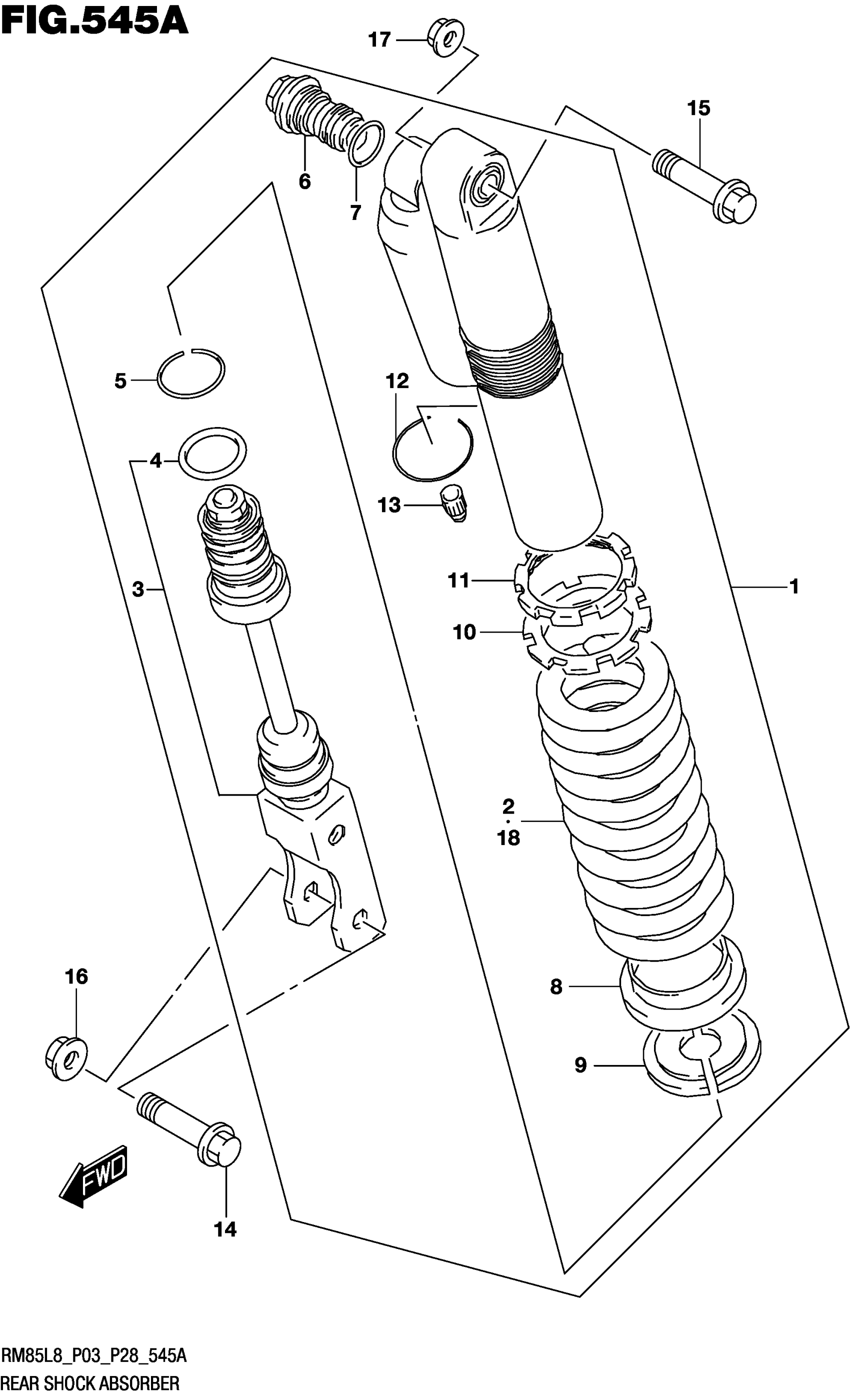

2018 Suzuki RM85L8 Rear Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ABSORBER,RR SHOCK (RED) This part replaces 62100-03BH0-YKS.

62100-03BH1-YKS

1
Out of stock

2

.SPRING,REAR (K=4.6)

62211-03B90

1
Out of stock

3

.ROD,PISTON

62120-03BB0

1
Out of stock

4

..O RING

62153-03BB0

1
Out of stock

5

.RING,STOPPER

62279-03BB0

1
Out of stock

6

.BOLT,PLUG

62130-03B30

1
Out of stock

7

..O RING

51177-36E20

1

$5.43

In stock

8

.SEAT,SPRING

62249-17C00

1
Out of stock

9

.SEAT,SPRING STOPPER

62225-17C00

2
Out of stock

10

.ADJUSTER,SPRING

62191-19C00

1
Out of stock

11

.NUT,SPRING ADJUSTER

62194-03BB0

1
Out of stock

12

.RING,STOPPER

62278-03B30

1
Out of stock

13

.CAP

51294-20400

1
Out of stock

14

BOLT,RR SHOCK ABSORBER LWR

62221-37F30

1
Out of stock

15

BOLT,REAR CUSHION ROD,UPPER (

62648-14500

1
Out of stock

16

NUT | LOWER

09159-10067

1
Out of stock

17

NUT (M10) | UPPER

09159-10115

1
Out of stock

18-1

SPRING,REAR (K=4.4) | OPT

62211-03B80

1
Out of stock

18-2

.SPRING,REAR (K=4.8) | OPT

62211-03BA0

1
Out of stock
