2018 Suzuki RM85L8 Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 2018 Suzuki RM85L8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

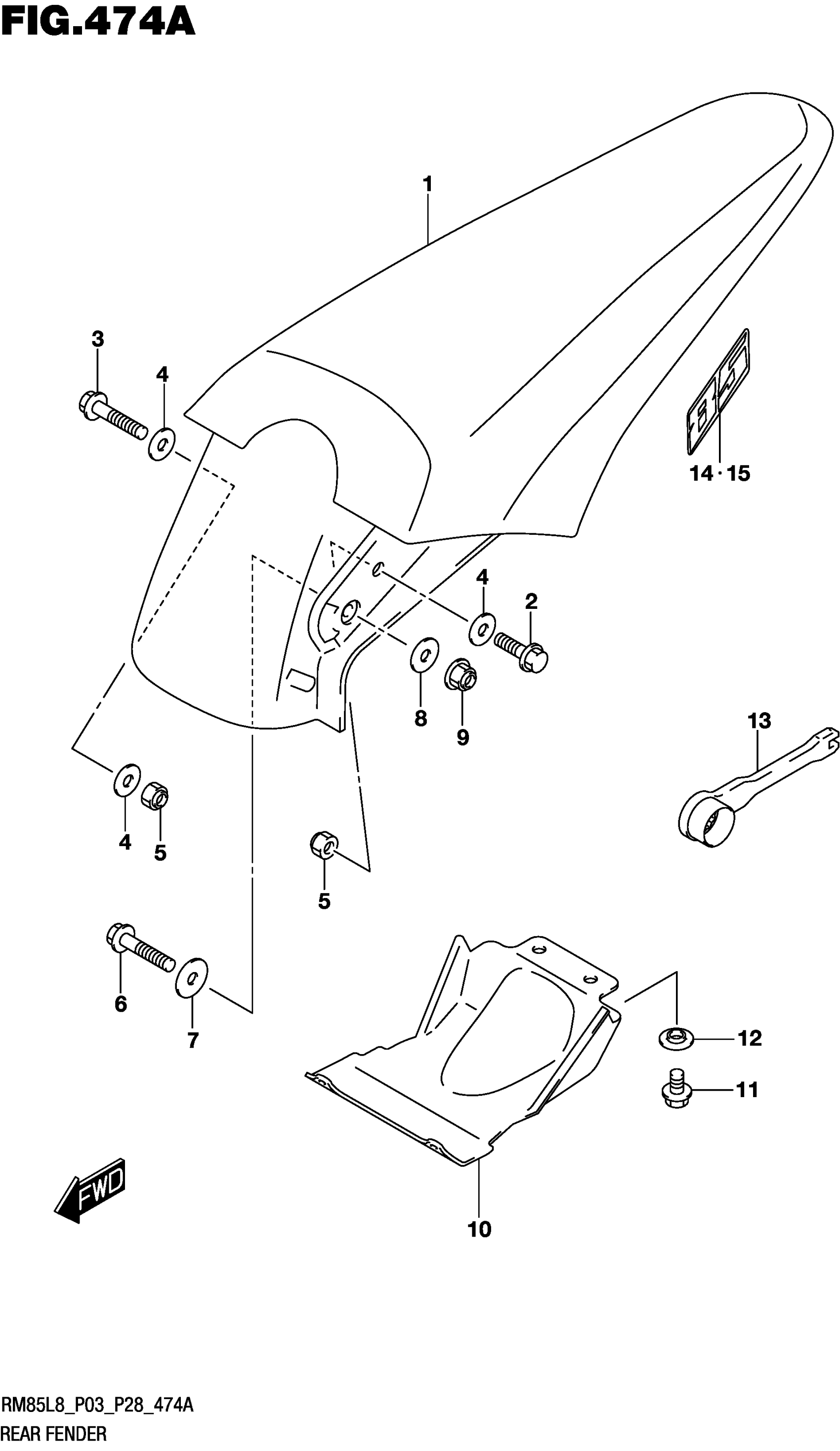

2018 Suzuki RM85L8 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER,REAR (YELLOW)

63111-03B60-YU1

1
Out of stock

2

BOLT | LH

01547-0620A

1
Out of stock

3

BOLT (6X30) | RH

09103-06251

1
Out of stock

4

WASHER (6.5X20X1.2)

09160-06077

4
Out of stock

5

.NUT

08319-2106A

2
Out of stock

6

BOLT (6X30)

09103-06251

2
Out of stock

7

WASHER (6.5X26X2.3)

09160-06135

2
Out of stock

8

WASHER This part replaces 09160-06132.

09160-06084

2
Out of stock

9

NUT

08319-3106B

2
Out of stock

10

MUDGUARD,RR FENDER FR

63351-03B00

1
Out of stock

11

BOLT

01547-0610B

2
Out of stock

12

WASHER

09169-06010

2
Out of stock

13

SPANNER,BOX (21 & 5.8)

09816-00182

1
Out of stock

14

EMBLEM,REAR FENDER RH (YELLOW

68175-03B50-GY8

1
Out of stock

15

EMBLEM,REAR FENDER LH (YELLOW

68176-03B50-GY8

1
Out of stock
