Description

Price

1

CALIPER ASSY, FRONT LH

59300-03B30-999

$321.05

2

.PISTON SET

59301-03810

$73.57

3

..SEAL SET,PISTON

59300-40810

$39.43

4

.SPRING, PAD

59315-20E00

$16.77

5

.BOOT, AXLE

59312-36500

$4.78

6

.INSULATOR, AXLE

59313-36500

$5.48

7

.PIN,PAD

69141-03B00

$26.15

8

.CLIP, PAD PIN

69142-45000

$3.97

9

.BLEEDER

59121-03B00

$23.17

10

CAP, BLEEDER This part replaces 59122-02B40.

55156-66310

$4.73

11

.GUIDE, PAD

59116-20E00

$8.21

12

.CARRIER,CALIPER LH

59350-03B00

$100.95

13

PAD & SHIM SET

59301-03820

$54.93

14

.SHIM,PAD

59371-03B00

$17.40

15

BOLT (8X32)

09103-08377

$3.19

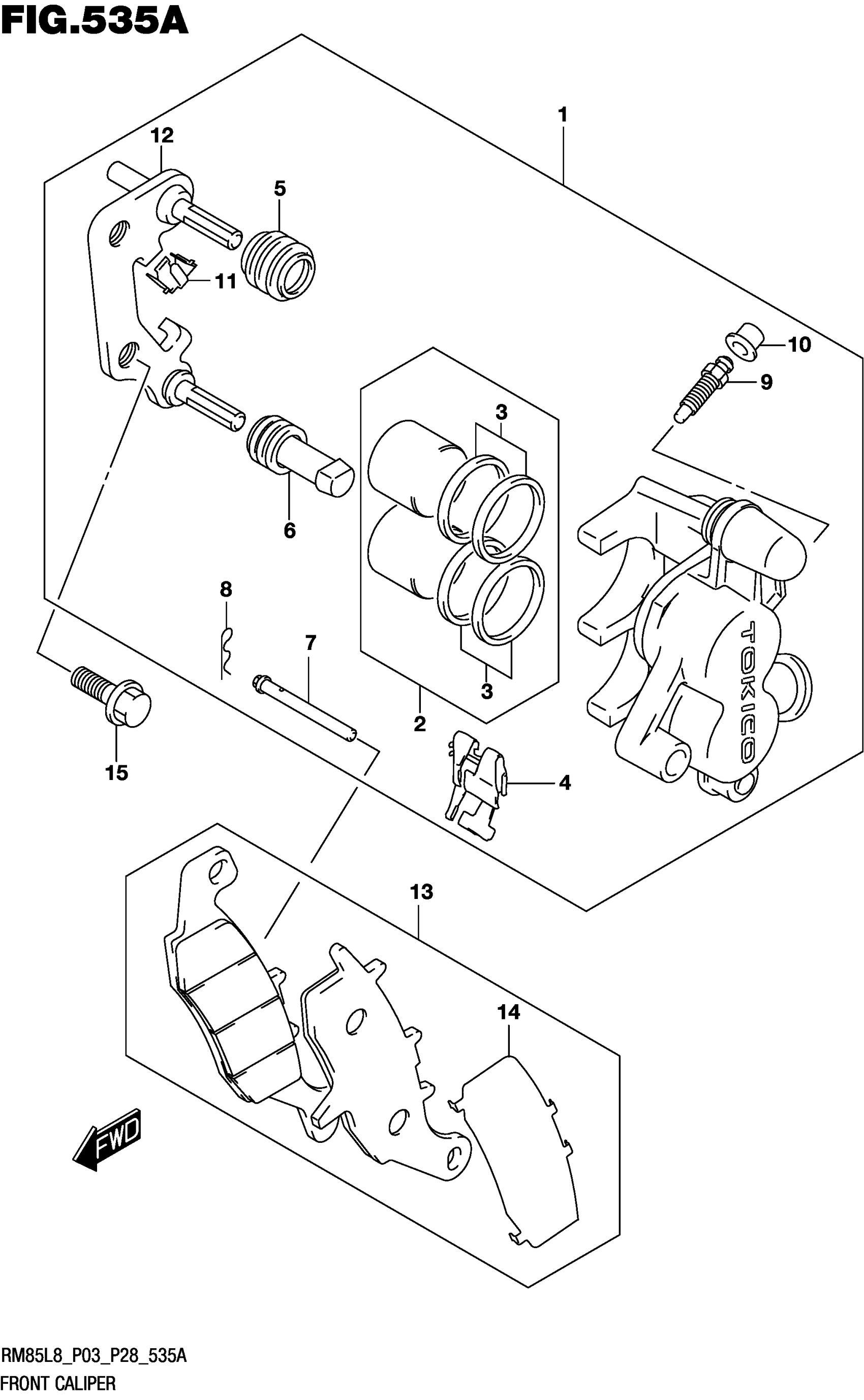

Suzuki RM85L8 (2018) FRONT CALIPER Diagram
