2018 Suzuki RM85L8 Exhaust Valve Diagram

← All diagrams

Find the part on the Exhaust Valve diagram for your 2018 Suzuki RM85L8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

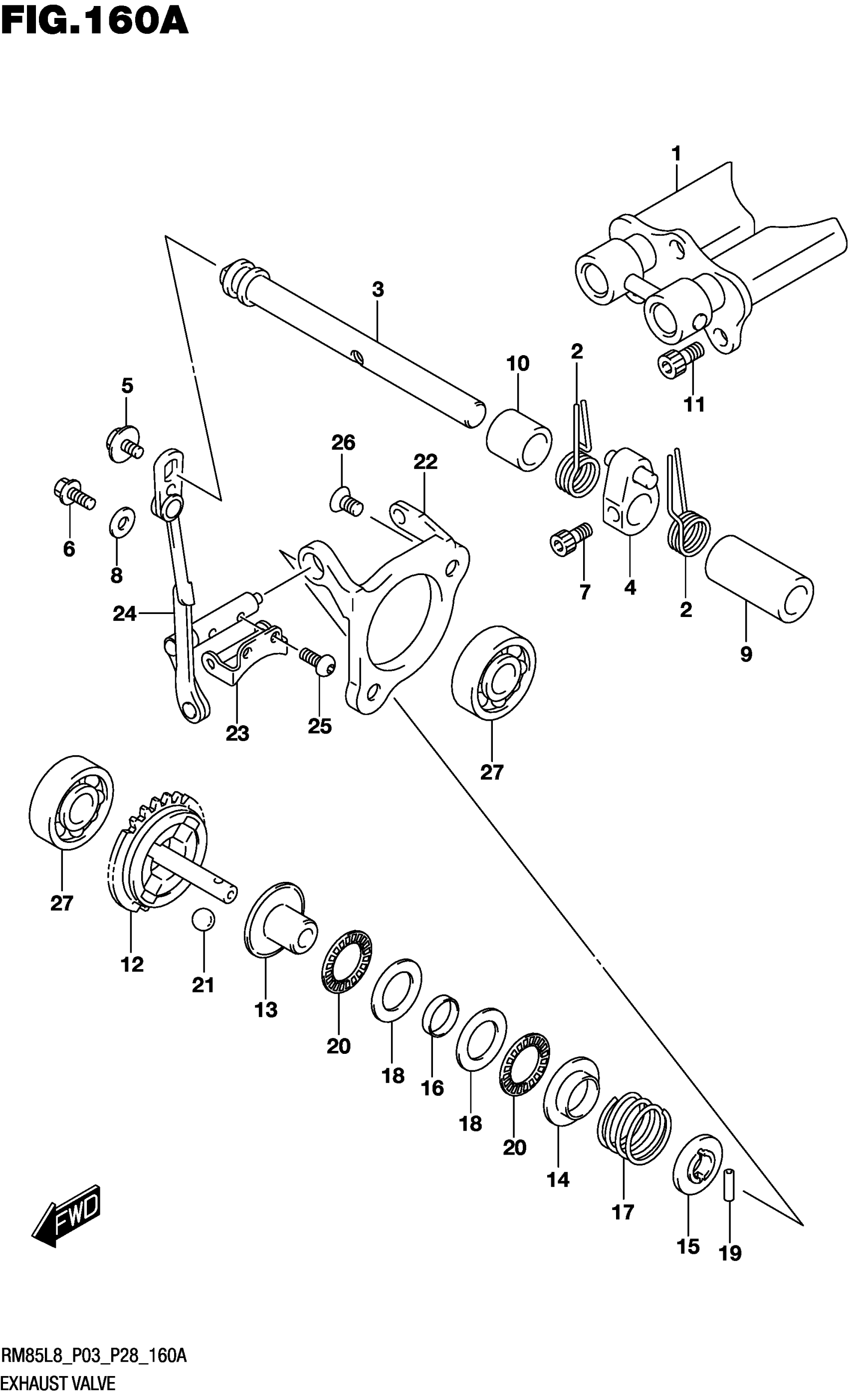

2018 Suzuki RM85L8 Exhaust Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE ASSY,EXHAUST VALVE

11250-03B10

1
Out of stock

2

SPRING,EXHAUST VALVE SHAFT AR

11257-36F11

2
Out of stock

2

SPRING,EXHAUST VALVE SHAFT AR

11257-36F11

1
Out of stock

3

SHAFT,EXHAUST VALVE

11259-03B10

1
Out of stock

4

ARM,EXHAUST VALVE SHAFT

11270-36F10

1
Out of stock

5

BOLT (5X10)

09103-05022

1
Out of stock

6

BOLT

01547-0610A

1
Out of stock

7

BOLT (4X8)

09106-04003

1
Out of stock

8

WASHER (6.5X14X2.3)

09160-06127

1
Out of stock

9

SPACER (8.4X12X13)

09180-08138

1
Out of stock

10

SPACER (8.5X12X11)

09180-08189

1
Out of stock

11

BOLT

07130-0512A

3
Out of stock

12

GOVERNOR SET,EXHAUST

12670-03810

1
Out of stock

13

.GOVERNOR,DRIVEN

12672-36F10

1
Out of stock

14

.STOPPER,GOVERNOR SPRING NO.1

12674-36F10

1
Out of stock

15

.STOPPER,GOVERNOR SPRING N0.2

12675-36F11

1
Out of stock

16

.SPACER,GOVERNOR

12676-36F10

1
Out of stock

17

.SPRING,GOVERNOR

12677-03B00

1
Out of stock

18

.SHIM (15X28X1)

09181-15223

2
Out of stock

19

.ROLLER (3X12.5)

09261-03017

1
Out of stock

20

BEARING (15X28X2)

09263-15003

2
Out of stock

21

BALL

06111-12004

4
Out of stock

22

BASE,ACTUATOR

12681-03B00

1
Out of stock

23

ARM,ACTUATOR

12682-36F21

1
Out of stock

24

ACTUATOR,EXHAUST VALVE

12689-03B10

1
Out of stock

25

BOLT (4X8)

09106-04004

2
Out of stock

26

.SCREW (5X10)

09120-05003

2
Out of stock

27

BEARING (8X22X7)

09262-08005

2
Out of stock
