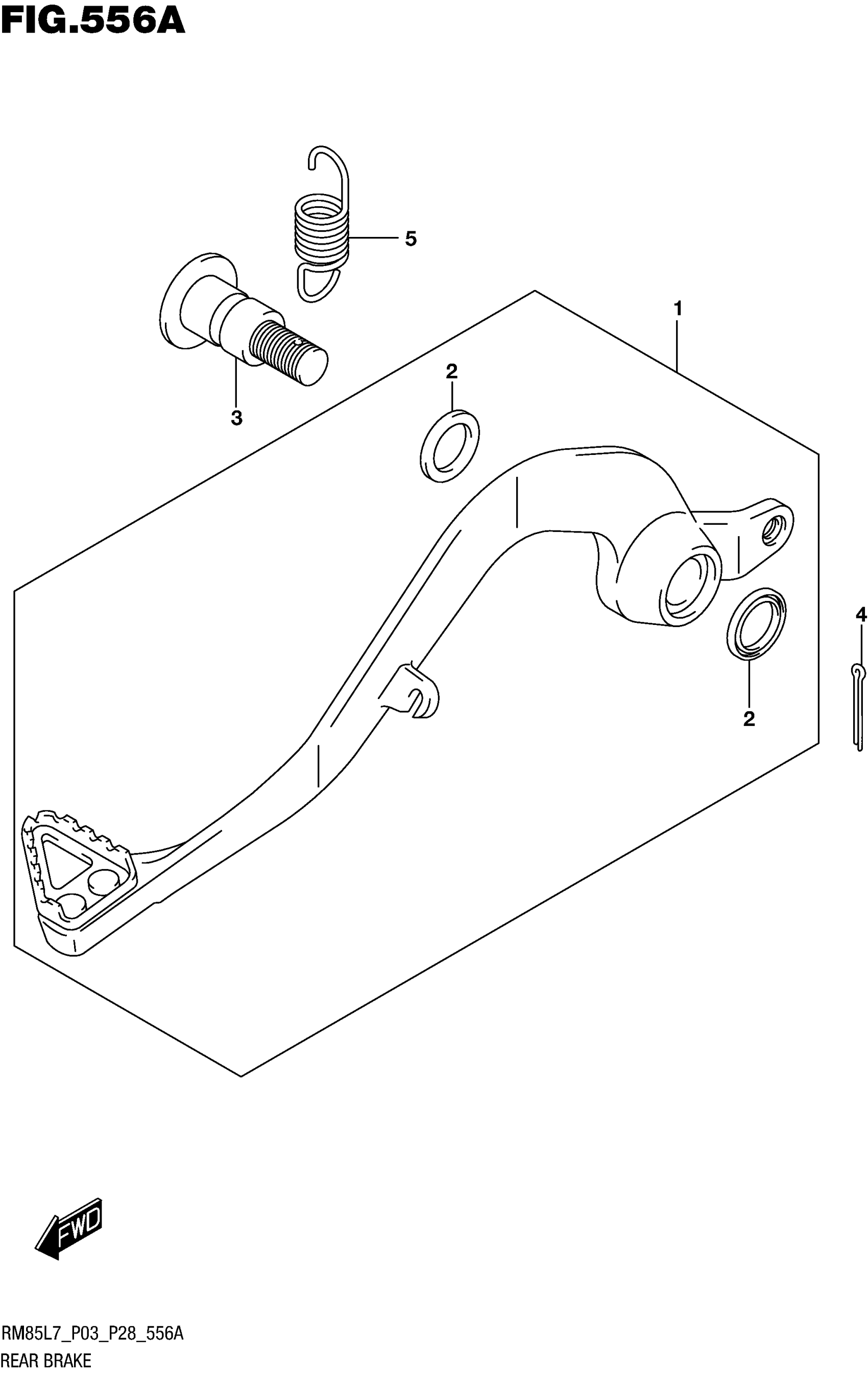

Suzuki RM85L7 (2017) REAR BRAKE Diagram

#

Description

Price

1

PEDAL ASSY, BRAKE

43100-03B10

$254.98

2

.OIL SEAL (15X21X3)

09284-15006

$3.21

3

SHAFT, BRAKE PEDAL

43142-37F00

$21.41

4

COTTER PIN

04111-2020A

$1.22

5

SPRING

09443-13024

$4.12
