Description

Price

1

RADIATOR, WATER

17710-03B00

$696.97

2

.NUT

09148-06015

$2.80

3

CAP, RADIATOR

17730-08J00

$38.90

4

HOSE (5X8X2000) | L:1000->480 This part replaces 09351-50803-00A.

09351-50803-00B

$8.21

5

CUSHION, RADIATOR SPRT

17787-19A00

$3.26

6

BOLT (6X25)

09116-06186

$2.66

7

SPACER (6.5X10.5X14.1)

09180-06243

$4.92

8

HOSE, RADIATOR INLET

17851-03B00

$26.03

9

HOSE, RADIATOR OUTLET

17852-03B00

$30.87

10

CLAMP

09402-28513

$6.31

11

COVER, RADIATOR (YELLOW)

17762-37F10-YU1

$58.20

12

BOLT (6X12)

01547-0612A

$2.01

13

WASHER (6.3X16X1)

09169-06053

$1.10

14

LOUVER, RADIATOR

17831-36E00

$17.46

15

TAPE, RADIATOR COVER LH

68670-03BM0-BDT

Unavailable

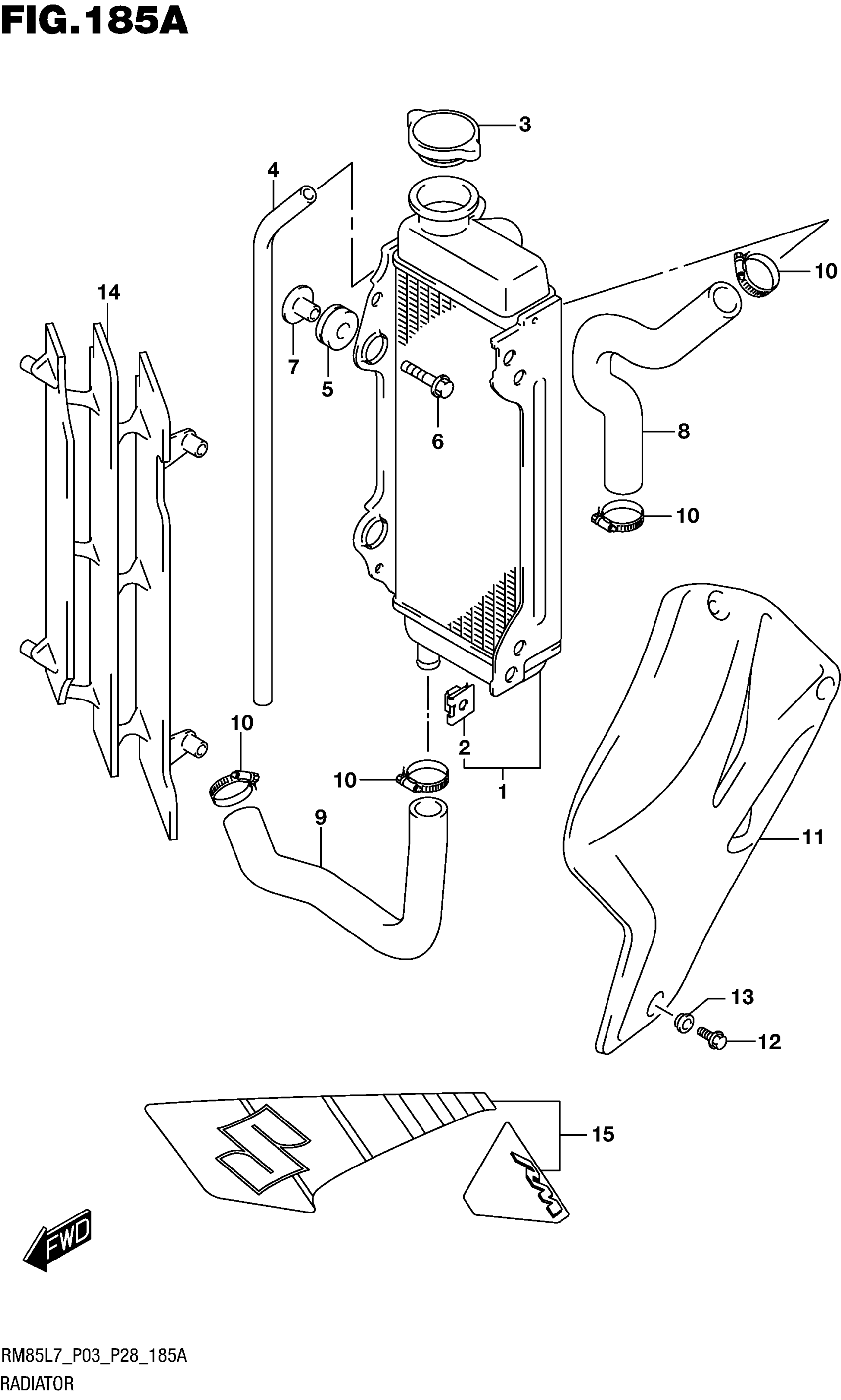

Suzuki RM85L7 (2017) RADIATOR Diagram
