2017 Suzuki RM85L7 Label Diagram

← All diagrams

Find the part on the Label diagram for your 2017 Suzuki RM85L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

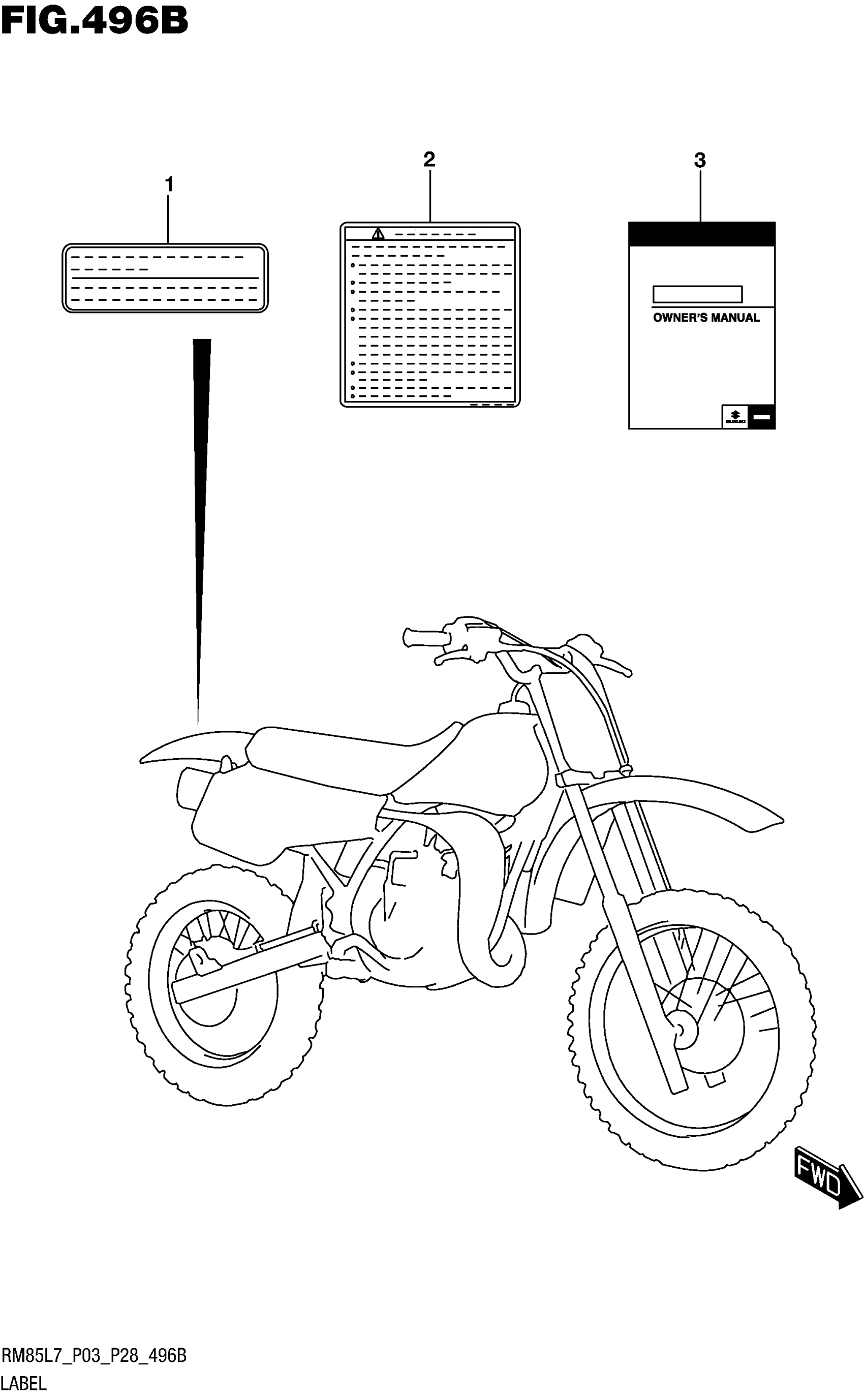

2017 Suzuki RM85L7 Label Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LABEL, WARNING

68367-37F00

1
Out of stock

2-1

LABEL, WARNING (ENGLISH)

68921-03B71

—
Out of stock

2-2

LABEL, WARNING (FRENCH)

68921-03B81

—
Out of stock

3-1

MANUAL, OWNER'S (ENGLISH)

99011-02B90-01A

—
Out of stock

3-2

MANUAL, OWNER'S (FRENCH)

99011-02B90-04F

—
Out of stock
