Description

Price

1

FRAME (GRAY)

41100-03BB1-YU8

Unavailable

2

TUBE, FRAME SIDE LH (GRAY)

41670-02B30-YU8

Unavailable

3

BOLT (8X22) | UPPER

09100-08274

$4.12

4

BOLT (8X16) | LOWER

09100-08284

$4.20

5

WASHER (8.5X18X2) | LOWER

09160-08120

$2.21

6

ROLLER, CHAIN CONTROL

43911-35B00

$18.81

7

SPACER (8.6X12.2X25.5)

09180-08214

$5.63

8

BOLT (8X38) | UPPER

09103-08178

$4.29

9

.BOLT (8X55) | LOWER

09103-08339

$3.19

10

SHIM (8X16X1)

09181-08167

$1.98

11

NUT

08319-3108A

$2.31

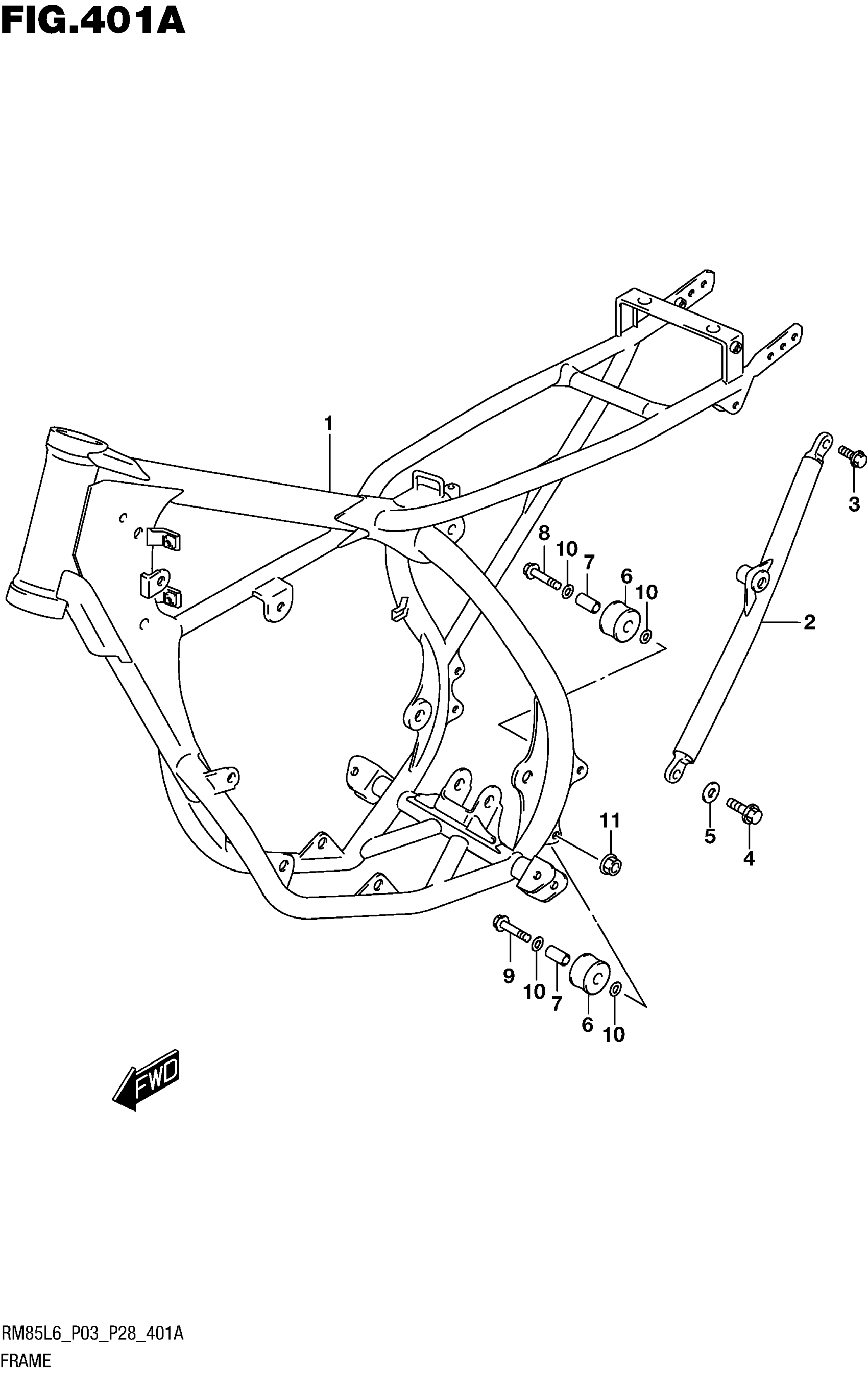

Suzuki RM85L6 (2016) FRAME Diagram
