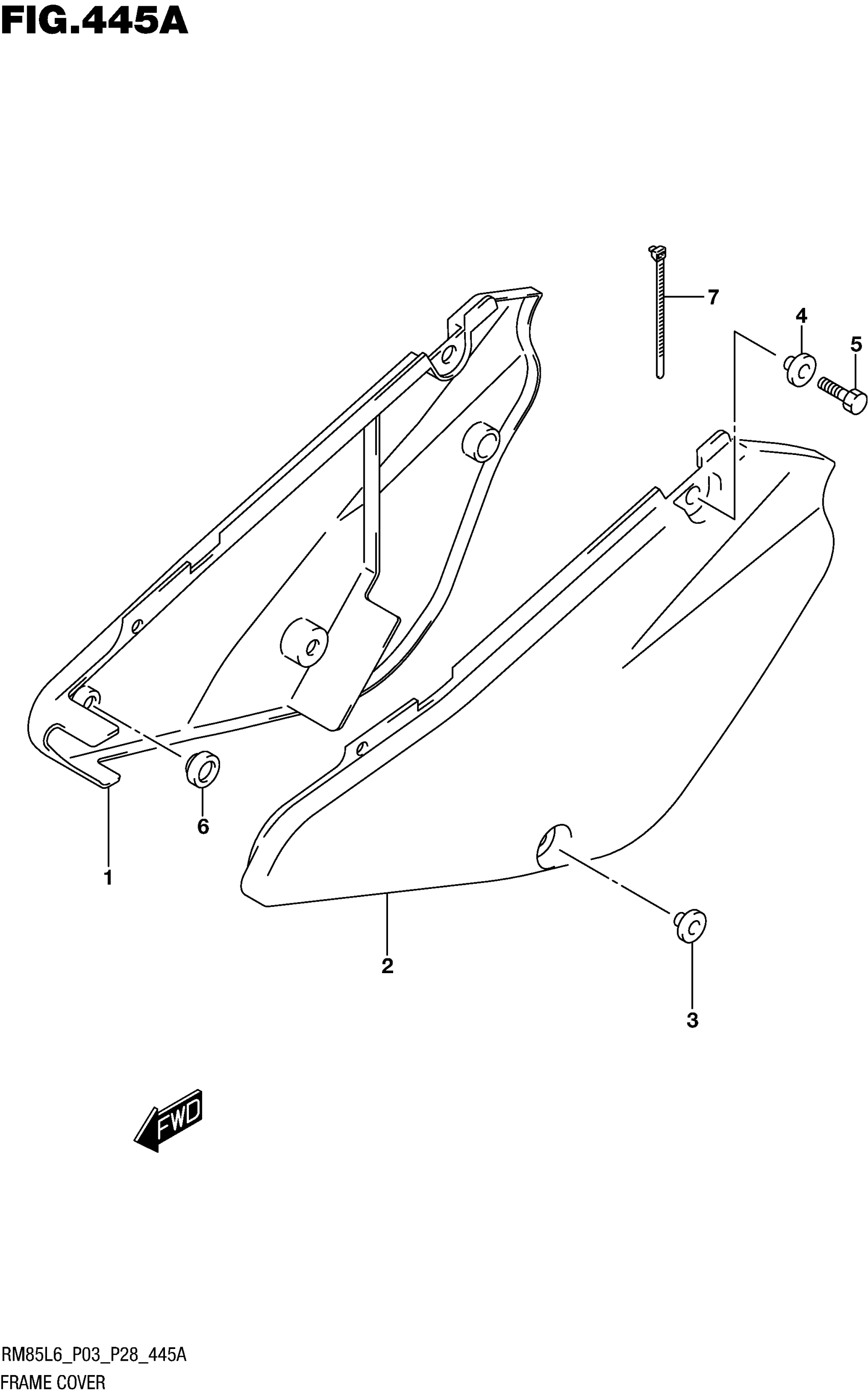

Suzuki RM85L6 (2016) FRAME COVER Diagram

#

Description

Price

1

COVER, FRAME RH (YELLOW)

47111-03B70-YU1

$84.87

2

COVER, FRAME LH (YELLOW)

47211-03B70-YU1

$86.48

3

WASHER

09169-06010

$2.71

4

WASHER (6.5X20X1.6)

09160-06066

$1.97

5

BOLT (6X16)

01547-0616A

$2.09

6

CUSHION

09321-10024

$4.55

7

CLAMP (L:150)

09407-15401

$2.92
