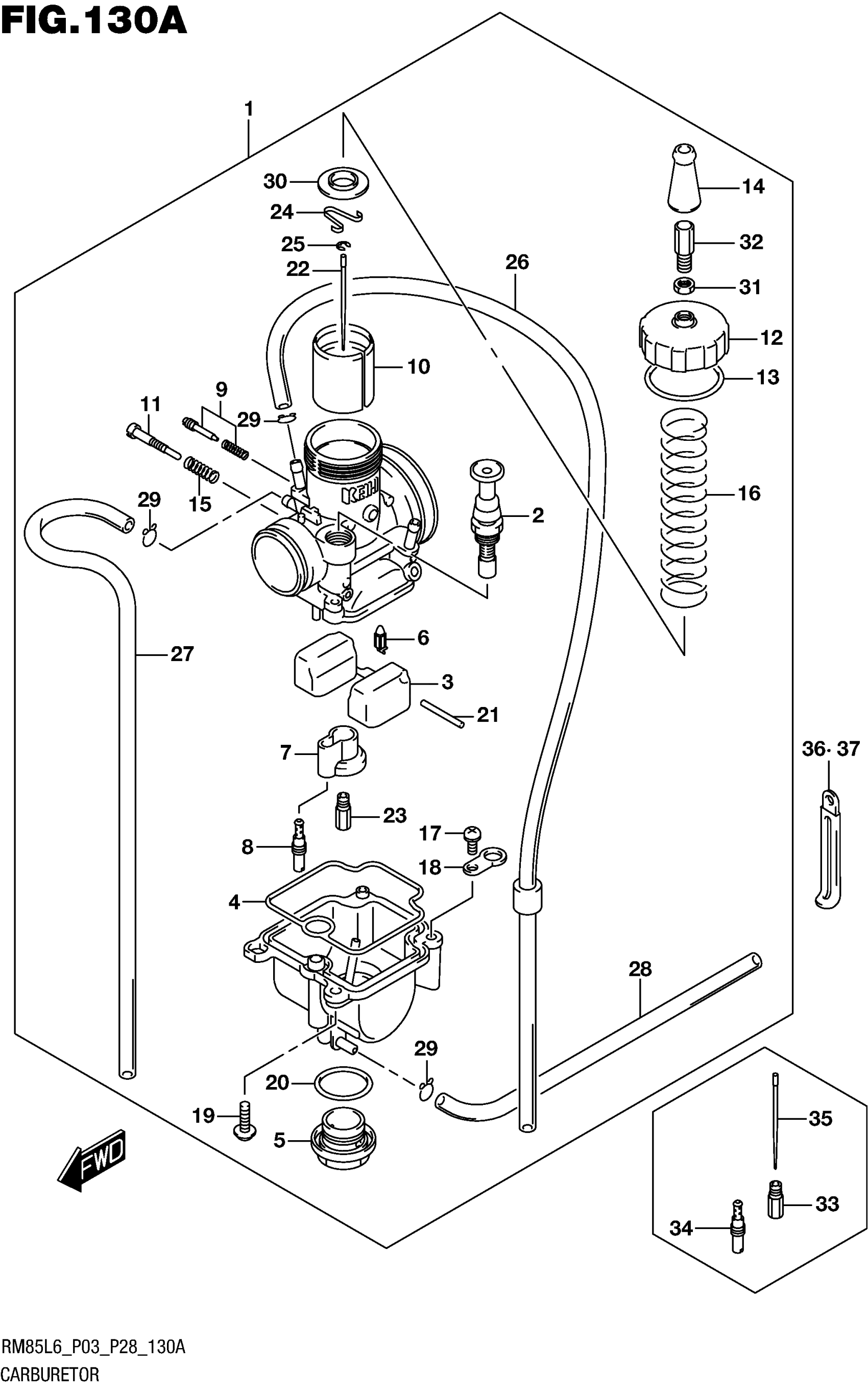

Suzuki RM85L6 (2016) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY This part replaces 13200-03B30.

13200-03B31

$214.72

2

.VALVE ASSY, STARTER

13410-03B00

$104.73

3

.FLOAT ASSY

13252-03B00

$39.95

4

.GASKET

13251-03B00

$30.28

5

.BOLT, DRAIN

13247-28E00

$29.07

6

.VALVE ASSY, NEEDLE

13370-03B01

$62.32

7

.HOLDER, JET

13331-03B00

$28.45

8

.JET, SLOW (50)

09492-50023

$18.87

9

.ADJUST SCREW SET

13269-03B00

$41.63

10

.THROTTLE VALVE

13551-03B00

$123.88

11

.SCREW, STOP

13267-03B00

$17.02

12

.COVER

13261-03B00

$40.83

13

.GASKET

13266-03B00

$7.03

14

.CAP

13681-03B00

$6.52

15

.SPRING

13268-03B00

$9.25

16

.SPRING

13573-03B00

$19.12

17

.SCREW

02112-14087

$2.58

18

.PLATE

13693-28E00

$9.25

19

.SCREW

13601-14F80

$4.05

20

.O RING

13246-28E00

$6.67

21

.PIN, FLOAT

13254-92311

$2.31

22

.NEEDLE (24NAAH)

13383-03B20

$22.25

23

.JET, MAIN (128)

09491-25020

$19.22

24

.CLIP

13398-03B00

$9.70

25

.CLIP, NEEDLE

13394-28E00

$5.77

26

.PIPE ASSY This part replaces 13686-03B00.

13686-03B01

$8.65

27

.HOSE, (4X7X620) | L:620->380

13686-36E00

$9.41

28

.HOSE, (4X7X620) | L:620->300

13686-36E00

$9.41

29

.CLIP

09401-06101

$2.06

30

.VALVE PLATE

13629-03B00

$6.30

31

.NUT

13661-03B00

$6.00

32

.ADJUST BOLT

13577-03B00

$9.62

33

.JET, NEEDLE

13341-03B00

$20.23

33-1

JET, MAIN (115) | OPT

09491-23027

$19.58

33-2

JET, MAIN (118) | OPT

09491-23028

Unavailable

33-3

JET, MAIN (120) | OPT

09491-24030

$19.58

33-4

JET, MAIN (122) | OPT

09491-24031

$19.58

33-5

JET, MAIN (125) | OPT

09491-25019

$19.58

33-6

JET, MAIN (128) | OPT

09491-25020

$19.22

33-7

JET, MAIN (130) | OPT

09491-26017

$19.58

33-8

JET, MAIN (132) | OPT

09491-26018

$19.58

33-9

JET, MAIN (135) | OPT

09491-27016

Unavailable

33-10

JET, MAIN (138) | OPT

09491-27017

Unavailable

33-11

JET, MAIN (140) | OPT

09491-28019

Unavailable

33-12

JET, MAIN (142) | OPT

09491-28020

$19.58

33-13

JET, MAIN (145) | OPT

09491-29014

Unavailable

34-1

JET, PILOT (45) | OPT

09492-45032

$18.87

34-2

JET, PILOT (48) | OPT

09492-48013

$18.87

34-3

JET, PILOT (50) | OPT

09492-50023

$18.87

34-4

JET, PILOT (52) | OPT

09492-52011

$19.22

34-5

JET, PILOT (55) | OPT

09492-55017

$19.58

34-6

JET, PILOT (58) | OPT

09492-58001

$20.13

35-1

NEEDLE (24NAAF) | OPT

13383-03B00

Unavailable

35-2

NEEDLE (24NAAG) | OPT

13383-03B10

Unavailable

35-3

NEEDLE (24NAAH) | OPT

13383-03B20

$22.25

35-4

NEEDLE (24NAAJ) | OPT

13383-03B30

$23.08

35-5

NEEDLE (24NAAK) | OPT

13383-03B40

$23.08

35-6

NEEDLE (24NCDF) | OPT

13383-03B50

Unavailable

35-7

NEEDLE (24NCDG) | OPT

13383-03B60

Unavailable

35-8

NEEDLE (24NCDH) | OPT

13383-03B70

Unavailable

35-9

NEEDLE (24NCDJ) | OPT

13383-03B80

Unavailable

35-10

NEEDLE (24NCDK) | OPT

13383-03B90

Unavailable

36

CLAMP (L:45)

09404-06429

$1.82

37

CLAMP (L:65) This part replaces 09404-08418.

09404-08421

$2.25
