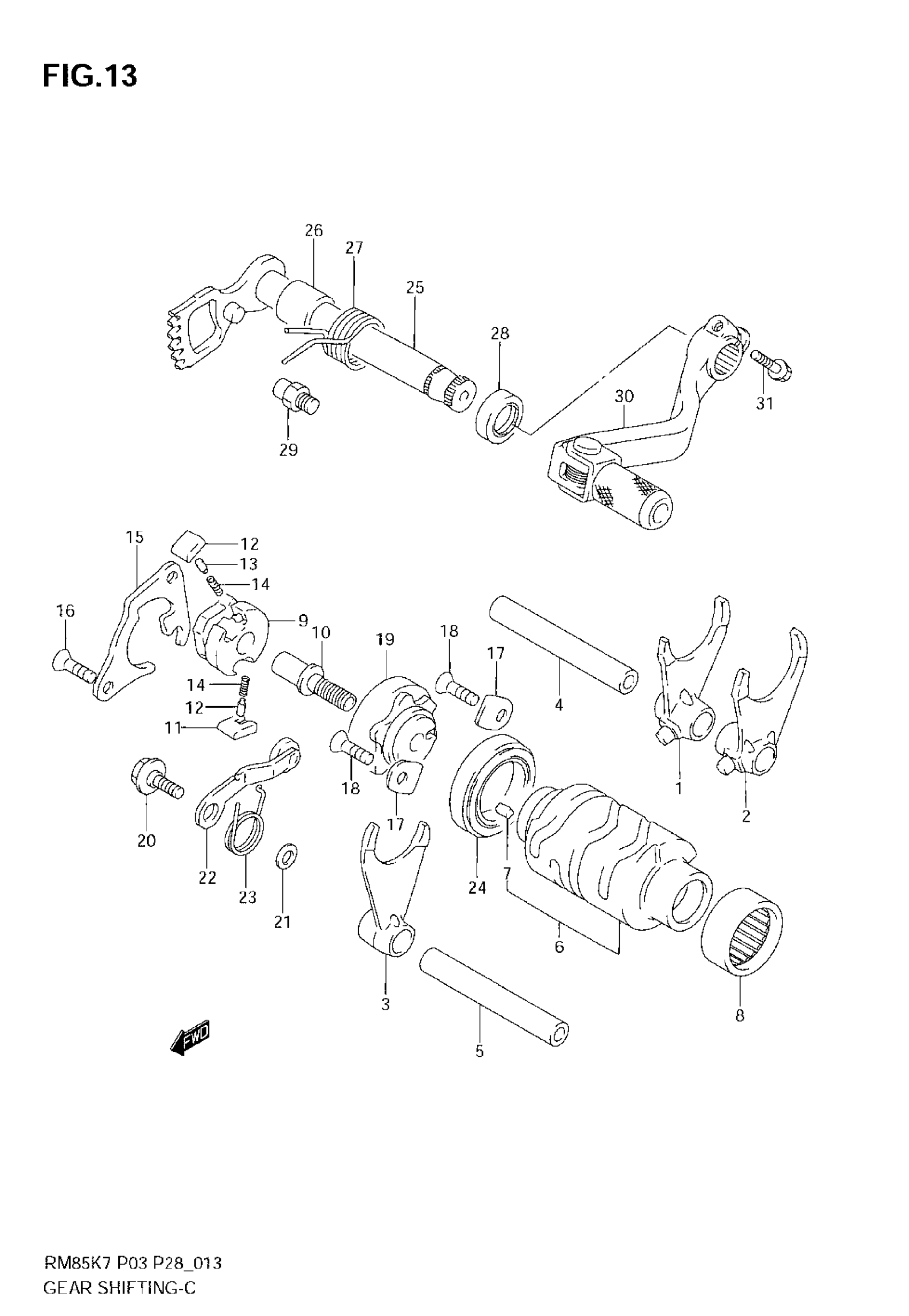

Suzuki RM85 (2008) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, NO.1

25211-02B41

$71.03

2

FORK, NO.2

25221-02B41

$71.03

3

FORK, NO.3

25231-02B40

$66.48

4

SHAFT, NO.1 (L:90)

25411-02B41

Unavailable

5

SHAFT, NO.2 (L:60)

25421-27C01

$20.82

6

CAM | Includes Item(s) 7

25310-03B10

$220.83

7

PIN (4X13.8)

04221-04089

$1.10

8

BEARING, GEAR SHIFT, LH | 25X32X12

09263-25018

$19.30

9

GEAR, GEAR SHIFT CAM DRIVEN

25322-31310

$30.40

10

PIN, SHIFT CAM DRIVEN GEAR

25313-27C02

$14.73

11

PAWL, GEAR SHIFT NO.1

25323-34201

$6.61

12

PAWL, GEAR SHIFT NO.2

25324-34201

$6.80

13

PIN (5X8)

09209-05023

$2.73

14

SPRING

09440-04003

$1.48

15

LIFTER, PAWL

25331-27C00

$27.32

16

SCREW (6X12)

09126-06011

$2.01

17

RETAINER

24741-20A00

$2.80

18

SCREW (6X12)

09126-06011

$2.01

19

PLATE, STOPPER

25381-37F30

$70.07

20

BOLT, SHIFT CAM STOPPER

09111-06041

$2.63

21

WASHER

08211-06121

$1.56

22

STOPPER, CAM

25350-27C30

$18.03

23

SPRING

25355-03B00

$5.75

24

BEARING, RH

08140-69050

$32.18

25

SHAFT, GEAR SHIFTING

25510-28C30

$108.60

26

SPACER (14X20X17.5)

09180-14016

$3.57

27

SPRING

09444-26013

$2.84

28

OIL SEAL (14X22X6)

09283-14006

$6.04

29

STOPPER, ARM

25671-01011

$4.09

30

LEVER, GEAR SHIFTING

25600-03B10

$120.40

31

BOLT

01547-06207

$2.01
