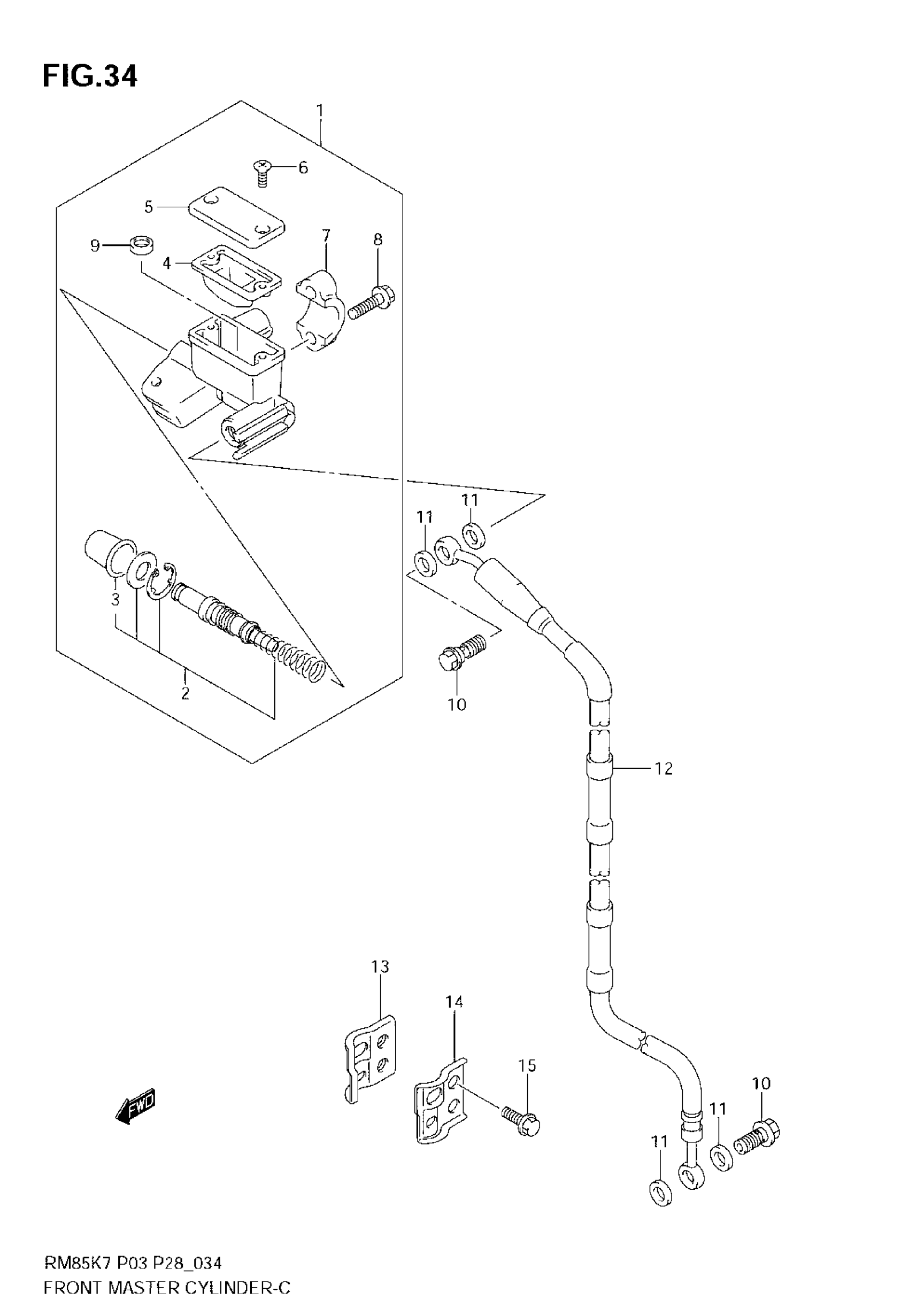

Suzuki RM85 (2008) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 9 This part replaces 59600-37F00.

59600-37F10

$252.18

2

PISTON/CUP SET

59600-37810

$66.23

3

BOOT

59666-44300

$5.30

4

DIAPHRAGM

59667-14500

$9.53

5

CAP

59669-27C01

$26.32

6

SCREW

69689-49300

$1.81

7

HOLDER

59671-27C00

$19.22

8

BOLT

59675-06F00

$5.33

9

SEPARATOR

59748-36E00

$10.58

10

UNION BOLT (10X1.25X22)

09360-10062

$5.81

11

WASHER (10X15X1.5)

09161-10009

$1.83

12

HOSE,FRONT BRAKE | RM85K7/K8 This part replaces 59480-03B80.

59480-03B82

$279.97

12

HOSE COMP,FRONT | RM85LK7/LK8 This part replaces 59480-03B90.

59480-03B92

$139.73

13

CLAMP, FRONT BRAKE HOSE | INNER

59260-03B00

$14.45

14

CLAMP, FRONT BRAKE HOSE | OUTER

59271-03B00

$12.35

15

BOLT

09103-06234

$2.17
