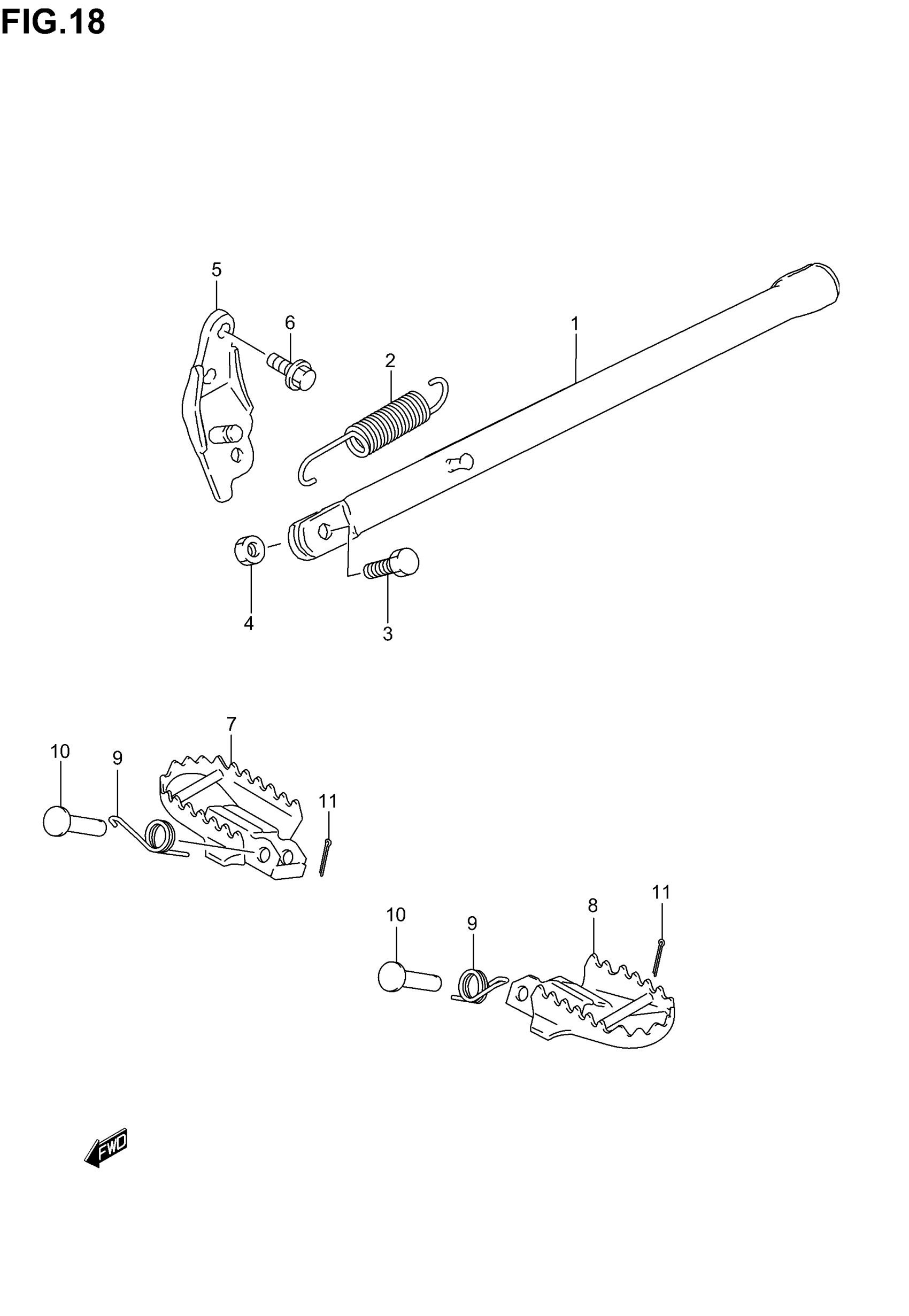

Suzuki RM85 (2006) STAND (MODEL K2/K3) Diagram

#

Description
Price

1

STAND, PROP (BLACK)

42310-02B00-019

$60.90

1

STAND, PROP | RM85LK3

42310-03B00

Unavailable

2

SPRING

09443-17007

$3.58

3

BOLT

09100-08140

$2.08

3

BOLT | RM85LK3

09100-10131

Unavailable

4

NUT This part replaces 08310-00083.

08310-0008A

$1.86

4

NUT | RM85LK3 This part replaces 08310-00103.

08310-0010A

$1.86

5

BRACKET, PROP STAND (BLACK)

42330-02B01-019

Unavailable

5

BRACKET, PROP STAND | RM85LK3

42330-03B00

Unavailable

6

BOLT This part replaces 01551-08163.

01551-0816C

$3.05

7

FOOTREST, FR RH (BLACK)

43550-03B00-019

$46.15

8

FOOTREST, FR LH (BLACK)

43560-03B00-019

$47.05

9

SPRING

09448-15004

$2.33

10

PIN

09200-10013

$2.78

11

PIN

09204-01002

$1.56
