Partiron

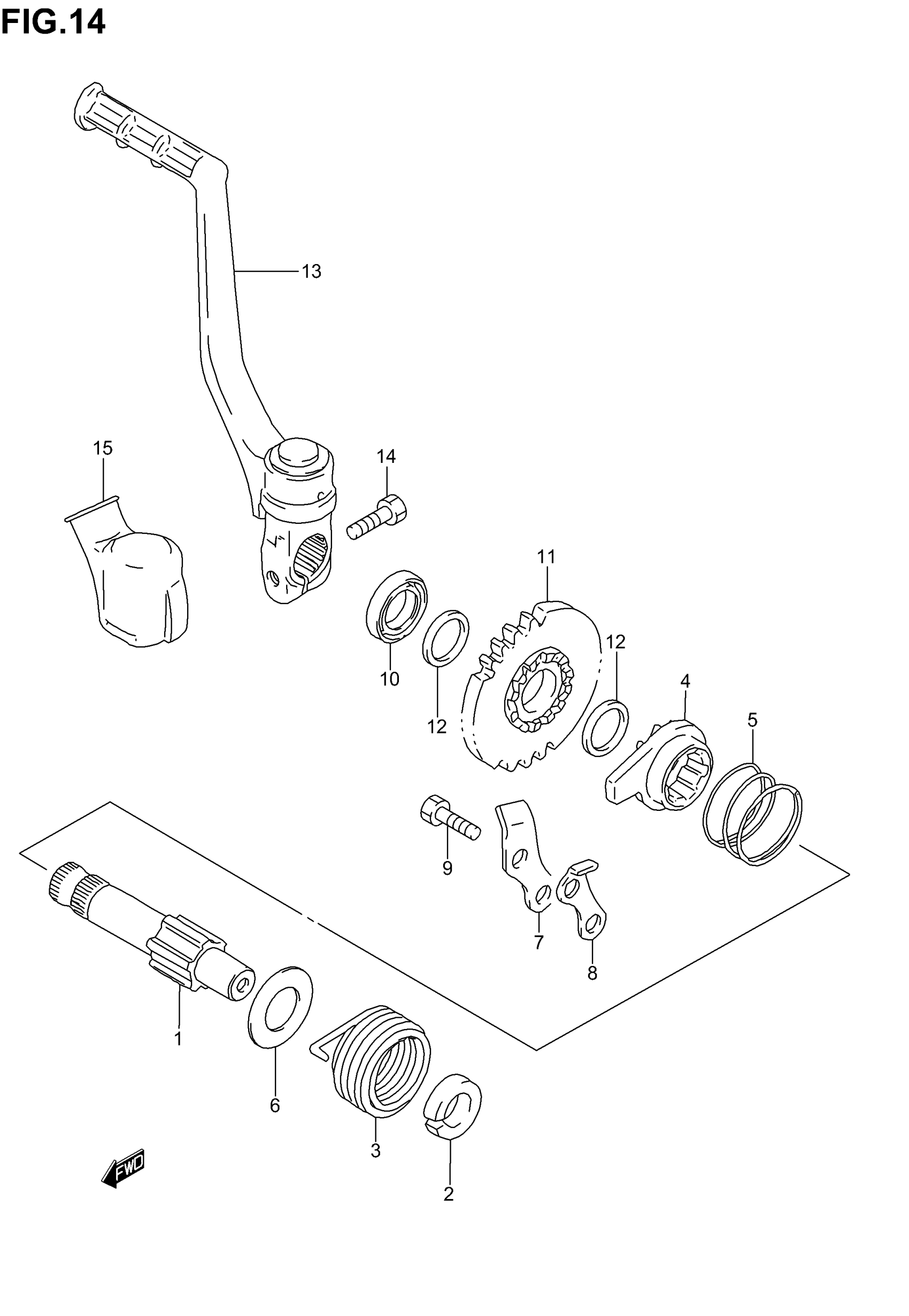

Suzuki RM85 (2006) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER | MODEL K2/K3 This part replaces 26211-02B03.

26211-02B04

$109.53

1

SHAFT, KICK STARTER | MODEL K4/K5/K6

26211-02B04

$109.53

2

GUIDE, SPRING

26221-02B00

$3.67

3

SPRING

09448-35007

$11.72

4

STARTER, KICK This part replaces 26231-02B01.

26231-02B02

$40.83

5

SPRING

09440-31002

$2.01

6

PLATE

08211-12301

$2.06

7

GUIDE, KICK STARTER

26232-40200

$7.98

8

STOPPER, KICK STARTER

26233-40201

$6.23

9

BOLT This part replaces 01500-06123.

01500-0612A

$1.80

10

OIL SEAL (14X24X6) This part replaces 09285-14001.

09285-14002

$15.23

11

GEAR, KICK DRIVE (NT:26)

26241-02B41

$94.70

12

WASHER (14X20X1.0)

09181-14139

$2.66

13

LEVER, KICK STARTER

26300-03B00

$109.42

14

BOLT

01500-06207

$1.99

15

COVER,JOINT This part replaces 26341-20401.

26341-20402

$9.60
