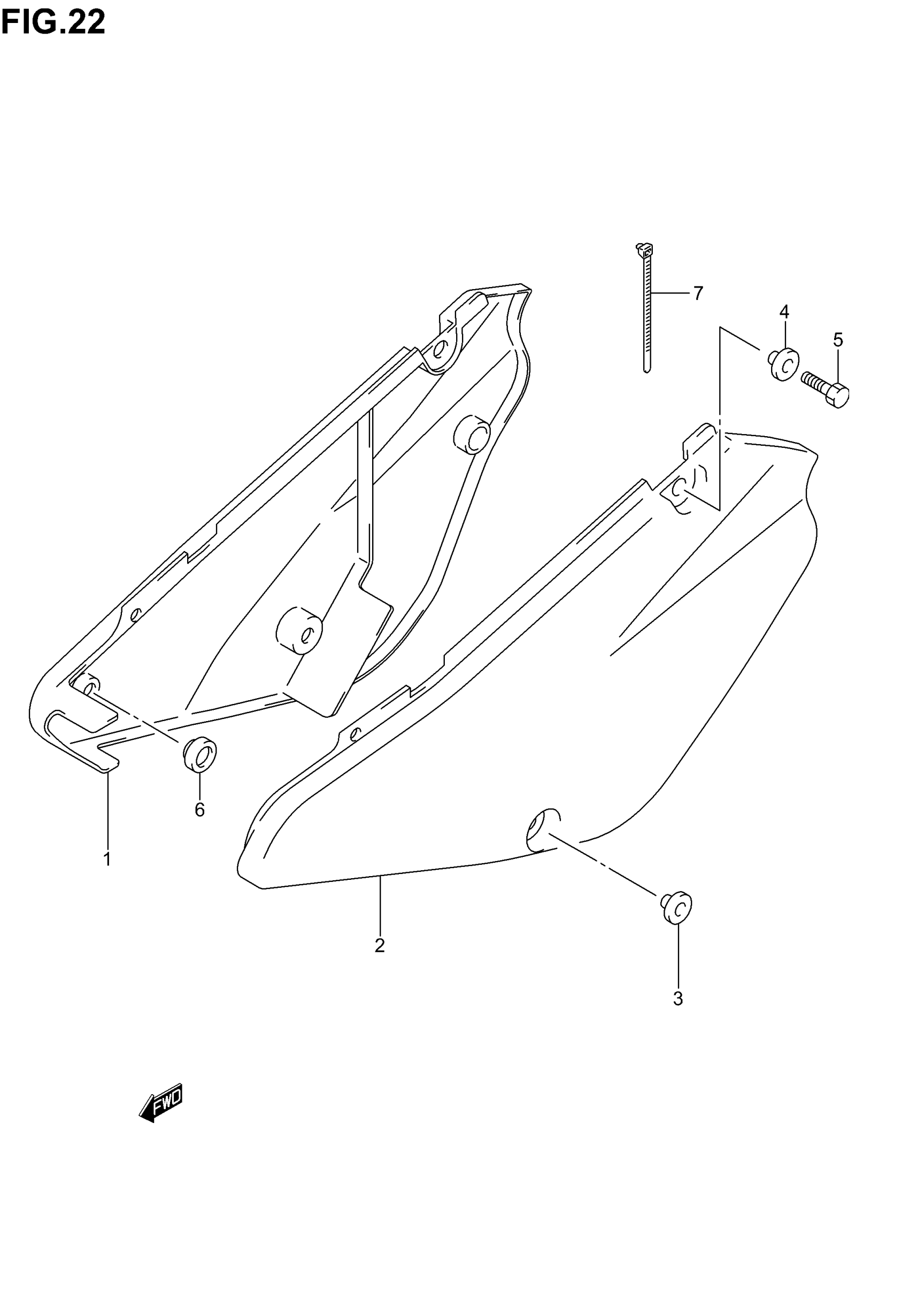

Suzuki RM85 (2006) FRAME COVER Diagram

#

Description

Price

1

COVER, FRAME RH (YELLOW) | MODEL K2

47111-03B70-YU1

$84.87

1

COVER, FRAME RH (WHITE) | MODEL K3/K4/K5/K6

47111-03B70-30H

$82.82

2

COVER, FRAME LH (YELLOW) | MODEL K2

47211-03B70-YU1

$86.48

2

COVER, FRAME LH (WHITE) | MODEL K3/K4/K5/K6

47211-03B70-30H

$84.37

3

WASHER, LOWER

09169-06010

$2.61

4

WASHER, REAR

09160-06066

$1.89

5

BOLT, REAR

09103-06234

$2.17

6

CUSHION, RH FRONT

09321-10024

$4.40

7

CLAMP

09407-15401

$2.92
