Description

Price

1

CRANKCASE SET | MODEL K2/K3 This part replaces 11300-03851.

11300-03852

Unavailable

1

CRANKCASE SET | MODEL K4

11300-03852

Unavailable

1

CRANKCASE SET | MODEL K5/K6; Includes Item(s) 2 - 5 This part replaces 11300-03820.

11300-03822

$886.08

2

GASKET, CRANKCASE | MODEL K2/K3 This part replaces 11481-02B41.

11481-03B00

$17.72

2

GASKET, CRANKCASE | MODEL K4/K5/K6

11481-03B00

$17.72

3

PIN

04211-09129

$1.64

4

BOLT (L:40)

09103-06241

$3.45

5

BOLT (L:50)

09103-06244

$2.80

6

BOLT (10X95)

09103-10345

$8.48

7

BOLT (8X102)

09103-08296

$6.41

8

NUT

09159-08067

$5.03

8A

NUT (M10)

09159-10060

$1.86

9

PLUG, DRAIN This part replaces 01500-08163.

01500-0816B

$2.50

10

GASKET (8.2X14X1)

09168-08016

$1.64

11

VALVE ASSY,REED | Includes Item(s) 12 - 15 This part replaces 13150-02B50.

13150-02B51

$161.65

12

STOPPER, REED VALVE

13152-02B50

$8.91

13

VALVE, REED

13153-02B40

$14.91

14

SCREW This part replaces 02112-03063.

02112-0306B

$1.61

15

LOCK WASHER This part replaces 08321-21033.

08321-2103B

$1.78

16

BOLT This part replaces 09103-06235.

01547-06207

$2.01

17

PIPE,INTAKE This part replaces 13110-03B00.

13110-03B01

$65.55

18

CLAMP

09402-42208

$7.48

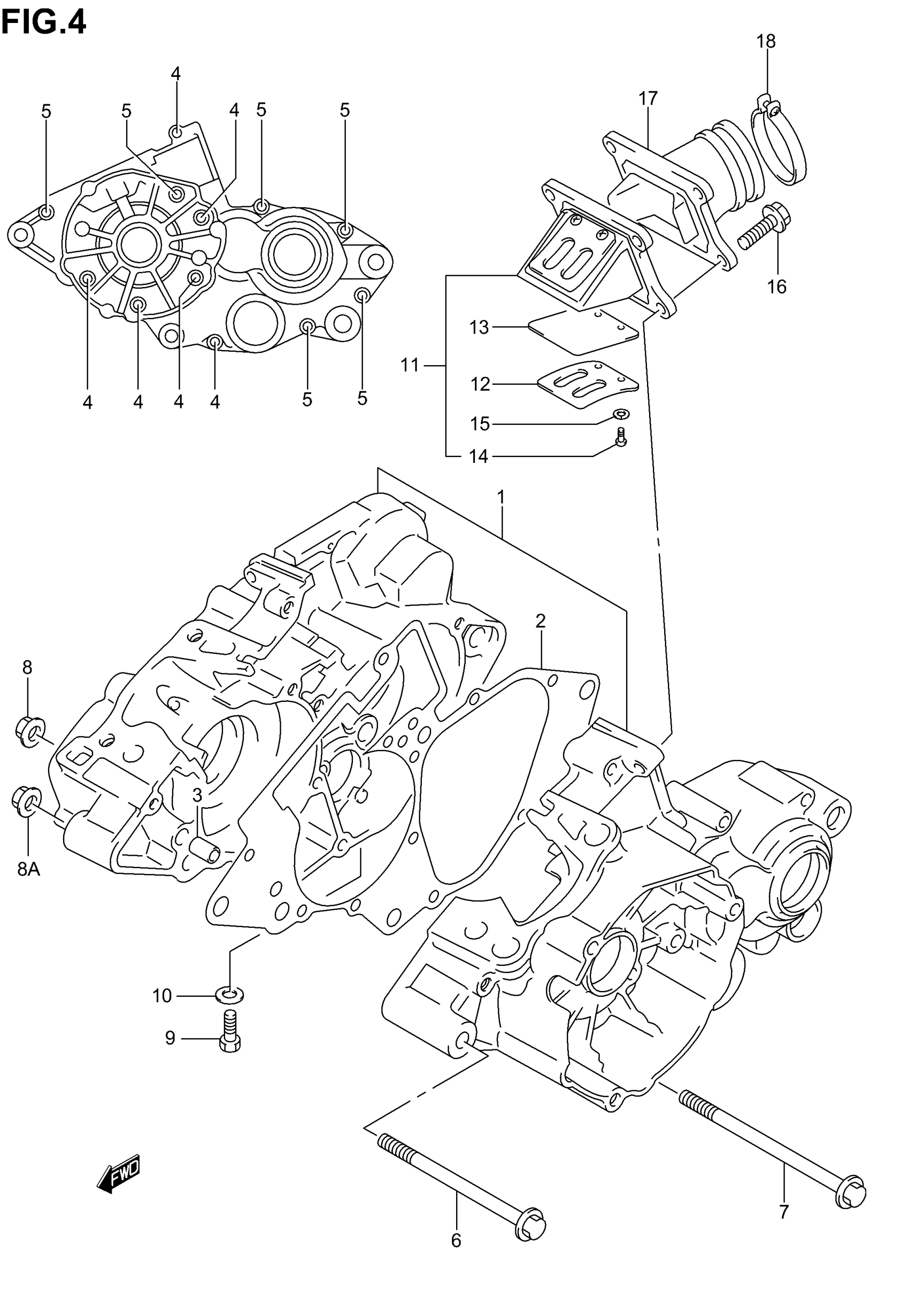

Suzuki RM85 (2006) CRANKCASE Diagram
