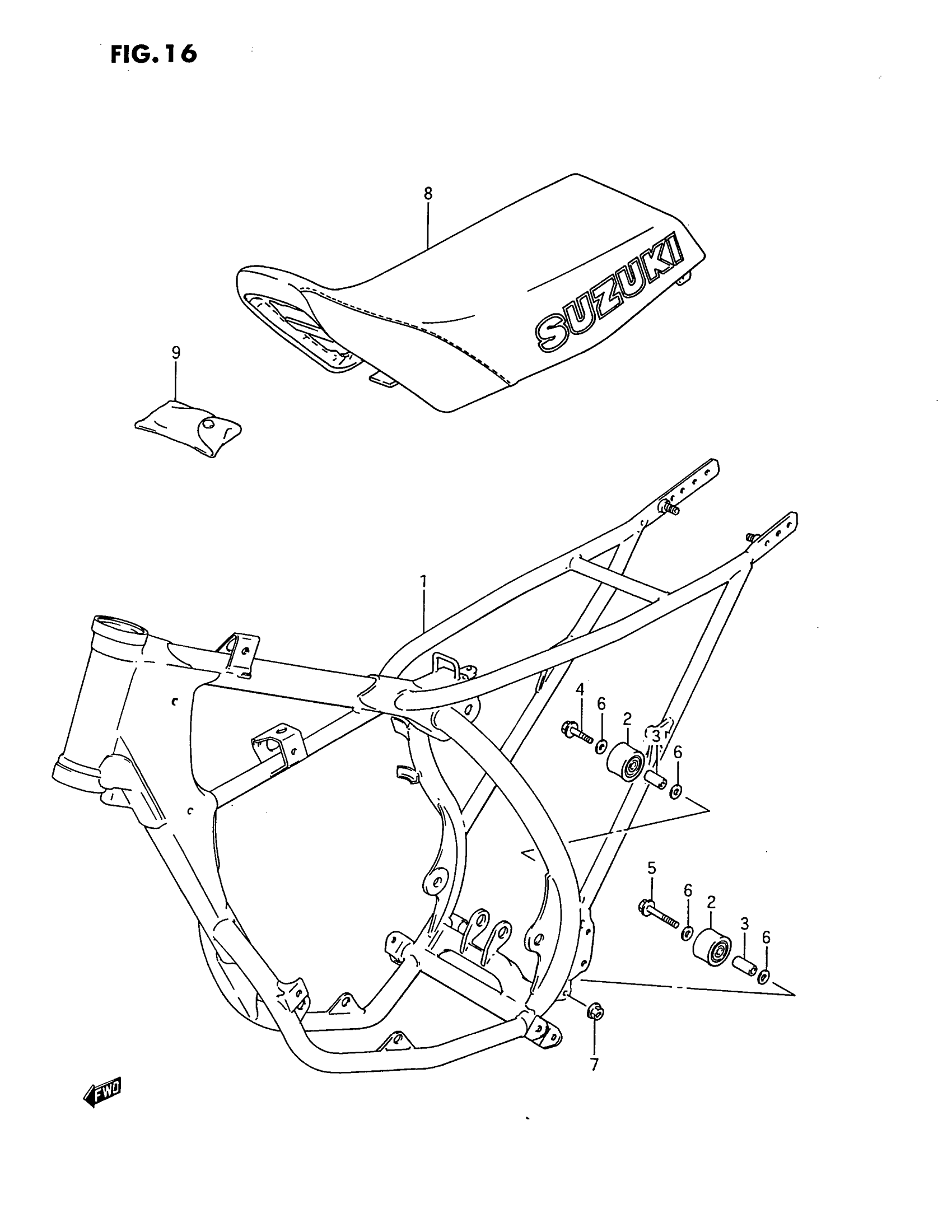

Suzuki RM80S (1995) FRAME - SEAT (MODEL G) Diagram

#

Description

Price

1

FRAME SET (BLUE) This part replaces 41100-02B00-19F.

41100-02880-19F

Unavailable

2

ROLLER, CHAIN CONTROL

43910-22A10

Unavailable

3

SPACER This part replaces 09180-08119.

09180-08156

$6.35

4

BOLT, UPPER

09103-08083

$3.50

5

BOLT, LOWER

09103-08043

$2.95

6

WASHER, GEAR SHAFT This part replaces 08211-08161.

09181-08167

$2.04

7

NUT

08319-31087

$2.38

8

SEAT ASSY (BLUE) This part replaces 45100-02B00-54G.

45100-02B21-4UZ

Unavailable

9

TOOL ASSY This part replaces 09800-00310.

09800-21059

Unavailable

10

REFER TO FIG.17 (E-3) FOR

SPECIAL NOTE

Unavailable
