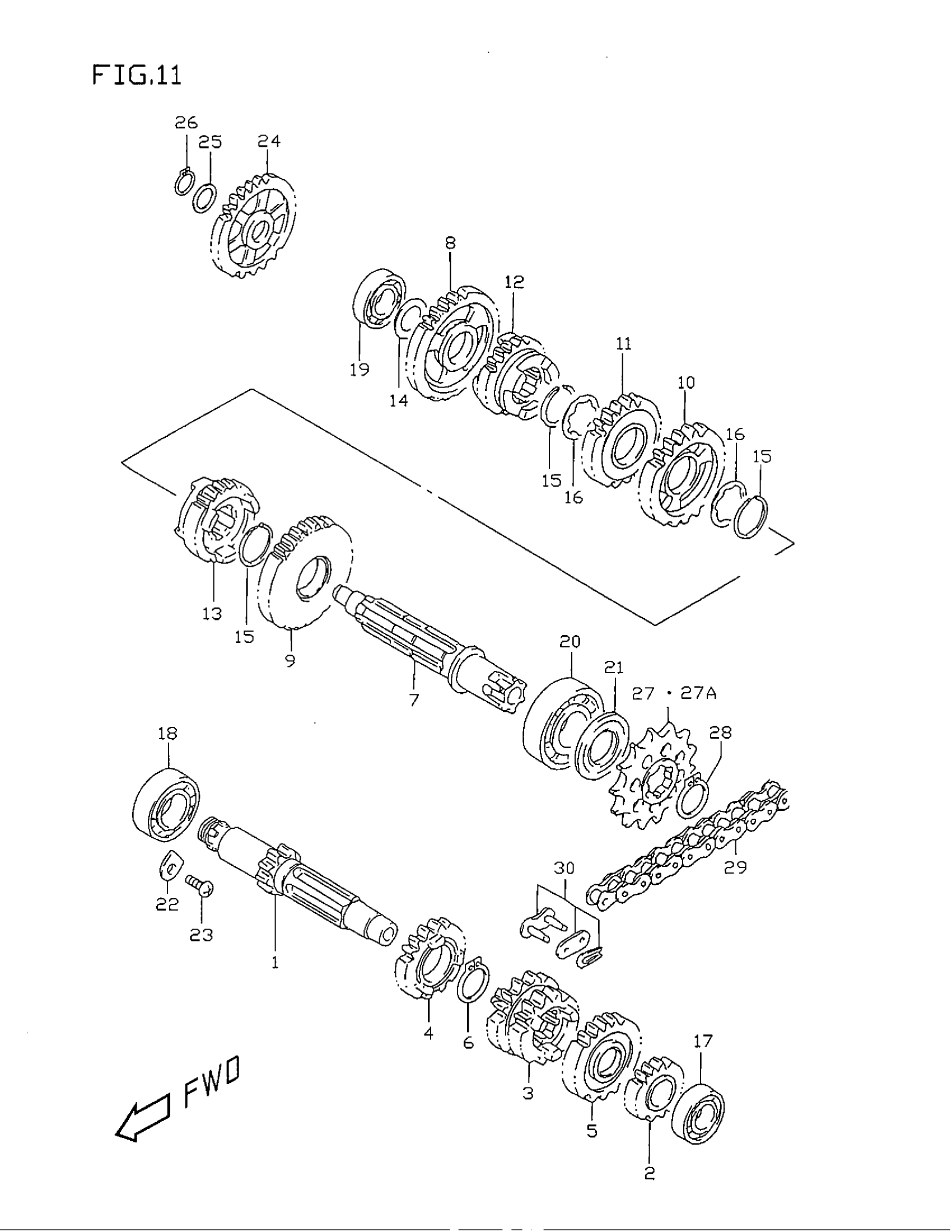

Suzuki RM80 (1999) TRANSMISSION Diagram

#

Description
Price

1

SHAFT,CNTR (NT:11) | MODEL T/V This part replaces 24121-02B40.

24121-02B42

$168.40

1

SHAFT,CNTR (NT:11) | MODEL W/X This part replaces 24121-02B41.

24121-02B42

$168.40

2

GEAR, 2ND DRIVE (NT:15) | MODEL T/V This part replaces 24221-02B01.

24221-02B02

$40.16

2

GEAR, 2ND DRIVE (NT:15) | MODEL W/X

24221-02B02

$40.16

3

GEAR, 3/4 DRIVE (NT:14/15) | MODEL T/V This part replaces 24231-02B02.

24231-02B03

$122.53

3

GEAR, 3/4 DRIVE (NT:14/15) | MODEL W/X

24231-02B03

$122.53

4

GEAR, 5TH DRIVE (NT:18) | MODEL T/V This part replaces 24251-02B01.

24251-02B02

$90.88

4

GEAR, 5TH DRIVE (NT:18) | MODEL W/X

24251-02B02

$90.88

5

GEAR, 6TH DRIVE (NT:22)

24260-02B01

$98.98

6

CIRCLIP

09380-20009

$2.06

7

DRIVESHAFT

24131-02B01

$194.00

8

GEAR, 1ST DRIVEN (NT:28) | MODEL T/V This part replaces 24311-02B01.

24311-02B02

$127.82

8

GEAR, 1ST DRIVEN (NT:28) | MODEL W/X

24311-02B02

$127.82

9

GEAR, 2ND DRIVEN (NT:29) | MODEL T/V This part replaces 24321-02B01.

24321-02B02

Unavailable

9

GEAR, 2ND DRIVEN (NT:29) | MODEL W/X

24321-02B02

Unavailable

10

GEAR, 3RD DRIVEN (NT:22) | MODEL T/V This part replaces 24331-03B00.

24331-03B02

$94.70

10

GEAR, 3RD DRIVEN (NT:22) | MODEL W/X This part replaces 24331-03B01.

24331-03B02

$94.70

11

GEAR, 4TH DRIVEN (NT:20) | MODEL T/V This part replaces 24341-03B00.

24341-03B02

$67.35

11

GEAR, 4TH DRIVEN (NT:20) | MODEL W/X This part replaces 24341-03B01.

24341-03B02

$67.35

12

GEAR, 5TH DRIVEN (NT:21) | MODEL T/V This part replaces 24351-02B01.

24351-02B02

$98.98

12

GEAR, 5TH DRIVEN (NT:21) | MODEL W/X

24351-02B02

$98.98

13

GEAR, 6TH DRIVEN (NT:23) | MODEL T/V This part replaces 24361-02B02.

24361-02B03

$54.44

13

GEAR, 6TH DRIVEN (NT:23) | MODEL W/X

24361-02B03

$54.44

14

WASHER, SUB T/M IDLE, LH | MODEL T This part replaces 08211-15261.

09181-15195

$2.68

14

WASHER (15X26X1.0) | MODEL V/W/X

09181-15195

$2.68

15

CIRCLIP

09380-22006

$2.88

16

WASHER (22.1X27X0.5)

09167-22011

$3.06

17

BEARING, LH

08113-62027

$13.39

18

BEARING, RH (20X42X12)

09262-20106

$31.90

19

BEARING, RH

08113-62027

$13.39

20

BEARING, LH (20X47X14)

09262-20069

$21.64

21

OIL SEAL (20X35X5) This part replaces 09283-20038.

09283-20057

$5.70

22

RETAINER, BEARING

24741-21A00

$2.80

23

SCREW This part replaces 02112-06123.

02112-0612A

$1.46

24

GEAR, KICK IDLE (NT:24)

26260-02B40

$86.48

25

WASHER | MODEL T

08221-12205

$2.50

25

WASHER (12X20X0.5) | MODEL V/W/X

09181-12158

$2.31

26

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.82

27

SPROCKET, ENGINE (NT:14)

27511-20421

$26.32

27A

SPROCKET, ENGINE (NT:13) | OPT

27511-20401

$30.37

28

CIRCLIP

09380-20009

$2.06

29

CHAIN, DRIVE (DID428DS,118L) | Includes Item(s) 30 This part replaces 27600-02B40-118.

27600-05350

$204.13

30

JOINT SET, CHAIN This part replaces 27620-02B40.

27620-03B00

$12.62
