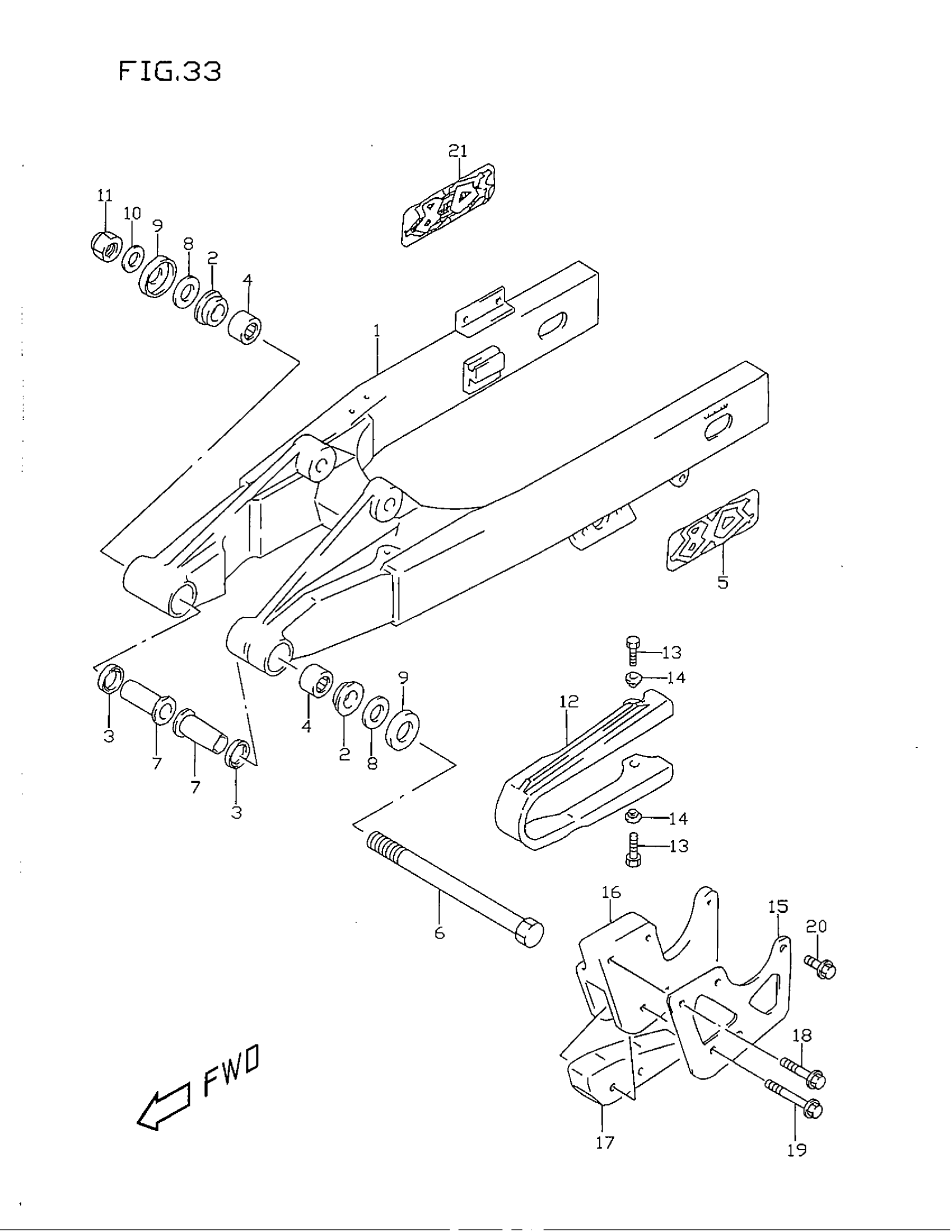

Find the part on the Rear Swinging ARM diagram for your 1999 Suzuki RM80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1999 Suzuki RM80 Rear Swinging ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 4

61000-03B21

1
Out of stock

2

BUSHING

61261-02B00

2
Out of stock

3

.SEAL,OIL (17X24X3) This part replaces 09285-17001.

09285-17007

2
Out of stock

4

BEARING (17X24X30)

09263-17038

2
Out of stock

5

EMBLEM, SWINGING ARM | MODEL T

68381-03B30-E9J

2
Out of stock

6

SHAFT, PIVOT

61211-02B40

1
Out of stock

7

SPACER, PIVOT

61251-02B40

2
Out of stock

8

THRUST WASHER

08211-12282

2
Out of stock

9

COVER SWGARM PIVOT This part replaces 61262-03B00.

61262-03B01

2
Out of stock

10

WASHER This part replaces 08322-01123.

08322-0112B

1
Out of stock

11

NUT This part replaces 08319-21128.

08319-2112A

1
Out of stock

12

BUFFER, CHAIN TOUCH DEFENSE

61273-02B20

1
Out of stock

13

BOLT This part replaces 01547-06163.

01547-0616B

2
Out of stock

14

WASHER

09169-06057

2
Out of stock

15

PLATE, GUIDE CHAIN OUTER

61342-02B40

1
Out of stock

16

GUIDE, CHAIN

61343-02B40

1
Out of stock

17

DEFENSE, CHAIN GUIDE

61348-02B20

1
Out of stock

18

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

2
Out of stock

19

BOLT This part replaces 01547-06403.

01547-0640B

2
Out of stock

20

BOLT This part replaces 01547-06163.

01547-0616B

1
Out of stock

21

EMBLEM, SWINGING ARM | MODEL V

68381-03B40-G7E

2
Out of stock
