1999 Suzuki RM80 Rear Master Cylinder Diagram

← All diagrams

Find the part on the Rear Master Cylinder diagram for your 1999 Suzuki RM80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

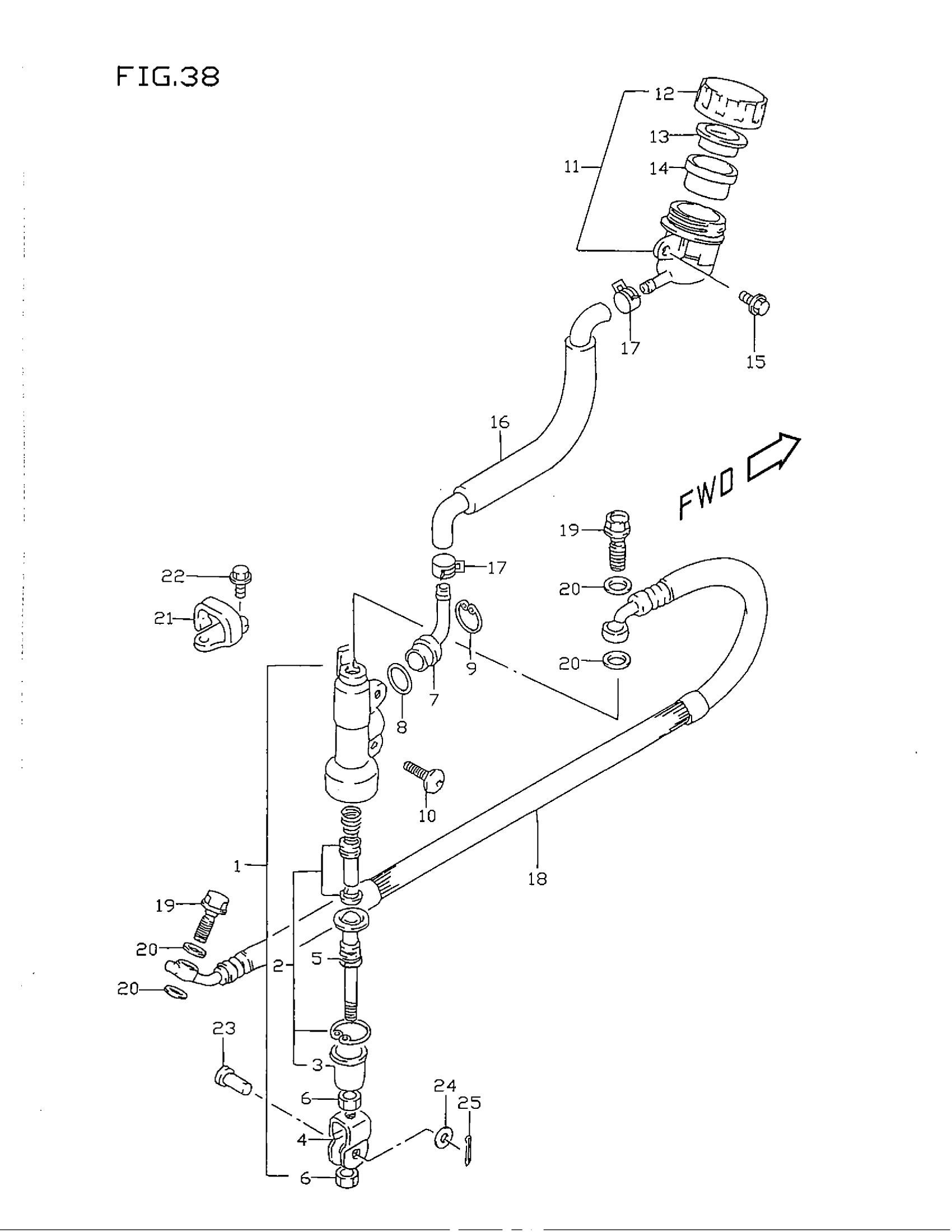

1999 Suzuki RM80 Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-02B40

1
Out of stock

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

1
Out of stock

3

.BOOT

69691-00A00

1

$5.44

In stock

4

YOKE

69692-00B21

1

$19.22

In stock

5

ROD, PUSH

69670-27A30

1

$29.60

In stock

6

NUT

69693-05A00

2

$2.16

In stock

7

CONNECTOR

69672-00B20

1

$7.00

In stock

8

O RING

69686-34200

1

$2.92

In stock

9

CIRCLIP

69674-00B20

1

$4.07

In stock

10

SCREW

09139-06030

2

$3.58

In stock

11

1

$85.27

In stock

12

CAP

69669-03D10

1

$25.55

In stock

13

PLATE

69668-00B20

1

$8.65

In stock

14

DIAPHRAGM

69667-00B20

1

$20.82

In stock

15

1

$1.31

In stock

16

HOSE, RESERVOIR TANK

69731-02B50

1

$40.73

In stock

17

CLAMP

69735-00B20

2
Out of stock

18

HOSE, REAR BRAKE

69480-02B41

1
Out of stock

19

BOLT (10X1.00X24) | MODEL T

09360-10017

2
Out of stock

19

2

$6.33

In stock

20

WASHER (10X15X1.5)

09161-10009

4
Out of stock

21

2

$6.97

In stock

22

SCREW This part replaces 02142-05103.

02142-0510B

4
Out of stock

23

PIN

09200-08048

1

$2.92

In stock

24

WASHER | MODEL T/V

09160-08074

1
Out of stock

24

1

$2.56

In stock

25

1

$1.31

In stock
