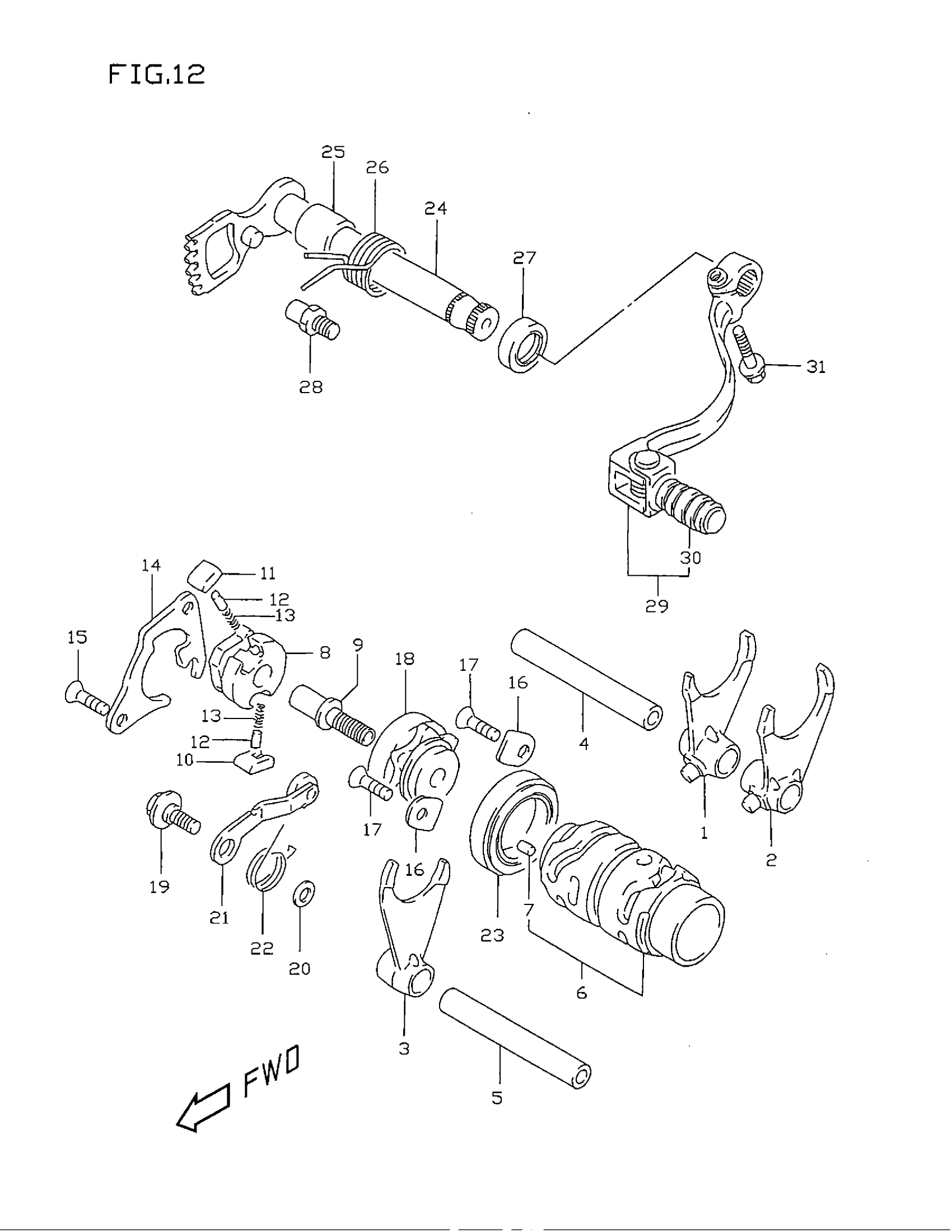

Suzuki RM80 (1999) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, NO.1

25211-02B41

$71.03

2

FORK, NO.2

25221-02B41

$71.03

3

FORK, NO.3

25231-02B40

$66.48

4

SHAFT, NO.1 (L:90) | MODEL T/V/W This part replaces 25411-02B40.

25411-02B41

Unavailable

4

SHAFT, NO.1 (L:90) | MODEL X

25411-02B41

Unavailable

5

SHAFT, NO.2 (L:60) | MODEL T/V/W This part replaces 25421-27C00.

25421-27C01

$20.82

5

SHAFT, NO.2 (L:60) | MODEL X

25421-27C01

$20.82

6

CAM | Includes Item(s) 7

25310-03B00

Unavailable

7

PIN (4X13.8)

04221-04089

$1.15

8

GEAR, GEAR SHIFT CAM DRIVEN | MODEL T This part replaces 25322-31301.

25322-31310

$30.40

8

GEAR, GEAR SHIFT CAM DRIVEN | MODEL V This part replaces 25322-31302.

25322-31310

$30.40

8

GEAR, GEAR SHIFT CAM DRIVEN | MODEL W/X

25322-31310

$30.40

9

PIN, SHIFT CAM DRIVEN GEAR | MODEL T This part replaces 25313-27C01.

25313-27C02

$14.73

9

PIN, SHIFT CAM DRIVEN GEAR | MODEL V/W/X

25313-27C02

$14.73

10

PAWL, GEAR SHIFT NO.1

25323-34201

$6.91

11

PAWL, GEAR SHIFT NO.2

25324-34201

$7.11

12

PIN (5X8)

09261-05003

$1.69

13

SPRING

09440-04003

$1.52

14

LIFTER, PAWL

25331-27C00

$27.32

15

SCREW This part replaces 02122-06123.

02122-0612A

$1.46

16

RETAINER

24741-20A00

$2.80

17

SCREW This part replaces 02122-06123.

02122-0612A

$1.46

18

PLATE, STOPPER

25381-28C20

Unavailable

19

BOLT, SHIFT CAM STOPPER

09111-06041

$2.73

20

WASHER

08211-06121

$1.62

21

STOPPER, CAM

25350-27C30

$18.03

22

SPRING

09448-18020

Unavailable

23

BEARING, RH

08140-69050

$33.14

24

SHAFT, GEAR SHIFTING

25510-28C30

$108.60

25

SPACER (14X20X17.5)

09180-14016

$3.70

26

SPRING

09444-26013

$2.94

27

OIL SEAL (14X22X6)

09283-14006

$6.23

28

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.28

29

LEVER ASSY,GEAR | Includes Item(s) 30 This part replaces 25600-02B43.

25600-02B44

Unavailable

30

RUBBER,GEAR SHI This part replaces 25652-27C00.

25652-27C01

$25.80

31

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.80
