1995 Suzuki RM80 Rear Swinging Arm Diagram

← All diagrams

Find the part on the Rear Swinging Arm diagram for your 1995 Suzuki RM80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

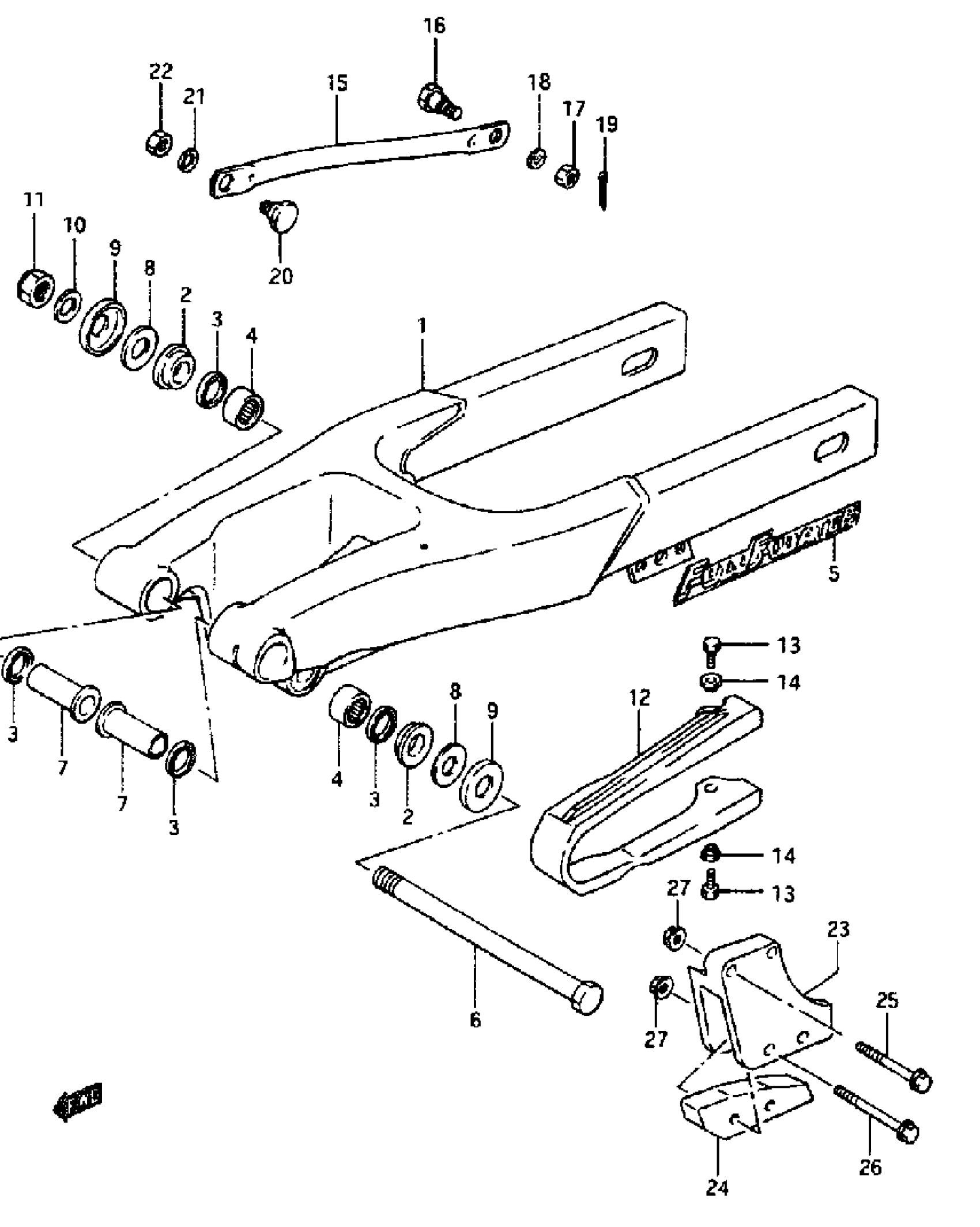

1995 Suzuki RM80 Rear Swinging Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGING ARM ASSY, REAR

61000-02B13

1
Out of stock

2

BUSHING

61261-02B00

2

$25.08

In stock

4

.BEARING (17X24X25) This part replaces 09263-17020.

09263-17053

2
Out of stock

5

EMBLEM

68381-03410-97J

2
Out of stock

6

SHAFT. PIVOT

61211-02B00

1
Out of stock

7

SPACER

61251-02B00

2
Out of stock

8

1HRUST WASHER

08211-12282

2

$2.88

In stock

9

2

$12.62

In stock

10

WASHER This part replaces 08322-11128.

08322-01127

1
Out of stock

11

1

$3.66

In stock

12

BUFFER, CHAIN DEFENSE

61273-02B20

1

$44.05

In stock

13

2

$2.10

In stock

14

WASHER

09169-06057

2

$3.14

In stock

15

TORQUE LINK, REAR (SILVER)

64311-02B00-13L

1
Out of stock

16

BOLT This part replaces 09111-08040.

09111-08031

1
Out of stock

17

NUT

09140-08008

1

$1.55

In stock

18

1

$2.28

In stock

19

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock

20

BOLT. FRONT

09111-08064

1

$3.79

In stock

21

WASHER This part replaces 08322-11088.

08322-01087

1
Out of stock

22

1

$2.31

In stock

23

CHAIN, GUIDE

61342-02B02

1
Out of stock

24

OEFENSE, CHAIN GUIDE

61348-02B20

1

$20.77

In stock

25

2

$2.92

In stock

26

2

$2.86

In stock

27

NUT

08319-31067

4

$2.18

In stock
